ENGINE
2.17
CRANKSHAFT RUNOUT
Lubricate the bearings and clamp the crankshaft securely in the holding fixture. Refer to the illustrations below.
1. If the runout of the crankshaft is more than .004
″
(.100mm) on the MAG side, or .006
″
(.150mm) on the PTO
side, the crankshaft must be replaced.

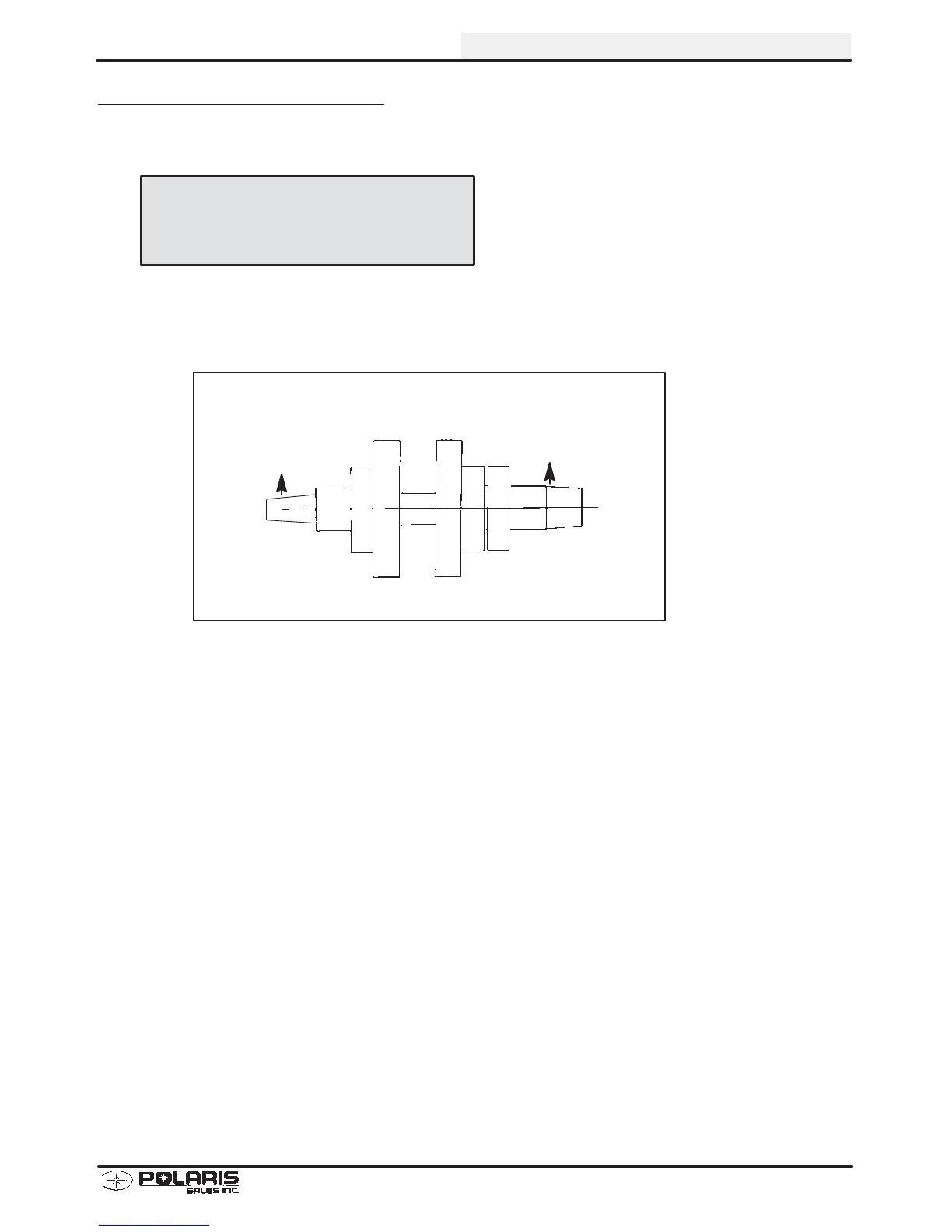

Crankshaft Alignment Fixture
PN 2870569
HIGH .004″ (.1mm)
HIGH .006″ (.150mm)
MAG Side PTO Side
