GENERAL INFORMATION
1.13
VEHICLE INSPECTION

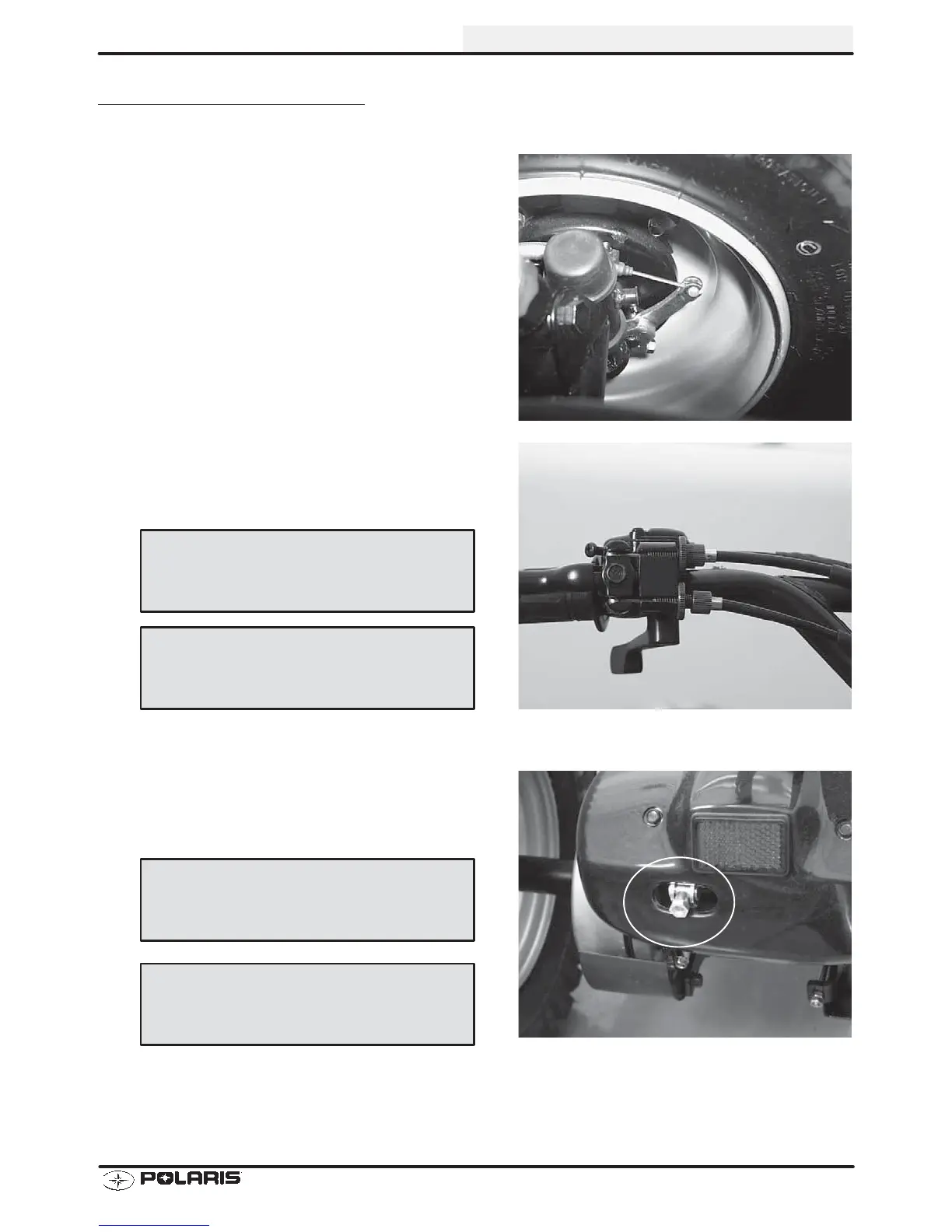

Front Brake
1. Each front brake has a cable connected to the right
hand brake lever.
2. Loosen the adjuster nuts at the right hand brake
lever. Turn the cable adjuster until the proper brake
setting is achieved. Tighten nuts.
Rear Brake
3. The rear brake is operated using the left hand brake
lever. To adjust the rear brake setting, turn the rear
brake adjuster nut until brake is set to specification.
Front Brake Lever Free Play:
.40-.80I (10-20 mm)
Front Brake Lever Travel:
50 cc= 1 1/8I (28 mm)
90 cc = 1 3/4″ (45 mm)
Rear Brake Lever Free Play:
.40-.80I (10-20 mm)
Rear Brake Lever Travel:
50 cc= 1 1/8I (28 mm)
90 cc = 2 1/2″ (65 mm)
