GENERAL INFORMATION
1.16

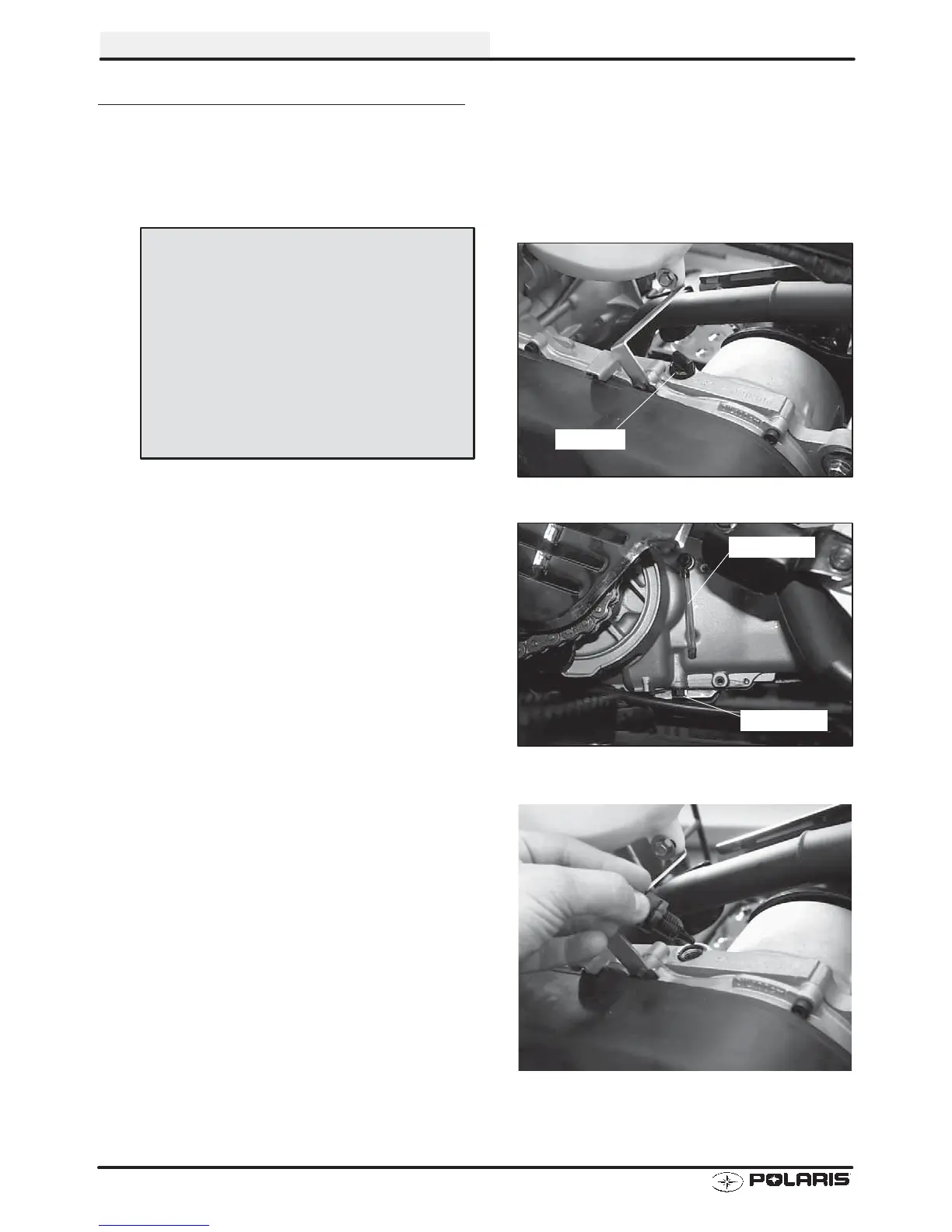

TRANSMISSION LUBRICATION
The transmission lubricant level should be checked and changed in accordance with the maintenance schedule.
Be sure vehicle is level before proceeding.
Check vent hose to be sure it is routed properly and unobstructed.
Follow instructions on following pages to check / change transmission lubricant.
To check the level:
1. Remove fill plug and wipe clean.
2. Reinstall fill plug completely, remove and check the
level. Add the proper lubricant as required to bring
level into operating range. Operating range is 1/2″
(12.7 mm) below the tip of the dipstick.
To change lubricant:
1. Place a drain pan beneath the transmission oil drain
plug area.
2. Remove the drain plug and wipe the magnetic end
clean to remove accumulated metallic filings.
3. After the oil has drained completely, install a new
sealing washer and install the drain plug. Torque to
14 ft. lbs. (19.3 Nm).
4. Add the proper lubricant through the fill plug hole.
Do not overfill.
5. Check for leaks.
Fill Plug
Specified Lubricant:
Polaris Premium Synthetic Gearcase Lubricant
PN 2871477 (Gallon) PN 2871478 (12 oz..)
Capacity:
10 fl.oz. / 300 ml. . . . .
Operating Range
: 1/2
″
(12.7 mm) below
tip of dipstick.
Drain Plug Torque:
14 ft. lbs. (19.4 Nm)
TRANSMISSION SPECIFICATIONS
Vent Hose
Drain Plug
