BODY / STEERING / SUSPENSION
4.15

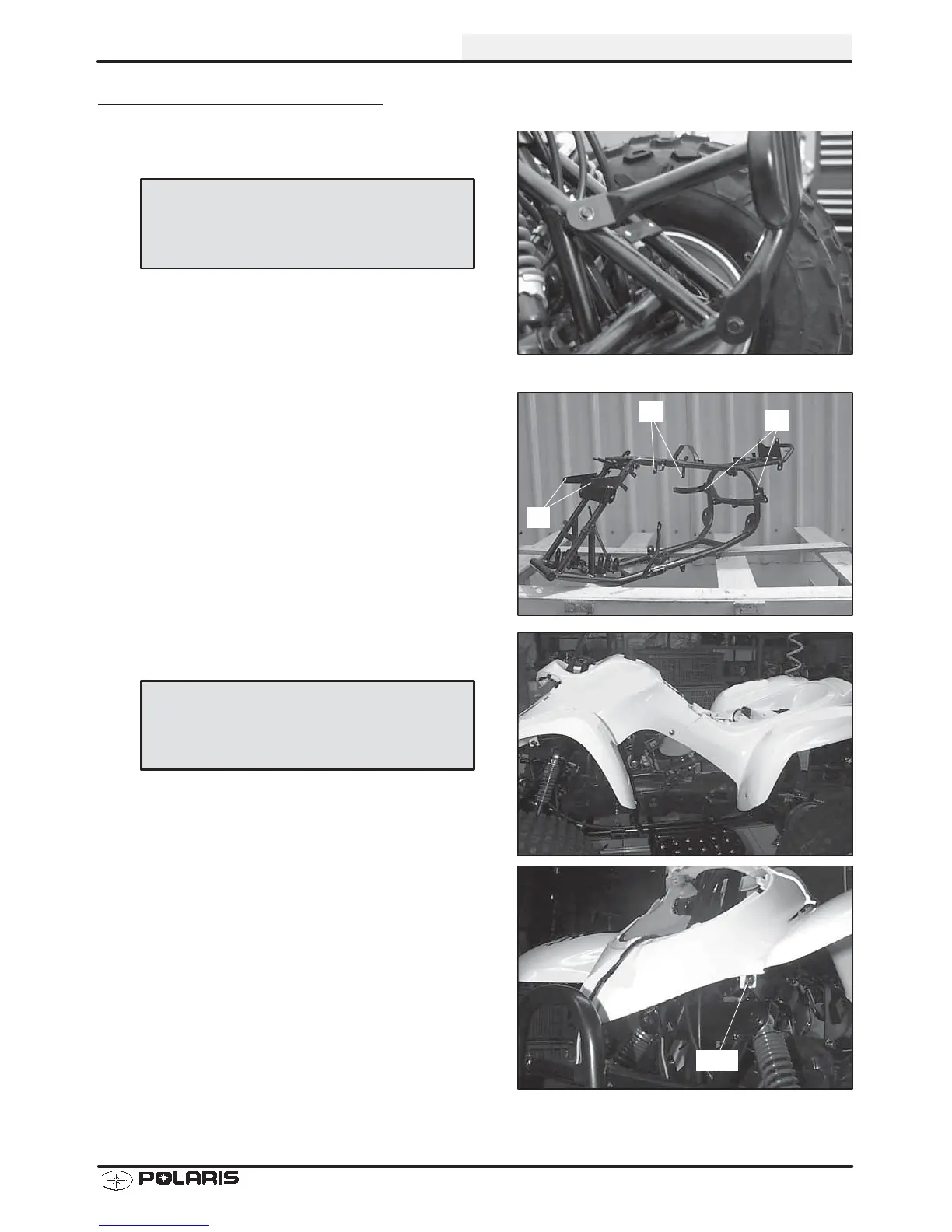

FRONT AND REAR CAB
1. Install the bumper to the frame and tighten
mounting bolts to specification.
2. There are three (3) mounting positions for the
front and rear cab to the frame. The front cab is
mounted on positions 1 and 2. The rear cab is
mounted on position 3.
3. Install the front and rear cab to the frame and
tighten the mounting bolts to specification.
4. The front cab mounts to the front bracket of the
frame.
Front Bumper Mounting
Bolt Torque:
103 in.lbs. (12 Nm)
1
2
3
Cab Mounting Bolt Torque:
103 in.lbs. (12 Nm)
Bolt
