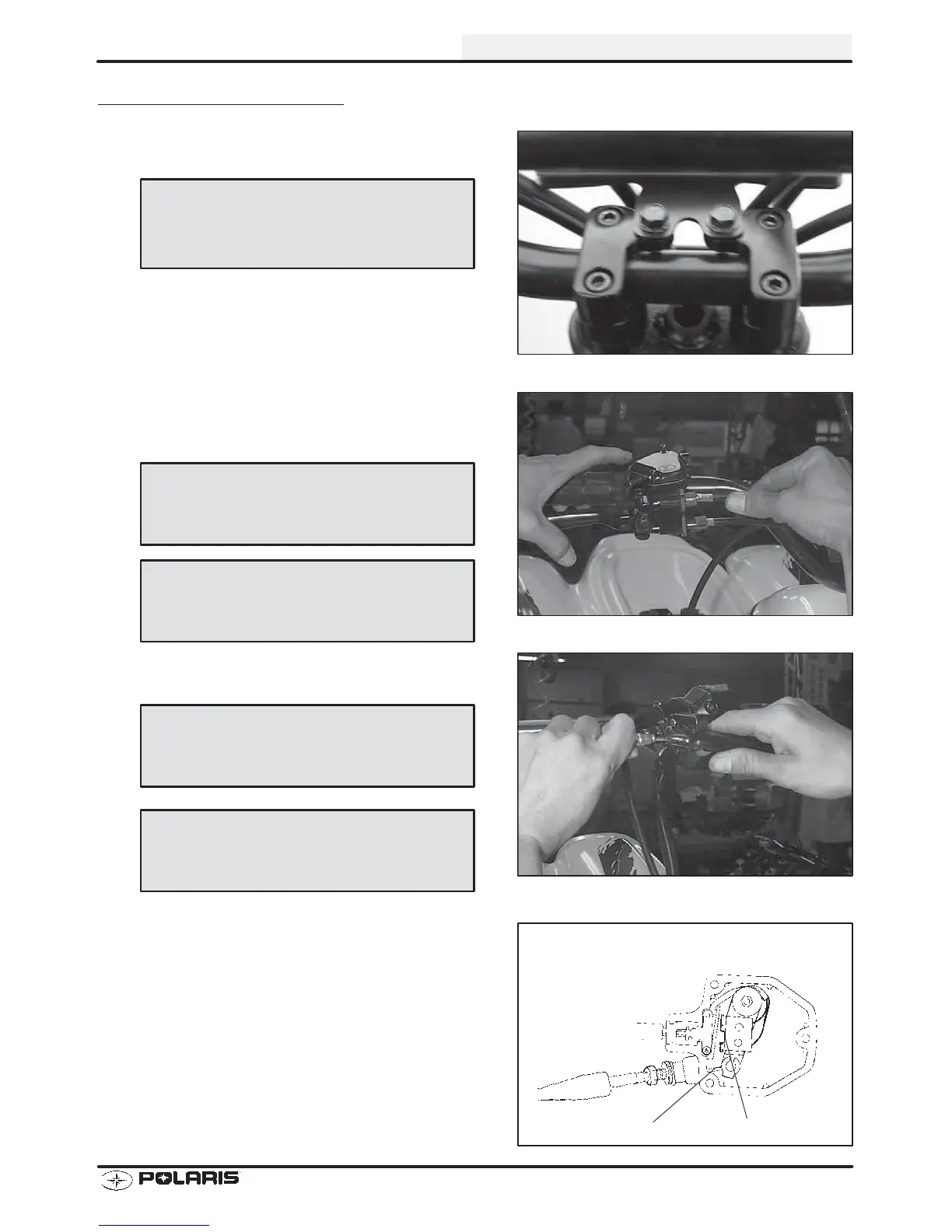

Polaris 2001 50 SCRAMBLER - Handlebar Adjustment and Cable Installation; HANDLEBAR MOUNTING; FRONT AND REAR BRAKE CABLE INSTALLATION; THROTTLE CABLE INSTALLATION

BODY / STEERING / SUSPENSION
4.17
HANDLEBAR, CONT.
3. Mount the handlebar on the steering post and
tighten the clamp bolts to specification.
4. Install the right side and left side front brake cables
as shown.
5. Install the rear brake cable.
6. Open the throttle ETC switch box and lightly
grease the throttle cable (A). Install the throttle
able.
Handlebar Mounting Clamp
Bolt Torque:
84 in.lbs. (10 Nm)
Front Brake Lever Free Play:
.40-.80I (10-20 mm)
Front Brake Lever Travel:
50 cc= 1 1/8I (28 mm)
90 cc = 1 3/4″ (45 mm)
Rear Brake Lever Free Play:
.40-.80I (10-20 mm)
Rear Brake Lever Travel:
50 cc= 1 1/8I (28 mm)
90 cc = 2 1/2″ (65 mm)
Electronic Throttle Control (ETC) Switch
ETC Micro
Switch Button
A
(Cast Aluminum Throttle Housing)
