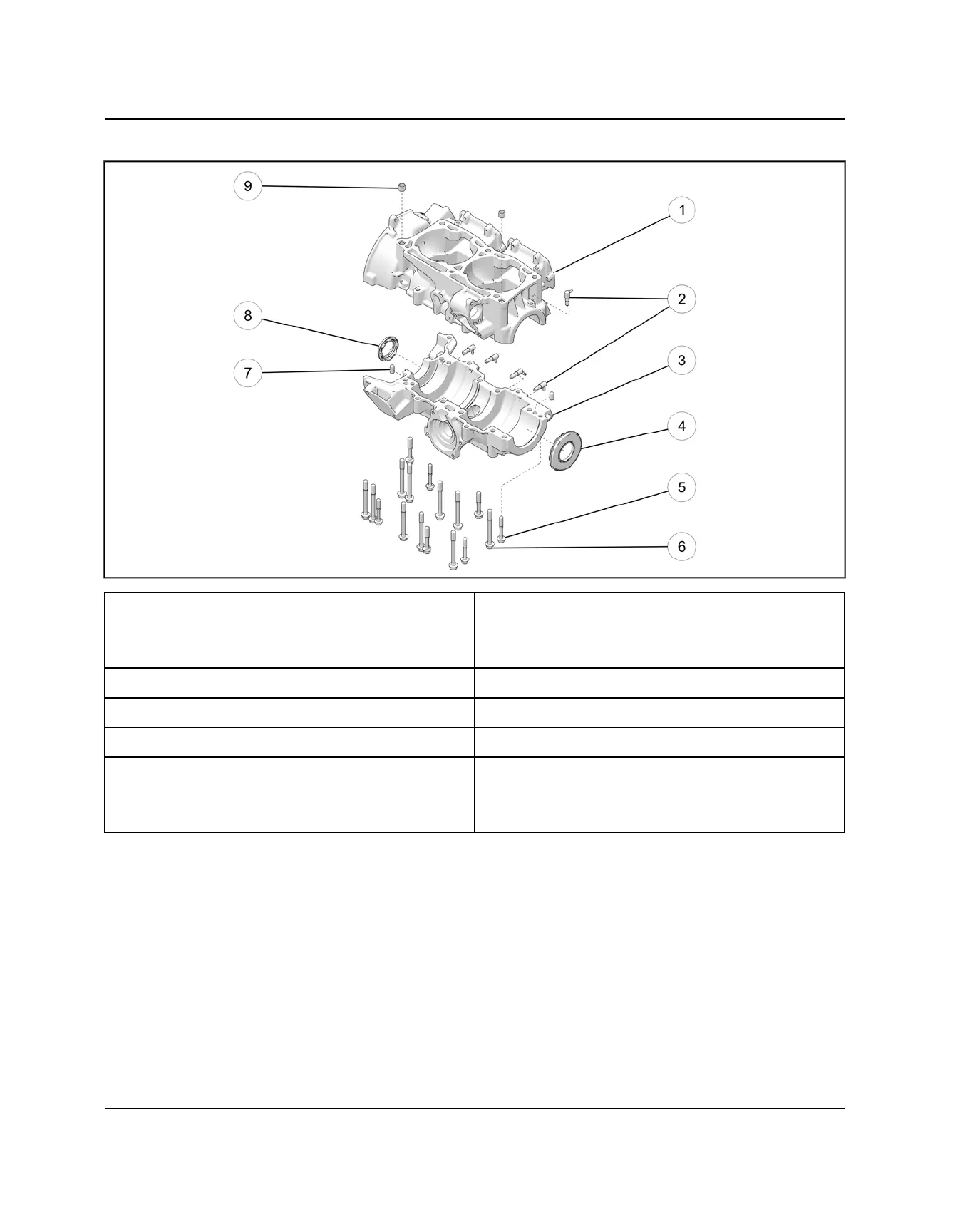

CRANKCASE ASSEMBLY VIEW
q
Upper Crankcase
y
Crankcase Fasteners (M8 x 1.25 x 80)
24 ft-lbs (32 N·m)
Apply VES oil under fastener head and to threads prior
to installation.
w
Check Valve / Oil Fitting
u
Dowel Pin
e
Lower Crankcase i
Flanged Seal
r
Flanged Seal
o
Hollow Dowel
t
Crankcase Fasteners (M8 x 1.25 x 50)
24 ft-lbs (32 N·m)
Apply VES oil under fastener head and to threads prior
to installation.
