Polaris 850 MATRYX SWITCHBACK ASSAULT 146 2021 - Stator; Flywheel Assembly View

3.60
9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.

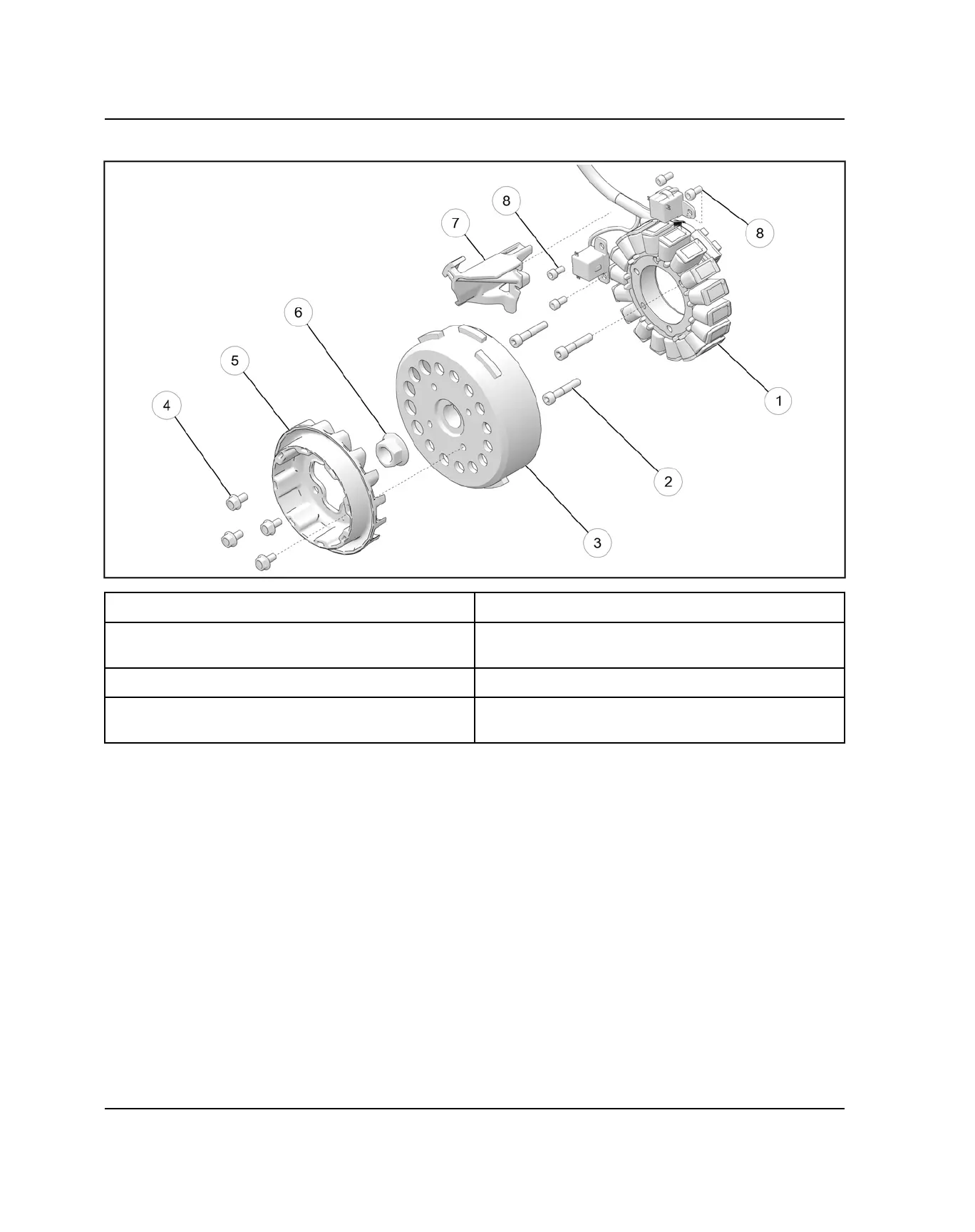

STATOR / FLYWHEEL ASSEMBLY VIEW
q
Stator
t
Recoil Starter Pulley
w
Stator Fasteners (M6 x 1.0 x 32)
12 ft-lbs (16 N·m)
y
Flywheel Flange Nut (M14 x 1.50)
90 ft-lbs (122 N·m)
e
Flywheel
u
Stator Wire Retainer
r
Recoil Starter Pulley Fasteners
10 ft-lbs (13 N·m)
i
CPS Fasteners (M5 x 0.8 x 10)
53 in-lbs (6 N·m)
ENGINE / COOLING / EXHAUST
