10.80
9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.

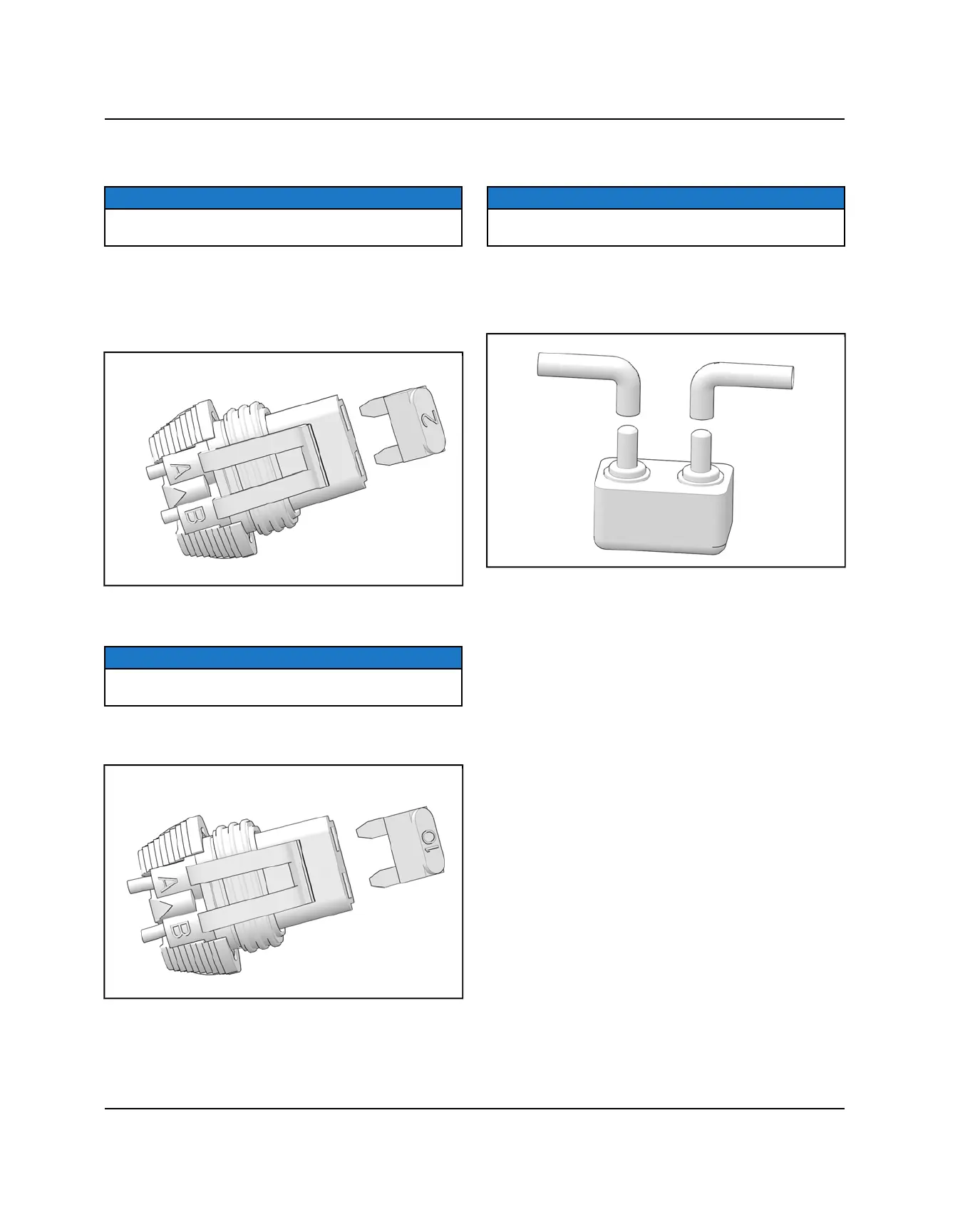

FUSES / DIODES / RESISTORS
BATTERY POWER FUSE
NOTICE
Applies only to models equipped with a battery / electric
start wire harness.
The battery / electric start wire harness features a 2 amp
battery power fuse. The fuse protects KEY ON power at
the ignition switch. KEY ON power supplies battery
voltage to the display and GPS puck when the ignition
key is in the ON position.
BATTERY TENDER FUSE
NOTICE
Applies only to models equipped with a battery / electric
start wire harness.
The battery / electric start wire harness features a 10
amp battery tender fuse.
CIRCUIT BREAKER
NOTICE
Applies only to models equipped with a battery / electric
start wire harness.
A 20 amp circuit breaker is connected in series with the
battery power circuit. The circuit breaker will open if there
is a short in the circuit. The circuit breaker will reset after
it is allowed to cool.
BATTERY / ELECTRICAL
