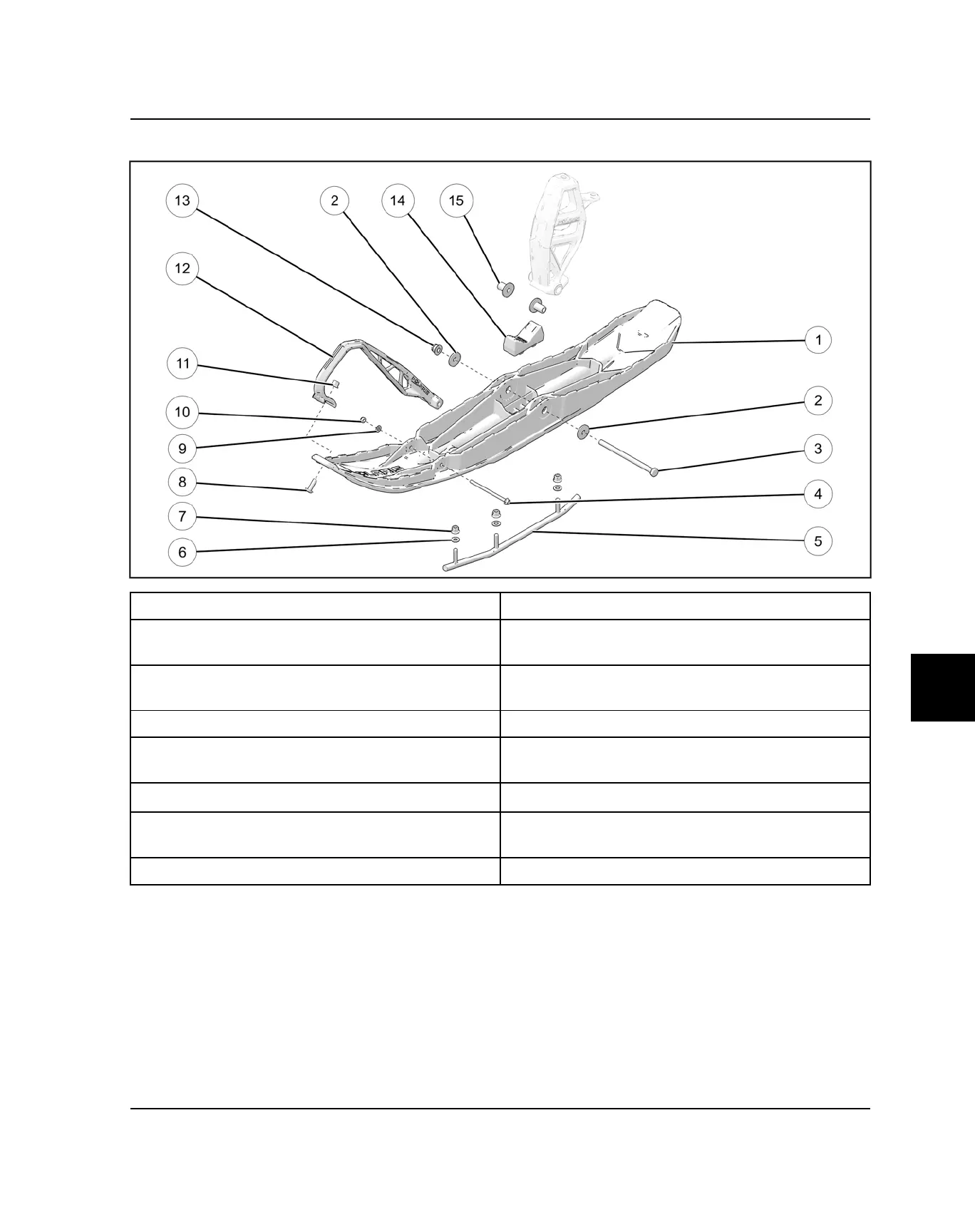

SKI ASSEMBLY VIEW
q
Ski
o
Washer
w
Washer
a
Nut
6 ft-lbs (8 N·m)
e
Ski to Spindle Fastener
s
Nut
8 ft-lbs (11 N·m)
r
Ski Toe Fastener
d
Ski Toe
t
Carbide
f
Nut
37 ft-lbs (50 N·m)
y
Washer
g
Rubber Ski Stop
u
Nut
8 ft-lbs (11 N·m)
h
Bushing
i
Ski Toe Fastener
