TWO PIECE THROTTLE CONTROL
INSTALLATION

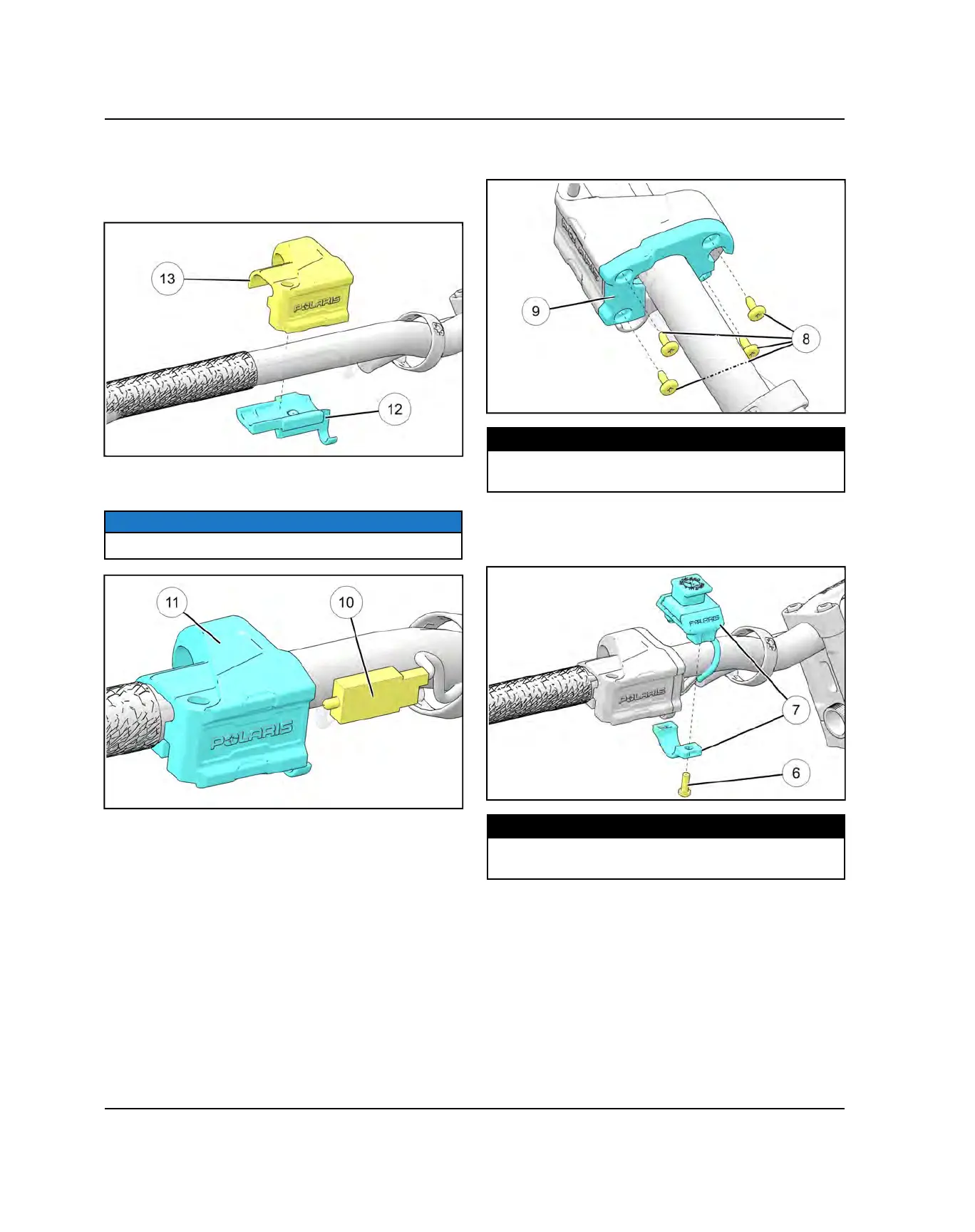

1. Install the throttle blocks onto the handlebar by sliding
the lower block
d
and upper block
f
together.
2. Install the throttle release switch
a
into the throttle
block
s
.
NOTICE
Make sure the switch is properly oriented.
3. Install the throttle block cover
o
and throttle block
cover screws
i
. Torque fasteners to specification.
TORQUE
Throttle Cover Screws:
6 in-lbs (0.7 N·m)
4. Install or reposition the stop switch assembly
u
and
install the screw
y
into the auxiliary stop switch
block. Torque fastener to specification.
TORQUE
Auxiliary Stop Switch Mount Screw:
20 in-lbs (2.3 N·m)
