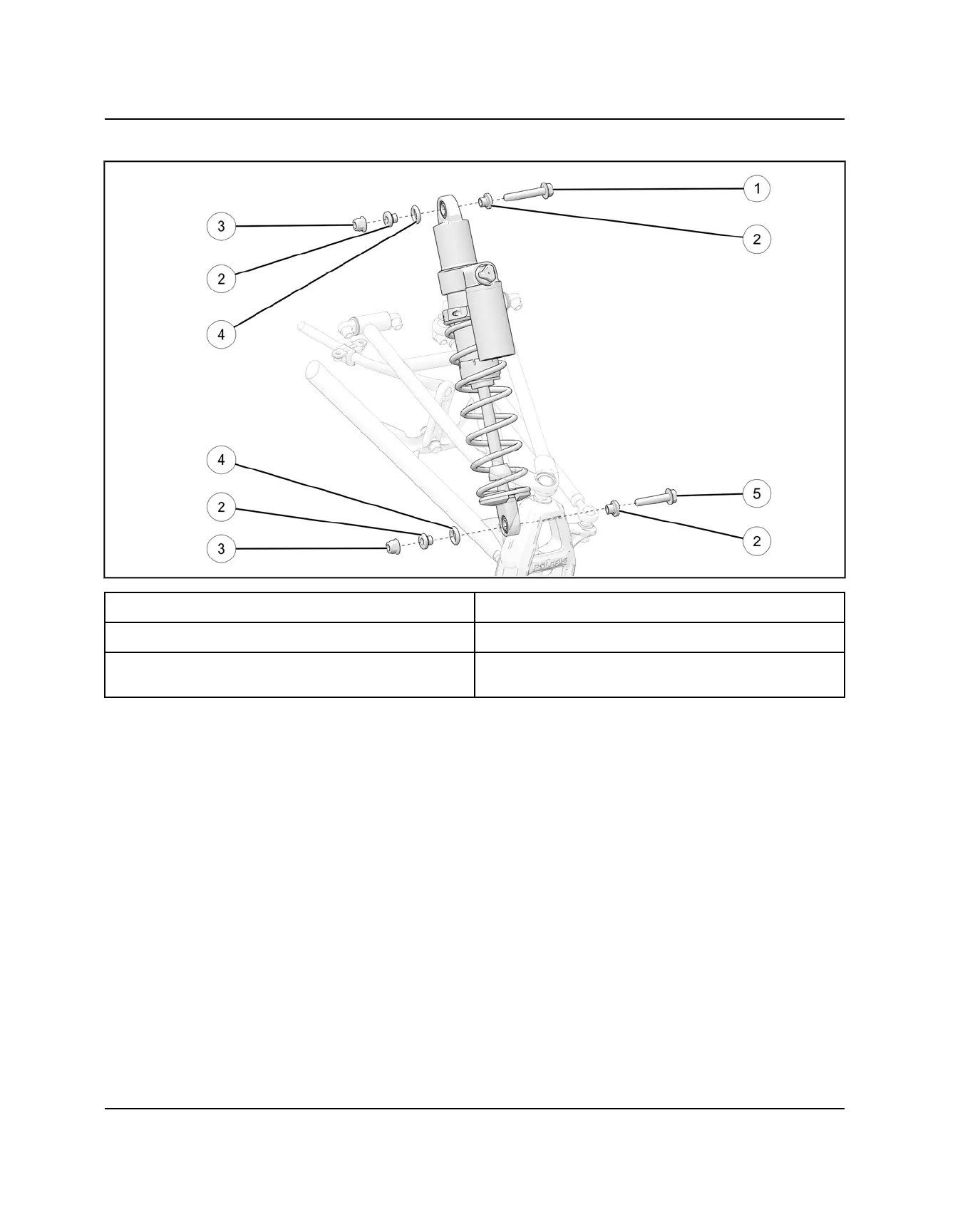

FRONT SHOCK MOUNTING ASSEMBLY VIEW - SWITCHBACK ASSAULT 146
q
Upper Mounting Fastener
r
O-ring
w
Bushing
t
Lower Mounting Fastener
e
Nut
37 ft-lbs (50 N·m)
