Polaris 850 MATRYX SWITCHBACK ASSAULT 146 2021 - Left Side Panel Assembly View

9.16
9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.

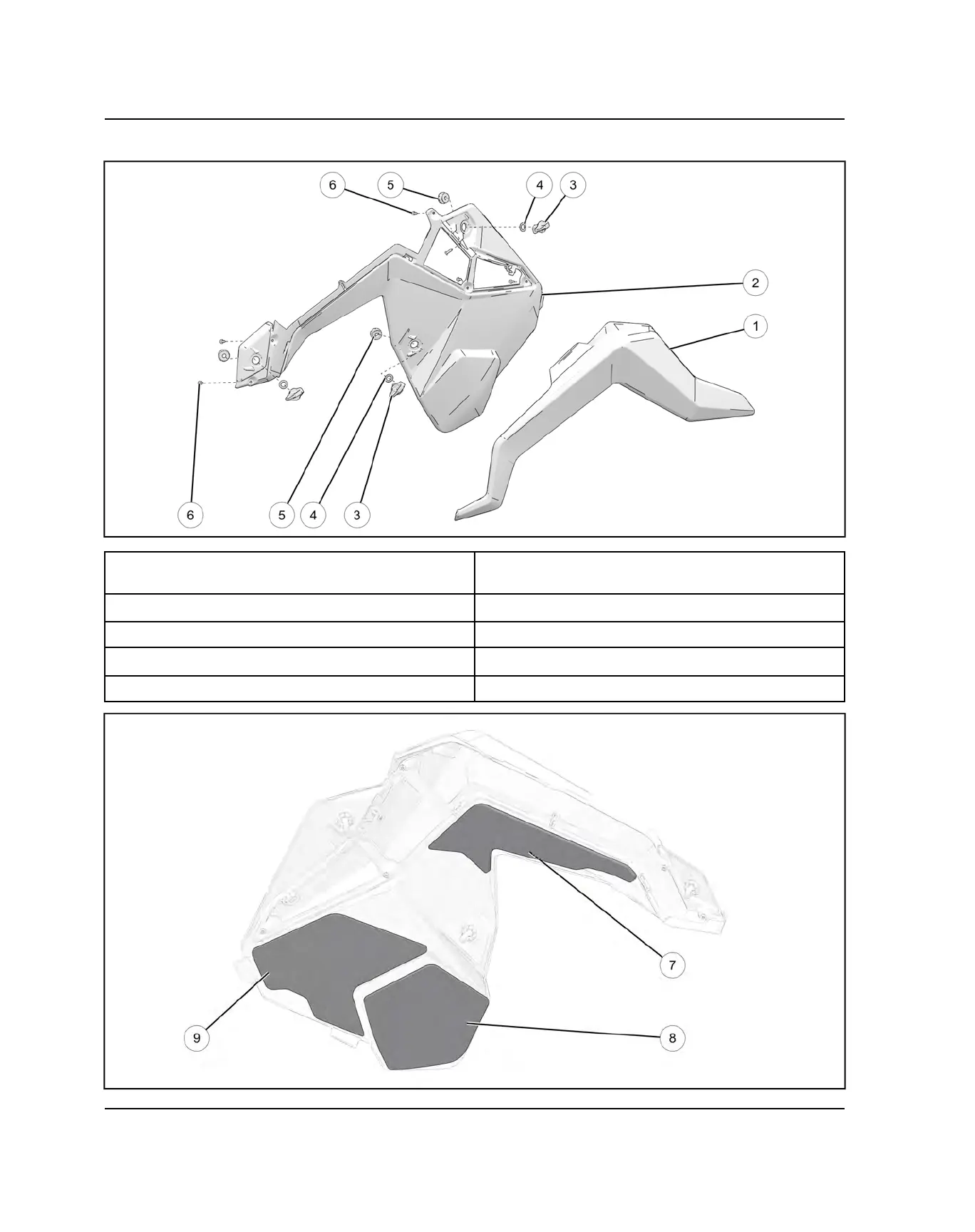

LEFT SIDE PANEL ASSEMBLY VIEW
q
LH Side Panel Trim
y
Side Panel Trim Fasteners
10 in-lbs (1.1 N·m)
w
LH Side Panel
u
LH Front Upper Side Panel Foam
e
1/4 Turn Latch
i
LH Rear Lower Side Panel Foam
r
Washer
o
LH Rear Upper Side Panel Foam
t
Latch Grommet
CHASSIS
