STANDARD INSTRUMENT CLUSTER
STANDARD INSTRUMENT CLUSTER
OVERVIEW
For units equipped with the standard instrument cluster,
reference the owner’s manual for software, display
setting, and user information.

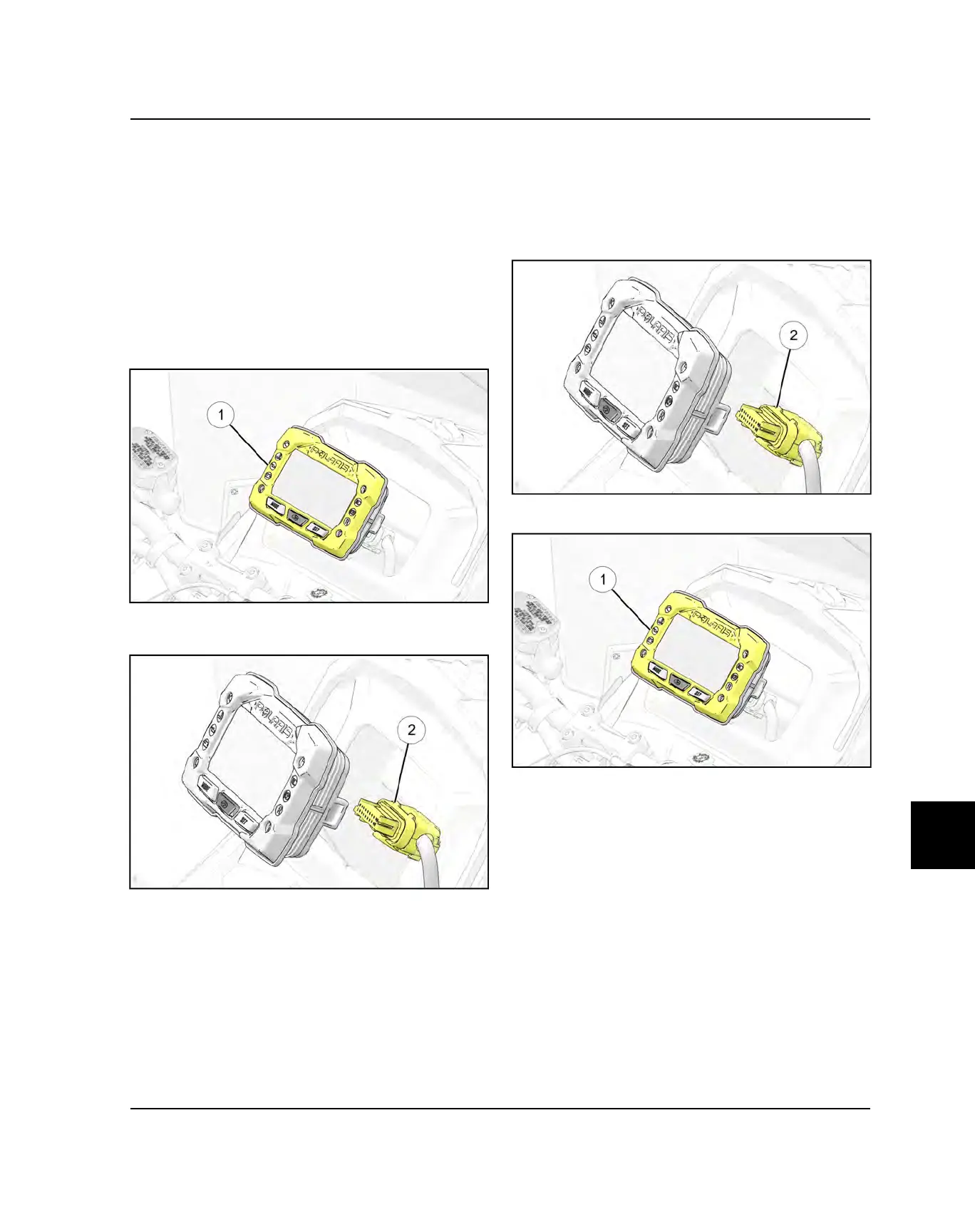

STANDARD INSTRUMENT CLUSTER
REMOVAL
1. Carefully remove the instrument cluster
q
from the
display door.
2. As the instrument cluster is removed, disconnect the
instrument cluster connector
w
.
STANDARD INSTRUMENT CLUSTER
INSTALLATION
1. Carefully position the instrument cluster near its
installed position and connect the instrument cluster
connector
w
.
2. Install the instrument cluster
q
into the display door.
