Polaris 850 MATRYX SWITCHBACK ASSAULT 146 2021 - Driven Clutch

7
9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
7.25
DRIVEN CLUTCH

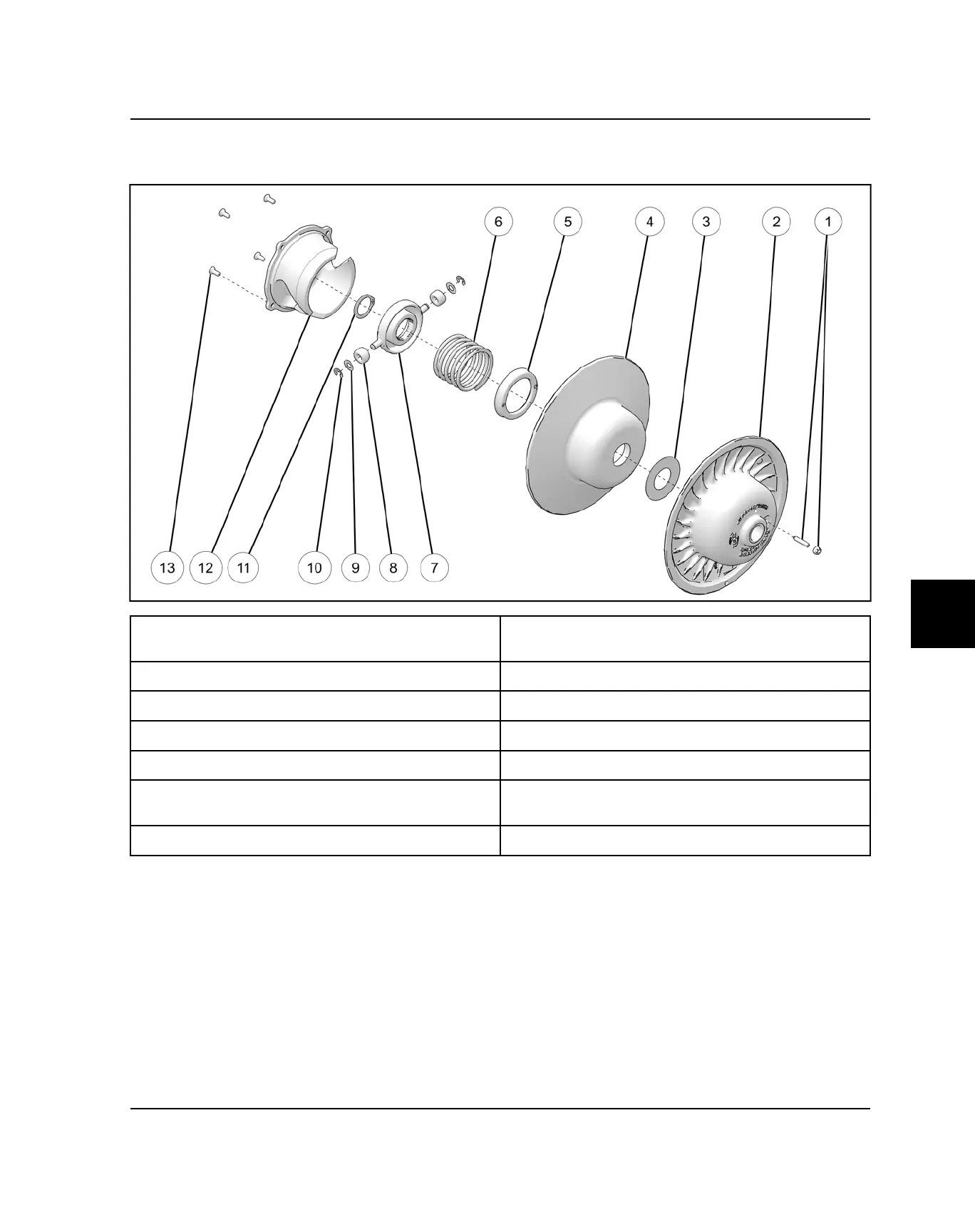

DRIVEN CLUTCH ASSEMBLY VIEW - TEAM LWT
q
Belt Deflection Screw
145 in-lbs (16 N·m)
i
Roller
w
Stationary Sheave
o
Washer
e
Deflection Spacer
a
Retaining E-Ring
r
Moveable Sheave s
Snap Ring
t
Spring Cup
d
Helix
y
Spring
f
Helix Fasteners
110 in-lbs (12 N·m)
u
Spider
PVT SYSTEM
