9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
3.145

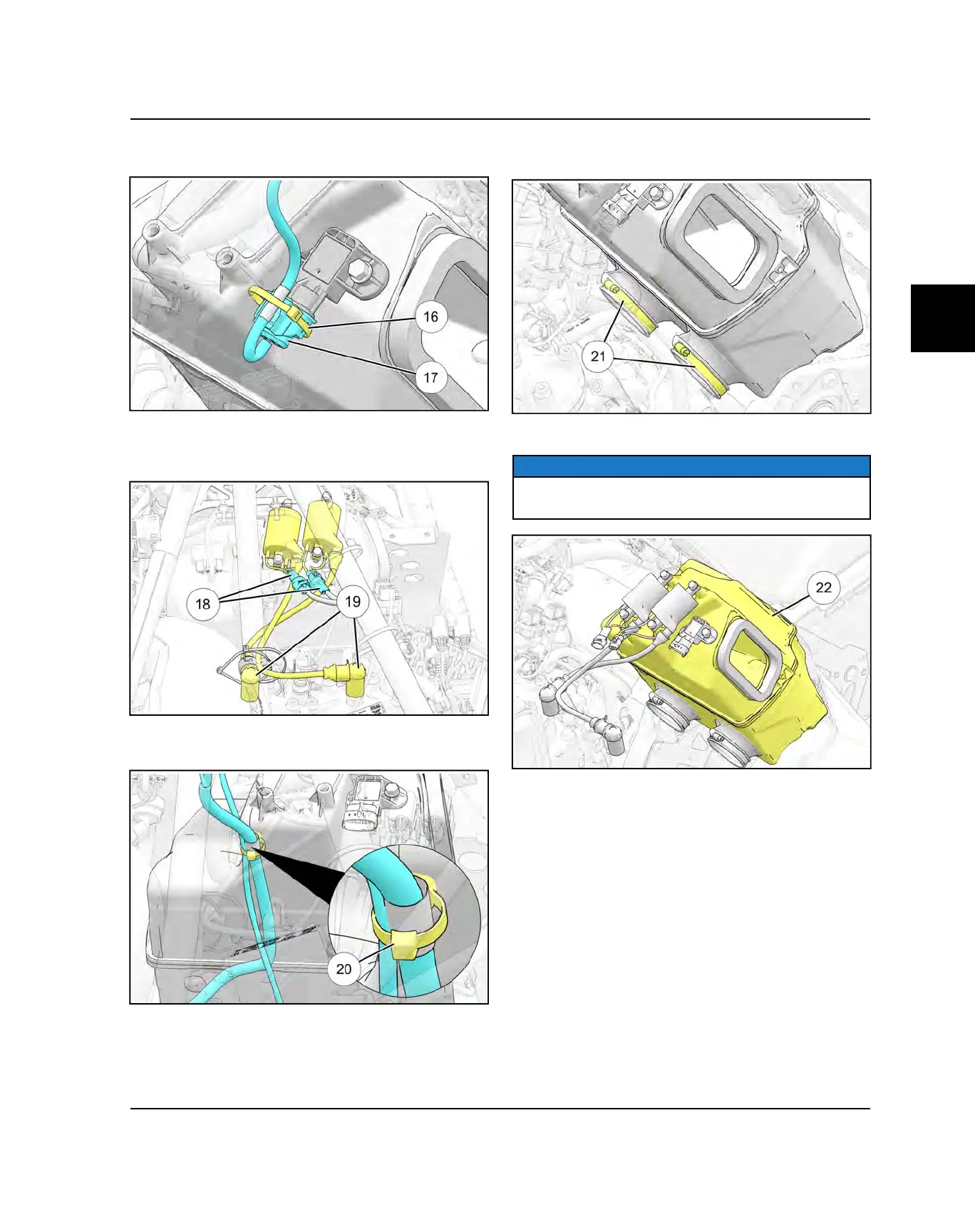

16.Cut the cable tie
j
and disconnect the T-MAP sensor
harness connector
k
.
17.Disconnect the ignition coil connectors
l
from the
wire harness and remove the spark plug caps
1(
from
the spark plugs.
18.Cut the cable tie of the routing clip
2)
securing the
stator wiring harness and throttle cable to the air box.
19.Loosen the two gear clamps
2!
securing the air box to
the throttle body.
20.Carefully remove the air box
2@
.
NOTICE
If removal is difficult and additional space is needed,
remove the ignition coils from the air box assembly.
ENGINE / COOLING / EXHAUST
