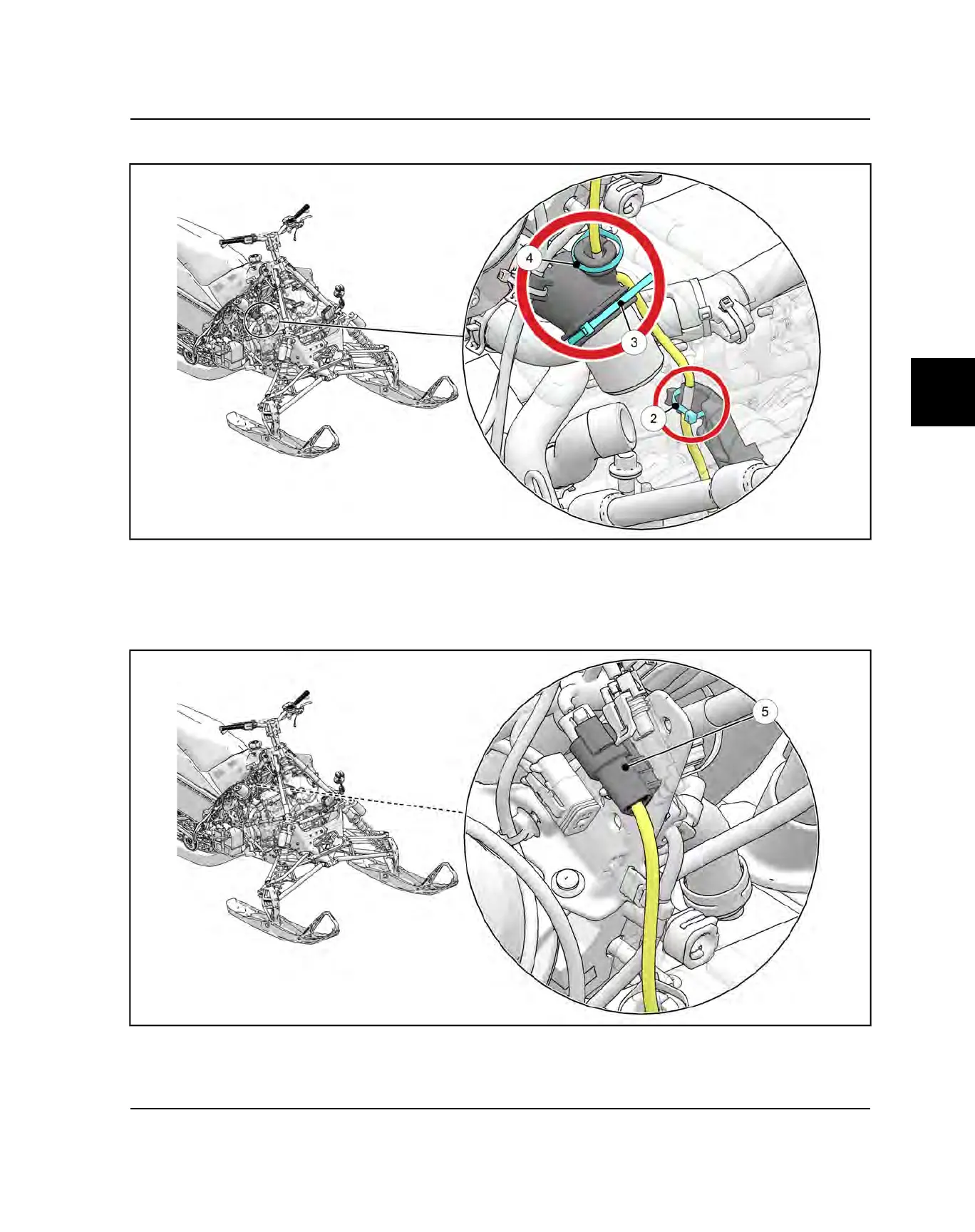

2. Route the TPS wire lead up to the stator wire retainer and secure wire lead with a panduit strap
w
.
3. Route the TPS wire lead upward toward the coolant bottle and secure on the outside of the hose/electrical support
with a panduit
e
. Continue to route the TPS wire lead upward and secure in the hose/electrical support with a
panduit
r
.
4. Complete routing by connecting TPS connector
t
to the main harness connector. Secure the TPS connector to the
connector placement bracket using the Christmas tree clip on the connector.
