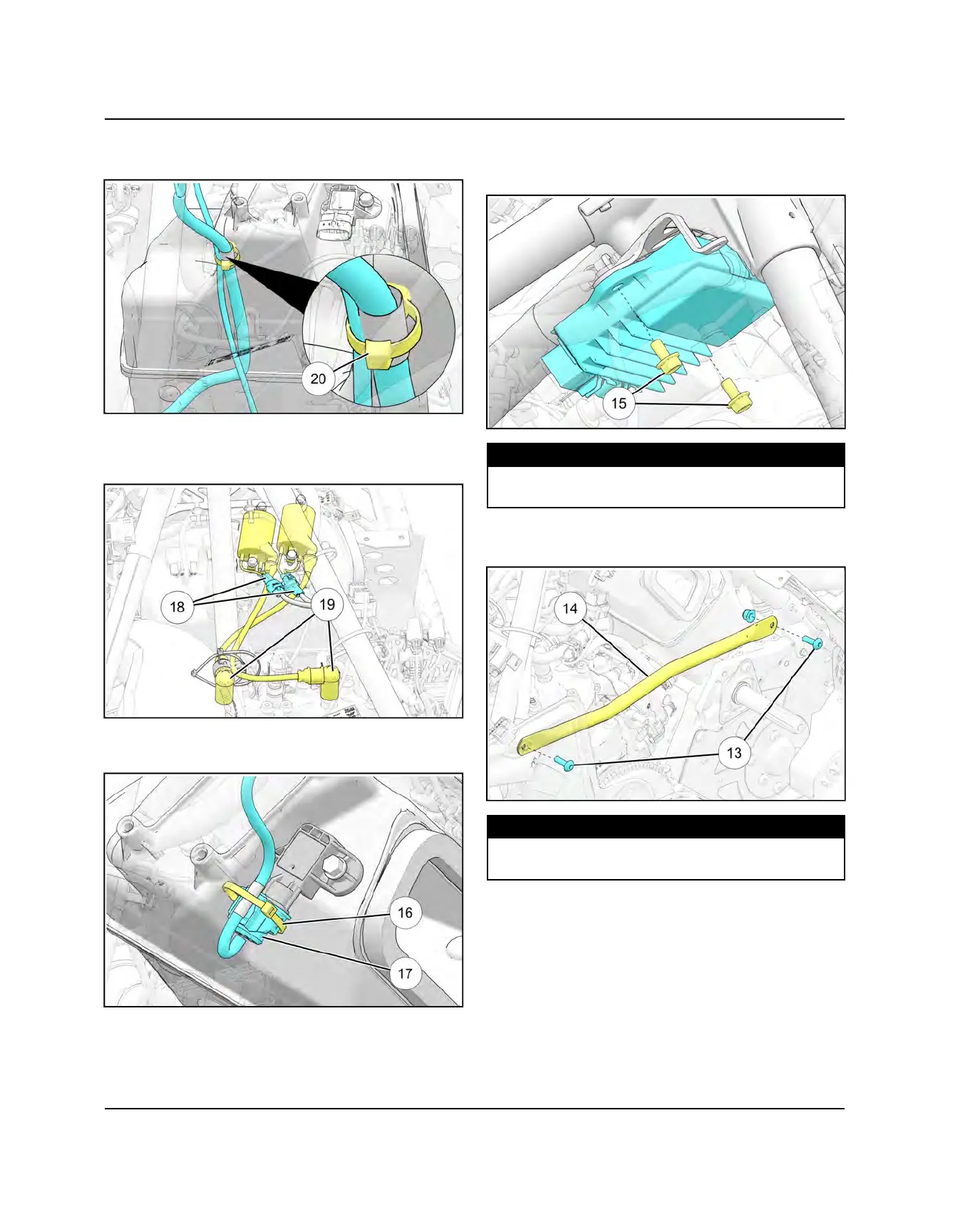

10.Install new cable tie on air box routing clip
2)
to
secure the stator wiring harness and throttle cable.
11. Connect the ignition coils connectors
l
to the wire
harness and install the spark plug caps
1(
onto the
spark plugs.
12.Connect the T-MAP Sensor
k
to the wiring harness
and install new cable tie
j
to secure wiring.
13.Slide the PBR back onto bracket and align mounting
holes. Install the two fasteners
h
and torque to
specification.
TORQUE
PBR Fasteners:
6 ft-lbs (8 N·m)
14.Install the fasteners
f
that retain the support brace
g
.
TORQUE
Left Support Brace Fasteners:
22 ft-lbs (30 N·m)
FUEL SYSTEM
To Next Page
