9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
5.31

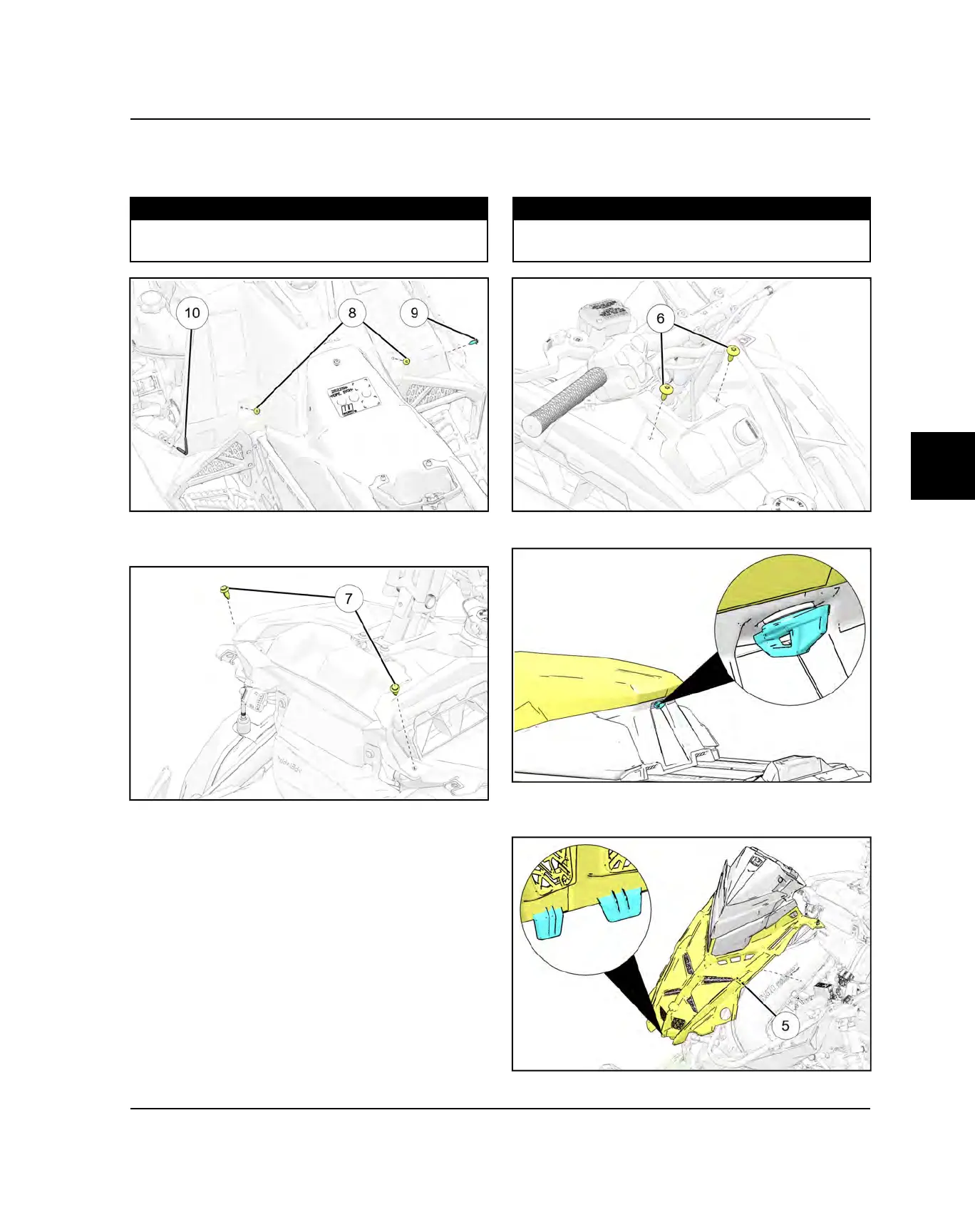

10.Install the two fasteners
i
, push-pin rivet
o
and
clutch tool
a
that secure the lower portion of the
console. Torque fastener to specification.
TORQUE
Console Fasteners:
71 in-lbs (8 N·m)
11. Install the two push-pin rivets
u
that secure the front
of the console to the lower intake plenum.
12.Install the two fasteners
y
that secure the console
and lower intake plenum to the over-structure. Torque
fastener to specification.
TORQUE
Console Fasteners:
71 in-lbs (8 N·m)
13.Install the seat and secure with 1/4 turn latch.
14.Install the hood
t
by inserting the front of the hood
into the nosepan.
