9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
6.39

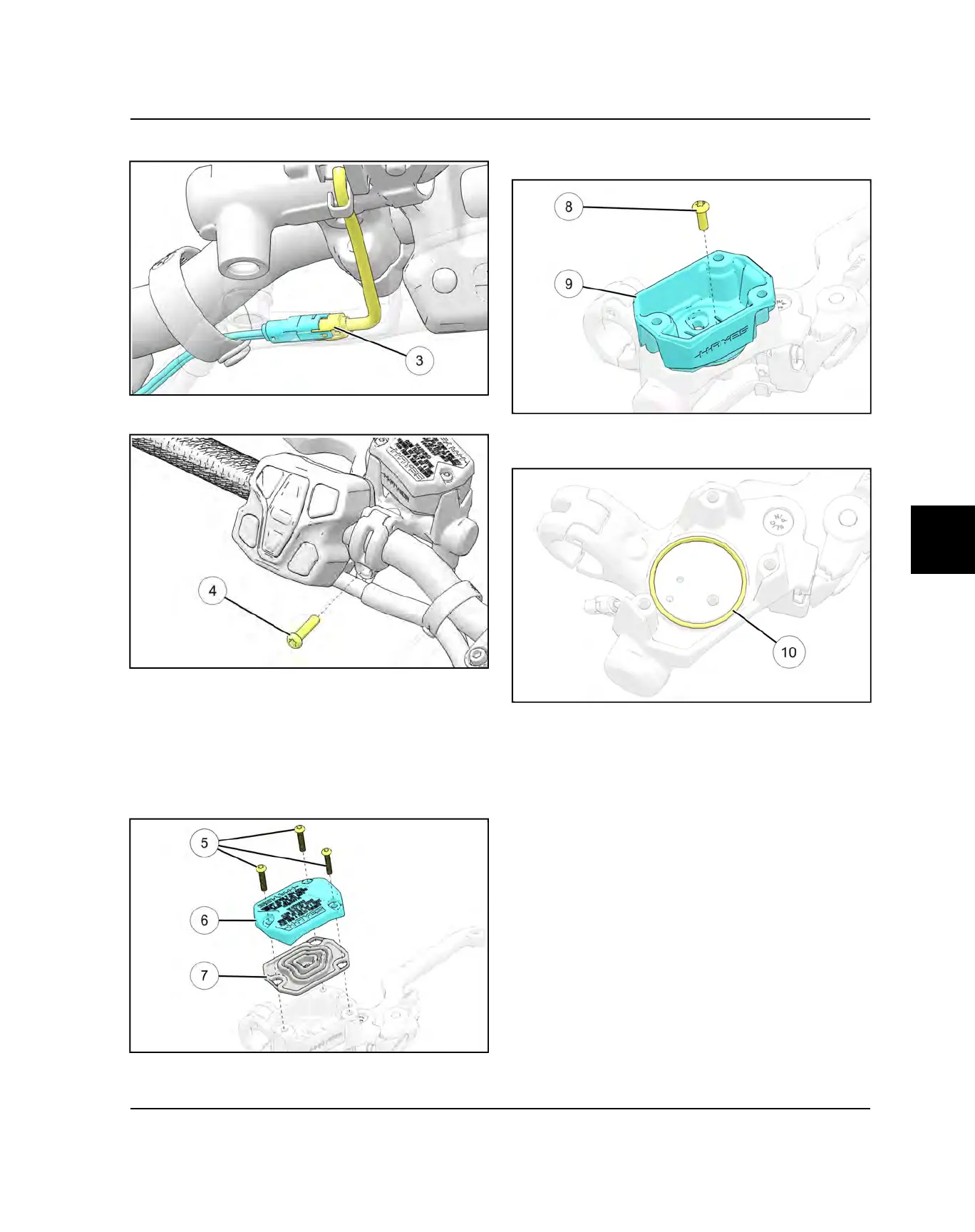

3. Disconnect the brake switch connector
e
.
4. Remove the clamp fastener
r
.
5. Remove the banjo bolt and discard the crush
washers.
6. Move the master cylinder / lever assembly to a clean
workspace on a work bench.
7. Remove the cover fasteners
t
, cover
y
, and damper
u
. Drain any residual brake fluid out of the reservoir
into a suitable container.
8. Remove the fastener
i
securing the reservoir to the
valve body. Remove the reservoir
o
.
9. Note the O-ring
a
on the top side of the valve body.
The O-ring must be replaced if damaged or worn.
