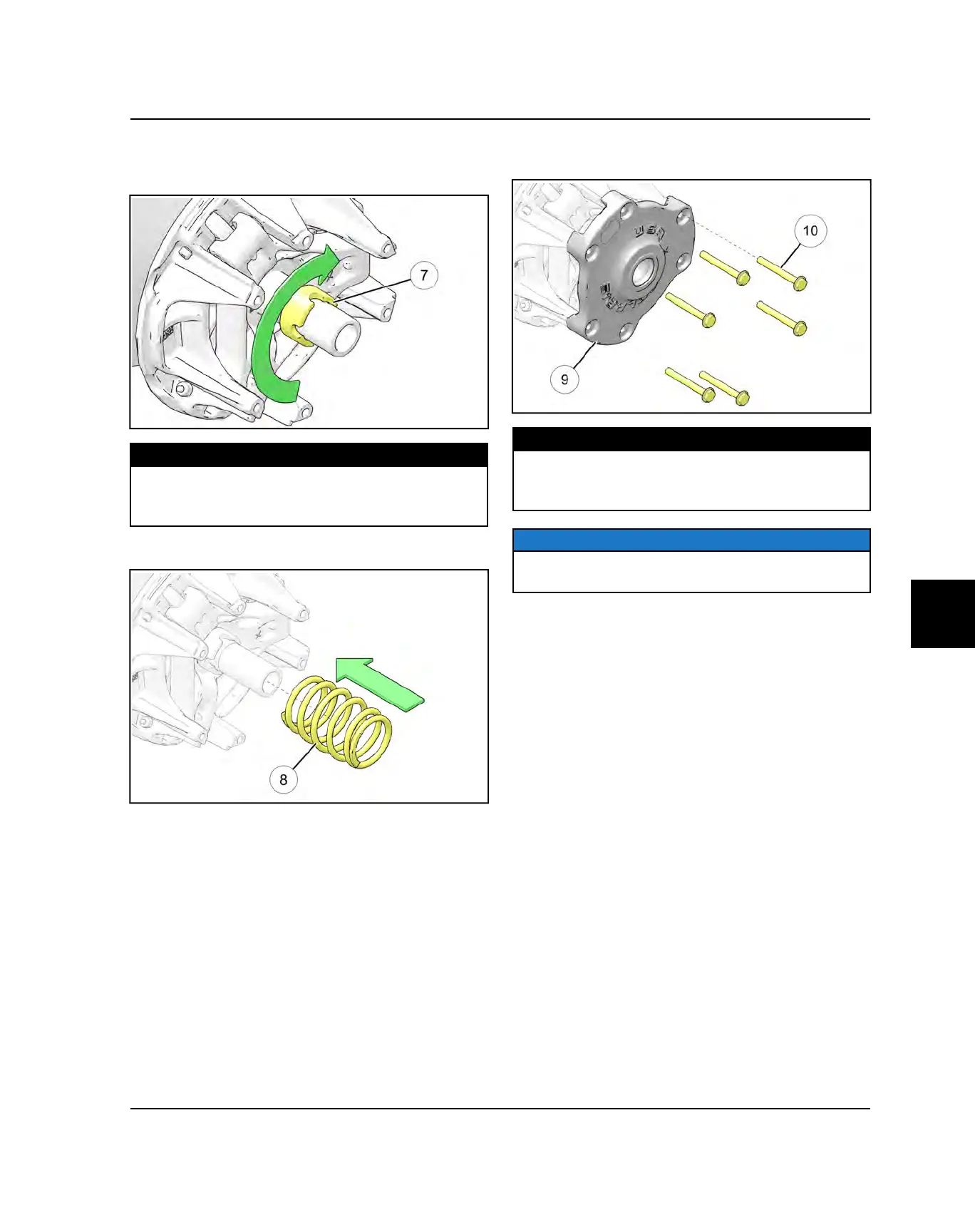

10.Apply Loctite® 243™ to shaft threads. Do not get
Loctite® on moveable bushing. Install the jam nut
u
onto the shaft and torque it to specification.
TORQUE
Spider Jam Nut Torque:
290-330 ft-lbs (394-447 N·m)
Apply Loctite® 243™ to Threads
11. Place the drive spring
i
on the shaft.
12.Place the cover
o
onto the clutch and torque the
cover fasteners
a
to specification.
TORQUE
Clutch Cover Fasteners:
100 in-lbs (11 N·m)
Use cross pattern.
NOTICE
Do not allow the side loading or misalignment of the
cover or the bushing may become damaged.
