8.108
9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.

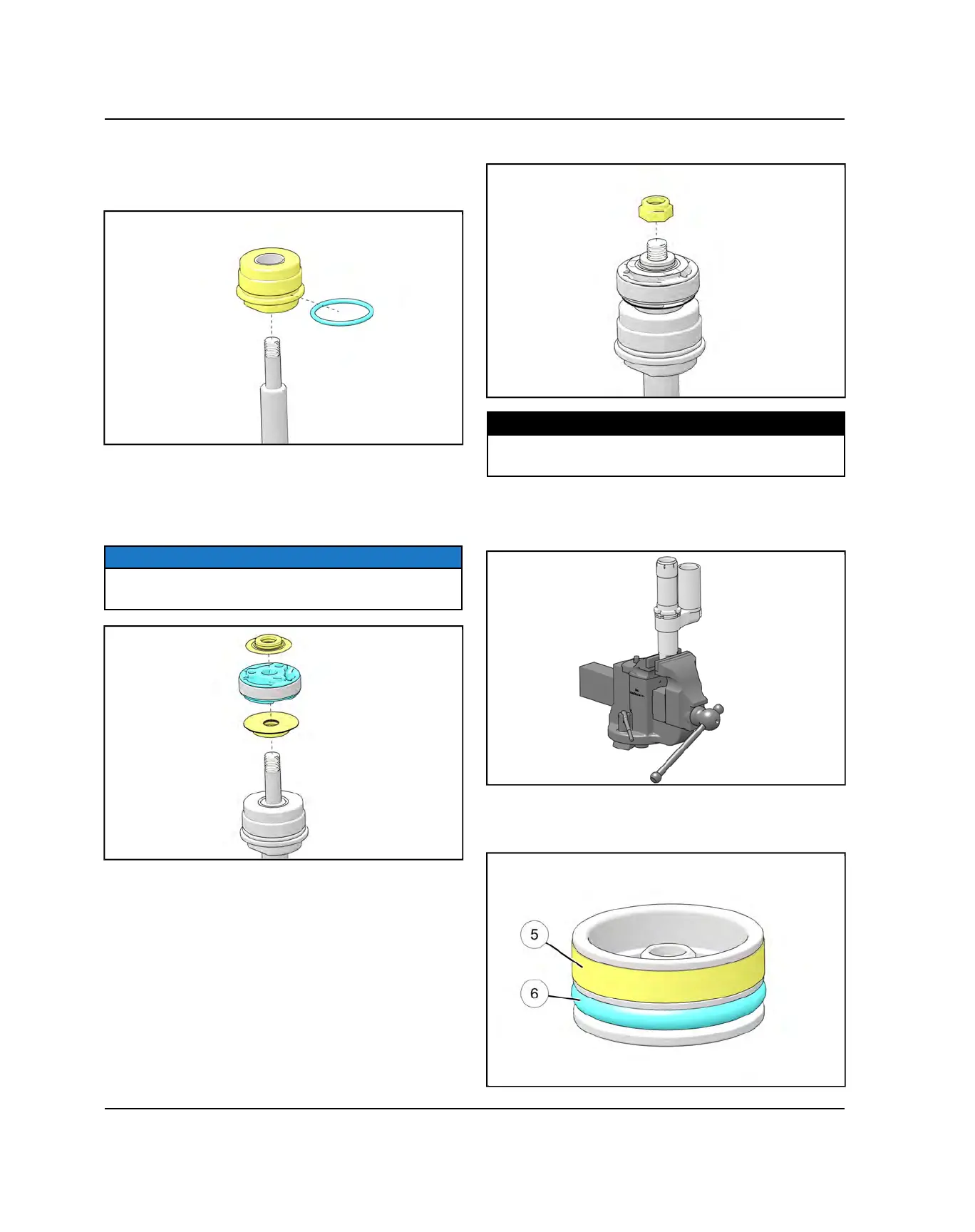

10.Coat the shock shaft and bearing assembly with
shock oil. Install the bearing assembly onto the shock
shaft with the wrench flats facing the rod end eyelet.
Install a new O-ring onto the bearing cap.
11. Install the compression valve stack onto the shock
rod. Coat a new piston valve wear band with shock oil
and install onto valve. Install the assembly onto the
shock shaft. Install the rebound valve stack onto the
shock rod.
NOTICE
The side of valve with the greater number of relief ports
is the rebound side. Install with rebound side facing up.
12.Install a new lock nut and torque to specification.
TORQUE
Shock Rod Lock Nut:
15 ft-lbs (20 N·m)
13.Remount the shock body assembly in the vise. Set
the clicker to full soft. Fill the shock body with new
shock oil until the reservoir is completely full.
14.Install a new wear band
t
and O-ring
y
onto the IFP.
Verify the bleed screw and O-ring are removed from
the IFP. Coat the IFP with shock oil.
STEERING / SUSPENSIONS
