10.26
9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.

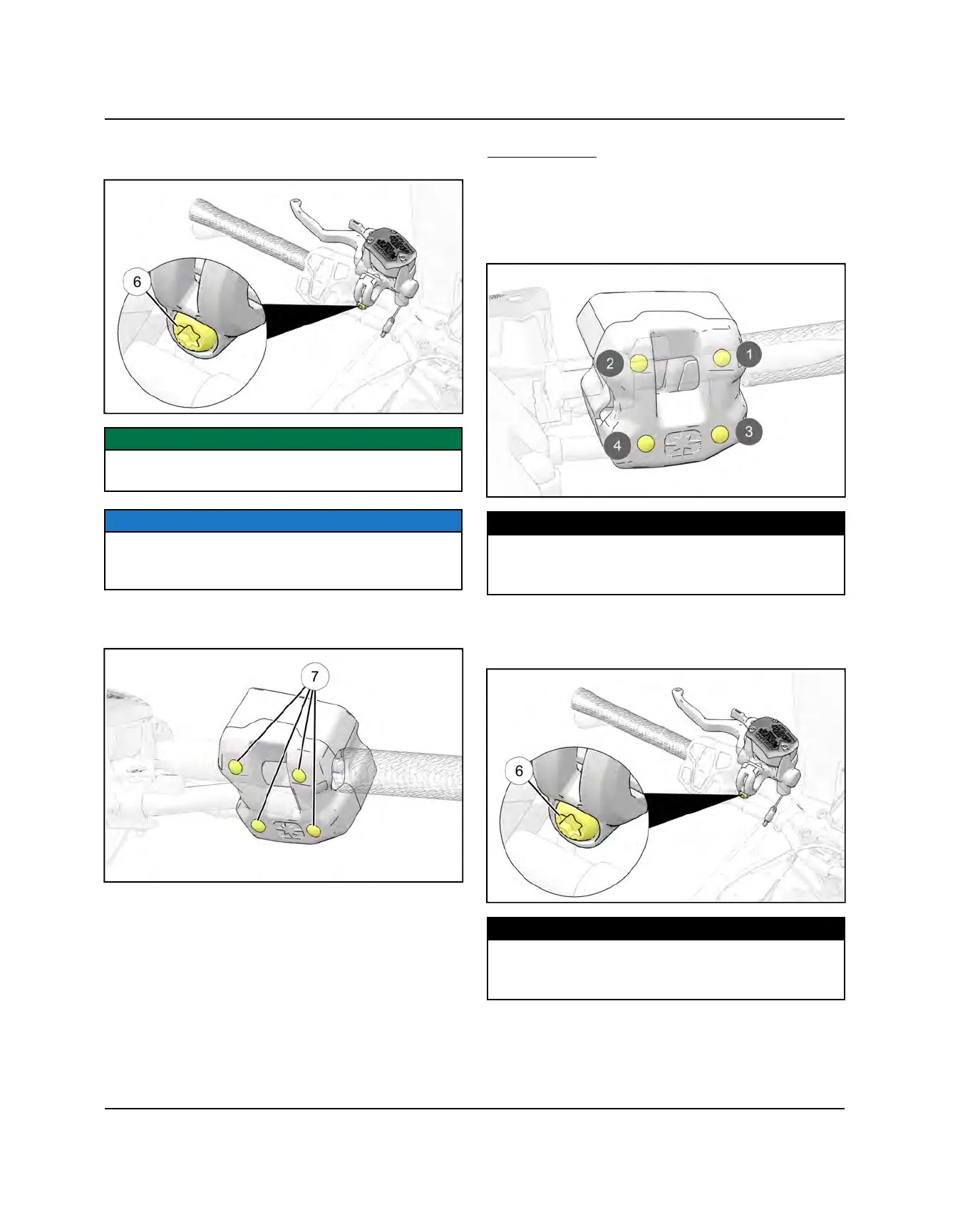

8. Loosen the brake master cylinder mounting screw
y
and move it away from left hand control.
IMPORTANT
Use care when moving brake master cylinder. Do not
damage the brake light signal wire.
NOTICE
If applicable, hand guards may need to be loosened or
removed to access and move the brake master
cylinder.
9. Remove the four left hand control mounting fasteners
u
.
10.Carefully separate the left hand control cover from the
left hand control assembly and remove.
INSTALLATION
1. Install the left hand control and left hand control cover
onto the handle bar.
2. Install the four left hand control mounting fasteners.
Torque control block screws to specification in the
sequence shown in the image.
TORQUE
Left Hand Control Screws:
20 in-lbs (2.3 N·m)
Do not over-torque.
3. Return the brake master cylinder to its specified
position. Verify clamp will not pinch brake light signal
wire. Torque clamp screw
y
to specification
TORQUE
Brake Master Cylinder Clamp:
60-80 in-lbs (6.8-9 N·m)
Do not over-torque.
4. Rewrap the harness covering to cover the wires.
5. Carefully route the connectors through the console
switch panel opening.
