6. Connect and tighten the black (negative) cable last.
IMPORTANT
Verify the battery cables and wiring harness do not
come into contact with the brake disc. Move the wiring
harness/cables behind the chassis tube and away from
the brake disc.
IMPORTANT

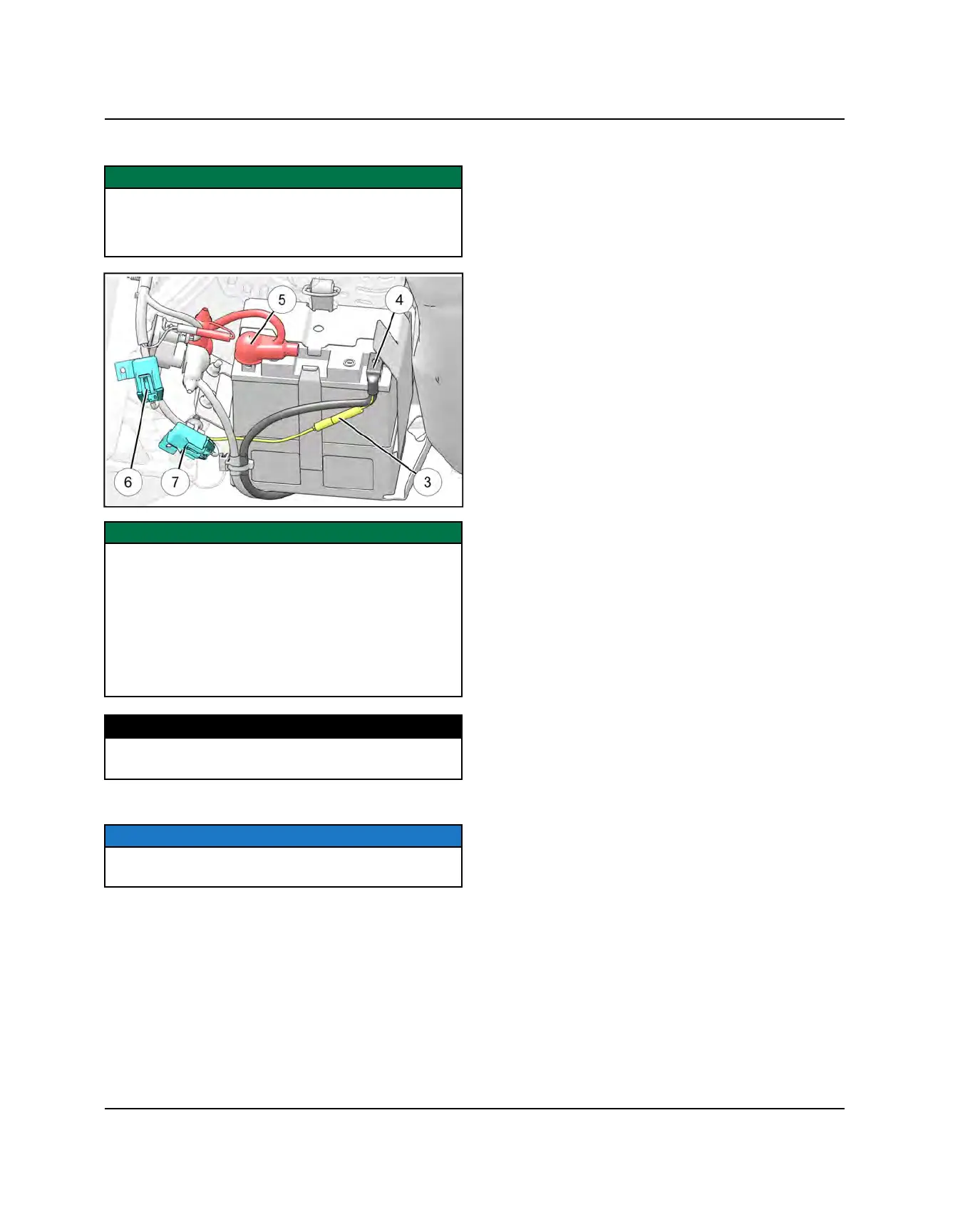

Route the BROWN harness ground wires
e
and
BLACK main battery ground cable
r
as shown in the
image. Both are routed up and over the rubber strap. If
the ground wires/cable are routed down the side of the
battery, they may interfere with the rear side panel tab.
Note the routing of the RED (positive) battery cable
t
and that the right fender is pulled away from the
chassis. Item
y
is the battery power fuse and item
u
is
the battery tender fuse.
TORQUE
Battery Cable Connector:
36 in-lbs (4 N·m)
7. Verify that cables are properly routed.
NOTICE
Ensure that the battery wires are routed in such a way
that they cannot come into contact with the brake disc.
8. Secure the right fender using the plastic rivet.
9. Reinstall the console using the plastic rivet and
console fastener.
10.Reinstall the side panel.
