Polaris 850 MATRYX SWITCHBACK ASSAULT 146 2021 User Manual

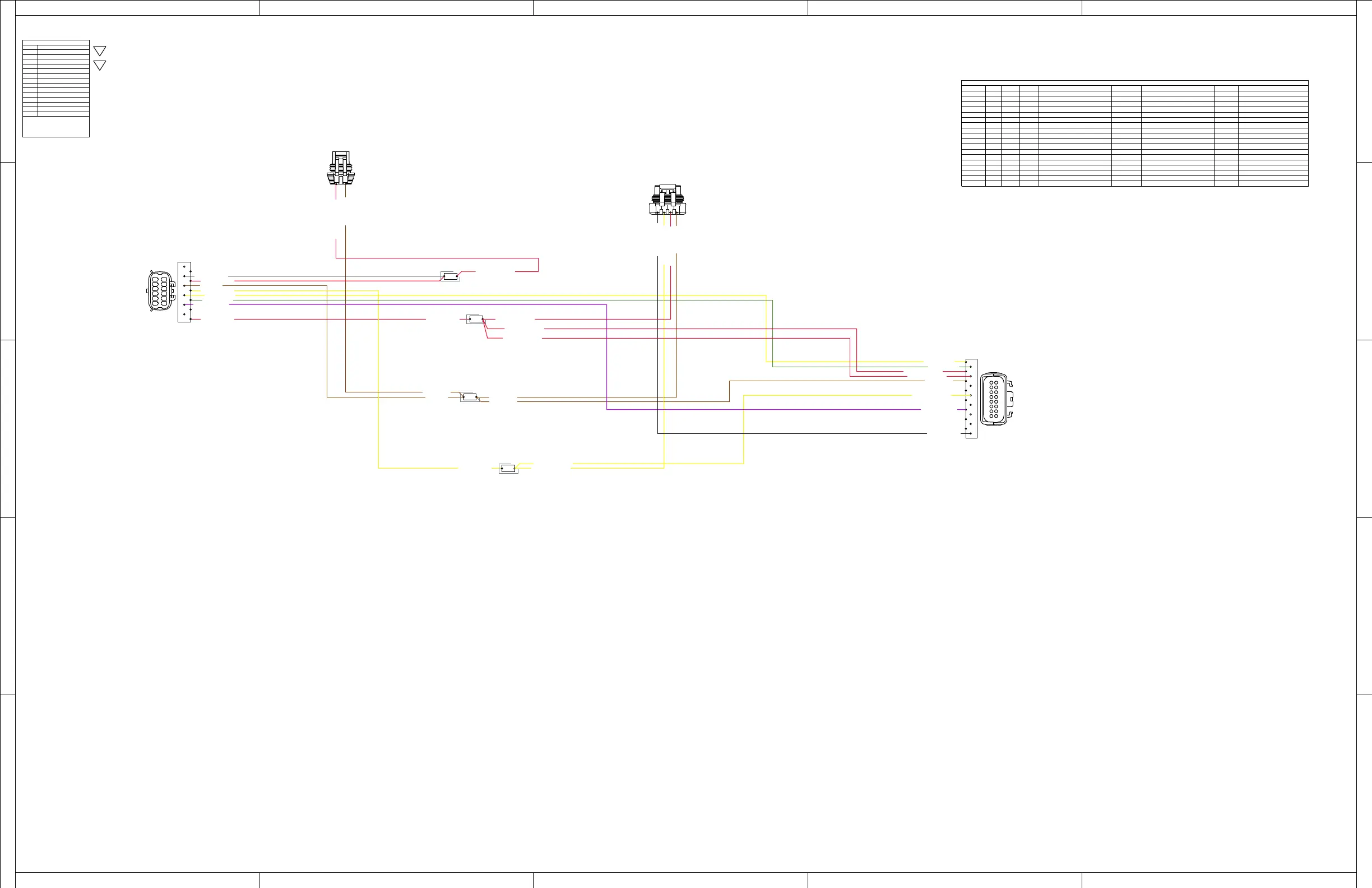

SCHEMATIC CABLE/WIRE TERMINATION TABLE
CCT # TYPE GAUGE COLOR FROM COMPONENT FROM PORT TO COMPONENT TO PORT FUNCTION
CAN2H-3 TXL 0.5TP YE MAIN HARNESS 6 DISPLAY 1 CAN2 HI
CAN2L-1 TXL 0.5TP DG MAIN HARNESS 5 DISPLAY 2 CAN2 LOW
FUEL01 TXL 0.5 VT/WH MAIN HARNESS 4 DISPLAY 11 FUEL LEVEL
GC07 TXL 0.8 BN MAIN HARNESS 8 CHASSIS GND SPLICE 1 CHASSIS GND
GC07-1 TXL 0.8 BN CHASSIS GND SPLICE 1 12 ACC PWR B CHASSIS GND
GC07-2 TXL 0.5 BN CHASSIS GND SPLICE 2 DISPLAY 5 CHASSIS GND
GC07-3 TXL 0.5 BN CHASSIS GND SPLICE 2 HEADLIGHT A CHASSIS GND
LED01 TXL 0.5 WH/RD MAIN HARNESS 10 CHASSIS PWR 1 ACCENT LED - HANDGUARDS
LED02 TXL 0.5 WH/RD DISPLAY 16 HEADLIGHT D ACCENT LED CONTROL
PCH06 TXL 0.8 RD/WH MAIN HARNESS 9 CHASSIS PWR 1 ACC FUSED PWR
PCH20-2 TXL 0.8 RD/YE CHASSIS PWR 2 12 ACC PWR A CHASSIS PWR
PCR15 TXL 0.5 RD/BK MAIN HARNESS 1 CRITICAL PWR SPLICE 1 CRITICAL PWR
PCR15-1 TXL 0.5 RD/BK HEADLIGHT B CRITICAL PWR SPLICE 2 CRITICAL PWR
PCR15-2 TXL 0.5 RD/BK CRITICAL PWR SPLICE 2 DISPLAY 3 CRITICAL PWR
PCR15-3 TXL 0.5 RD/BK CRITICAL PWR SPLICE 2 DISPLAY 4 CRITICAL PWR
PCR20 TXL 0.5 YE/RD MAIN HARNESS 7 HIGH BEAM CONTROL SPLICE 1 HIGH BEAM HEADLIGHT PWR
PCR20-1 TXL 0.5 YE/RD HIGH BEAM CONTROL SPLICE 2 DISPLAY 8 HIGH BEAM HEADLIGHT PWR
PCR20-2 TXL 0.5 YE/RD HIGH BEAM CONTROL SPLICE 2 HEADLIGHT C HIGH BEAM HEADLIGHT PWR
07/31/20
GC07 BN
GC07 BN
PCR15 RD/BK PCR15 RD/BK
PCR20 YE/RD
PCR20 YE/RD
CAN2H-3 YE
CAN2H-3 YE
CAN2L-1 DG
CAN2L-1 DG
GC07-3 BN
GC07-3 BN
GC07-2 BN
GC07-2 BN
PCR20-2 YE/RD
PCR20-2 YE/RD
PCR20-1 YE/RD
PCR20-1 YE/RD
FUEL01 VT/WH
FUEL01 VT/WH
LED02 WH/RD
LED02 WH/RD
PCH20-2 RD/YE
PCH20-2 RD/YE
GC07-1 BN
GC07-1 BN
PCH06 RD/WH
LED01 WH/RD
PCR15-1 RD/BK
PCR15-1 RD/BK
PCR15-2 RD/BK
PCR15-2 RD/BK
PCR15-3 RD/BK
PCR15-3 RD/BK
12
3
45
A
B
C
D
E
WIRE COLOR LEGEND
BG
BK
BU
DB
BN
GY
GN
DG
OG
PK
RD
VT
WH
YE
BEIGE (TAN)
BLACK
LIGHT BLUE
DARK BLUE
BROWN
GRAY
LIGHT GREEN
DARK GREEN
ORANGE
PINK
RED
VIOLET (PURPLE)
WHITE
YELLOW
TWO WIRE COLORS ARE SHOWN
WITH MAIN/TRACE COLORS.
EXAMPLE:RD/YE = RED WITH
YELLOW TRACE.
HARNESS-HOOD STD
E = ENGINE GROUND
C = CHASSIS GROUND
NC = SWITCH NORMALLY CLOSED
NO = SWITCH NORMALLY OPEN
HARNESS: 2415142-01
SHEET NO. 1 OF 1
DRAWN: 3-NOV-19
CL CLEAR
12345678
9
10111213141516
DISPLAY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
HEADLIGHT
ABCD
CHASSIS GND SPLICE
1 2
HIGH BEAM CONTROL SPLICE
1 2
1
234
56
7
8
9
1011
12
MAIN HARNESS
1
2
3
4
5
6
7
8
9
10
11
12
12 ACC PWR
A B
CHASSIS PWR
1 2
CRITICAL PWR SPLICE
1 2
