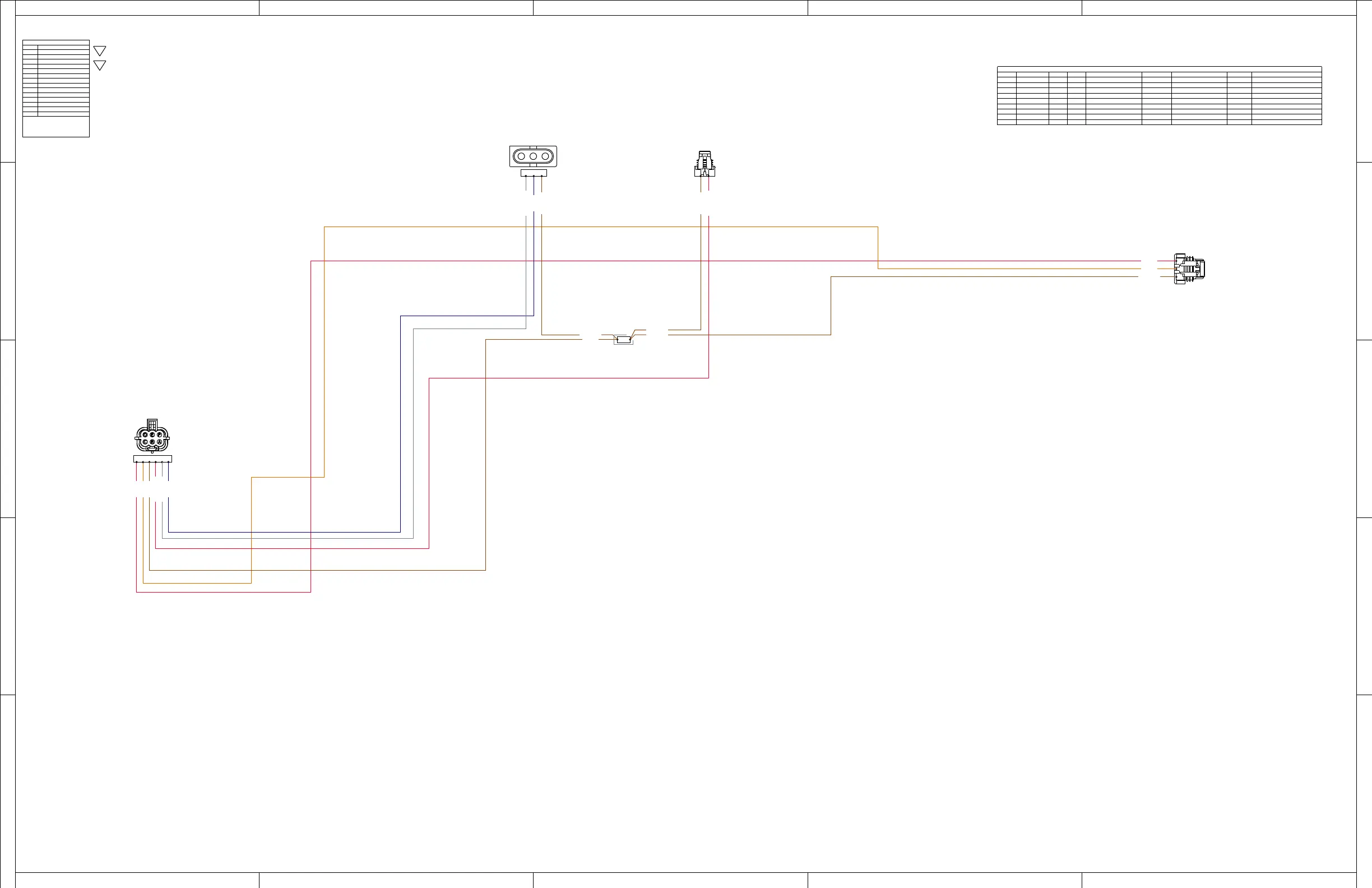

SCHEMATIC CABLE/WIRE TERMINATION TABLE
CCT # TYPE GAUGE COLOR FROM COMPONENT FROM PORT TO COMPONENT TO PORT FUNCTION
01 TXL 0.8 RD MAIN HARNESS A TAIL LIGHT A TAIL LIGHT PWR
02 TXL 0.8 OG MAIN HARNESS B TAIL LIGHT B BRAKE LIGHT
03 TXL 1.0 BN MAIN HARNESS C REAR GND SPLICE 1 CHASSIS GND
03-1 TXL (SBBC) 0.8 BN DRIVER SEAT HEATER 3 REAR GND SPLICE 1 CHASSIS GND
03-2 TXL 0.8 BN REAR GND SPLICE 2 TAIL LIGHT C CHASSIS GND
03-3 TXL 0.8 BN REAR GND SPLICE 2 PASSENGER PWR B CHASSIS GND
04 TXL 1.0 RD/WH MAIN HARNESS D PASSENGER PWR A CHASSIS PWR
05 TXL (SBBC) 0.8 GY/OG MAIN HARNESS E DRIVER SEAT HEATER 1 DRIVER SEAT HEATER HIGH
06 TXL (SBBC) 0.8 DB MAIN HARNESS F DRIVER SEAT HEATER 2 DRIVER SEAT HEATER LOW
07/31/20
01 RD
01 RD
02 OG
02 OG
03-3 BN
03-3 BN
03-2 BN
03-2 BN
04 RD/WH
04 RD/WH
03 BN
03 BN
03-1 BN
03-1 BN
06 DB
06 DB
05 GY/OG
05 GY/OG
12
3
45
A
B
C
D
E
WIRE COLOR LEGEND
BG
BK
BU
DB
BN
GY
GN
DG
OG
PK
RD
VT
WH
YE
BEIGE (TAN)
BLACK
LIGHT BLUE
DARK BLUE
BROWN
GRAY
LIGHT GREEN
DARK GREEN
ORANGE
PINK
RED
VIOLET (PURPLE)
WHITE
YELLOW
TWO WIRE COLORS ARE SHOWN
WITH MAIN/TRACE COLORS.
EXAMPLE:RD/YE = RED WITH
YELLOW TRACE.
HARNESS-REAR 137
E = ENGINE GROUND
C = CHASSIS GROUND
NC = SWITCH NORMALLY CLOSED
NO = SWITCH NORMALLY OPEN
HARNESS: 2415345-01
SHEET NO. 1 OF 1
DRAWN: 14-NOV-19
CL CLEAR
1
2
3
1 2 3
DELPHI
TAIL LIGHT
12110293
ABC
REAR GND SPLICE
1 2
MAIN HARNESS
A B C D E F
PASSENGER PWR
12052641
DELPHI
CAP : 12064959
AB
DRIVER SEAT HEATER
MOLEX 00309-2032
