9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
4.17

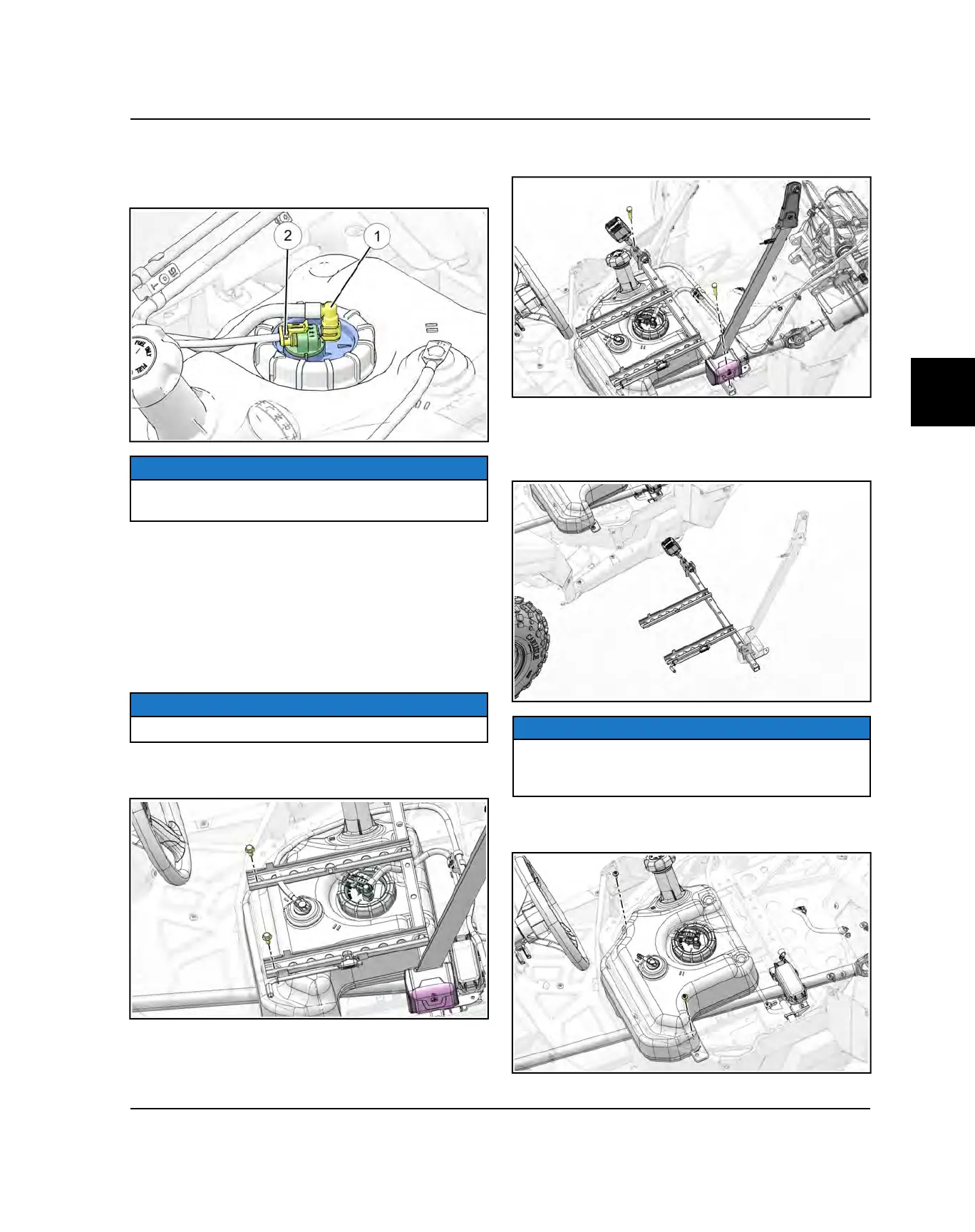

6. While holding a shop towel over the fuel line
connector, disconnect the quick connect fuel line from
the fuel pump
q
. Move the fuel line out of the way for
tank removal.
NOTICE
A small amount of fuel may come out of the fuel line or
tank. Properly drain fuel into a suitable container.
7. Disconnect the fuel pump electrical harness
w
.
8. Remove the fuel tank vent hose clamp with a suitable
pliers and remove the vent line from the tank vent
fitting.
9. Remove the fuel cap, push rivets and screws
retaining the right seat cover panel and remove pull
the panel away from the vehicle. Reinstall the fuel
cap after moving panel.
NOTICE
When reinstalling fuel cap, tighten to two clicks.
10.Remove the screws securing the seat channels to the
frame.
11. Remove the screws and nuts securing the seat frame
to the chassis.
12.Carefully slide the seat bracket assembly up and
away from the fuel tank. Take care not to damage fuel
hoses and wiring harnesses connected to the fuse
box.
NOTICE
The seat belt assembly and buckle do not require
removal. Move the seat bracket assembly just to
access the fuel tank assembly.
13.Remove two screws securing the fuel tank to the
frame.
FUEL SYSTEM
