9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
7.31

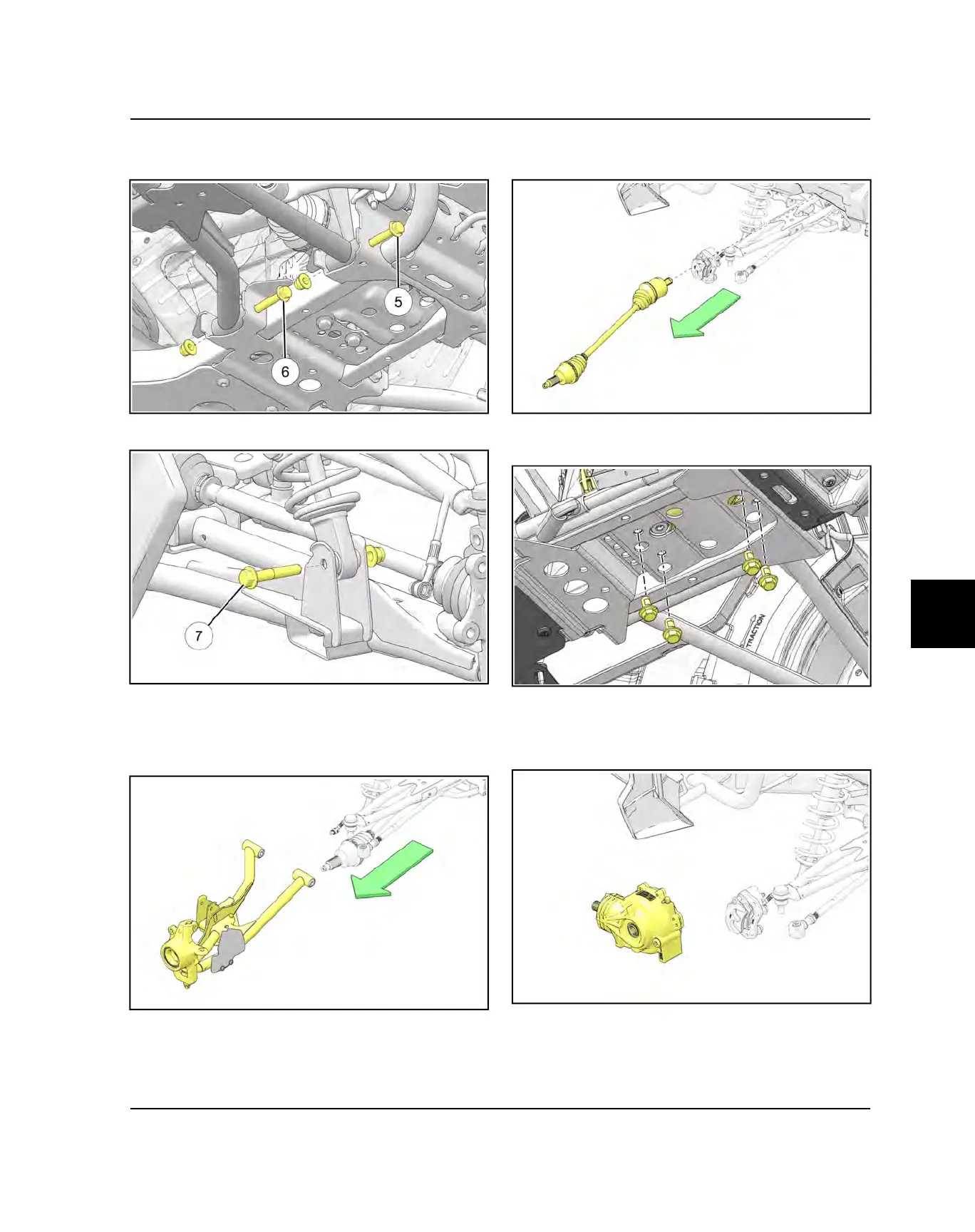

14.Loosen and remove the lower A-arm front through-
bolt fastener
t
and rear through-bolt fastener
y
.
15.Remove lower shock fastener
u
from lower A-arm.
16.Using a soft faced hammer, lightly tap on the bearing
carrier while removing the upper joint end.
17.Remove the bearing carrier and lower A-arm from the
front drive shaft.
18.With a short, sharp jerk, remove drive shaft from the
front gearcase.
19.Remove the bolts securing the front gearcase to the
frame.
20.With the front gearcase loose in the frame, remove
the left front driveshaft from the gearcase. Remove
the gearcase assembly from the right side of the
vehicle.
