MAINTENANCE
Alternator Belt
Belt Replacement
1. Loosen the mounting and adjustment bolts and move the alternator toward the engine.
2. Remove the belt.
3. Install the new belt and adjust as shown under Belt Adjustment.
Air Conditioning (if equipped)
Belt Adjustment
Check the air conditioning belt at the correct service interval as outlined in the Periodic
Maintenance Chart beginning on page 73.
1. Stop the machine on a flat level surface. Put the gear selector in Park, stop the engine and
exit the vehicle. See page 40.
2. Raise the cargo box. See page 57.
3. Remove the three bolts and remove the shield.

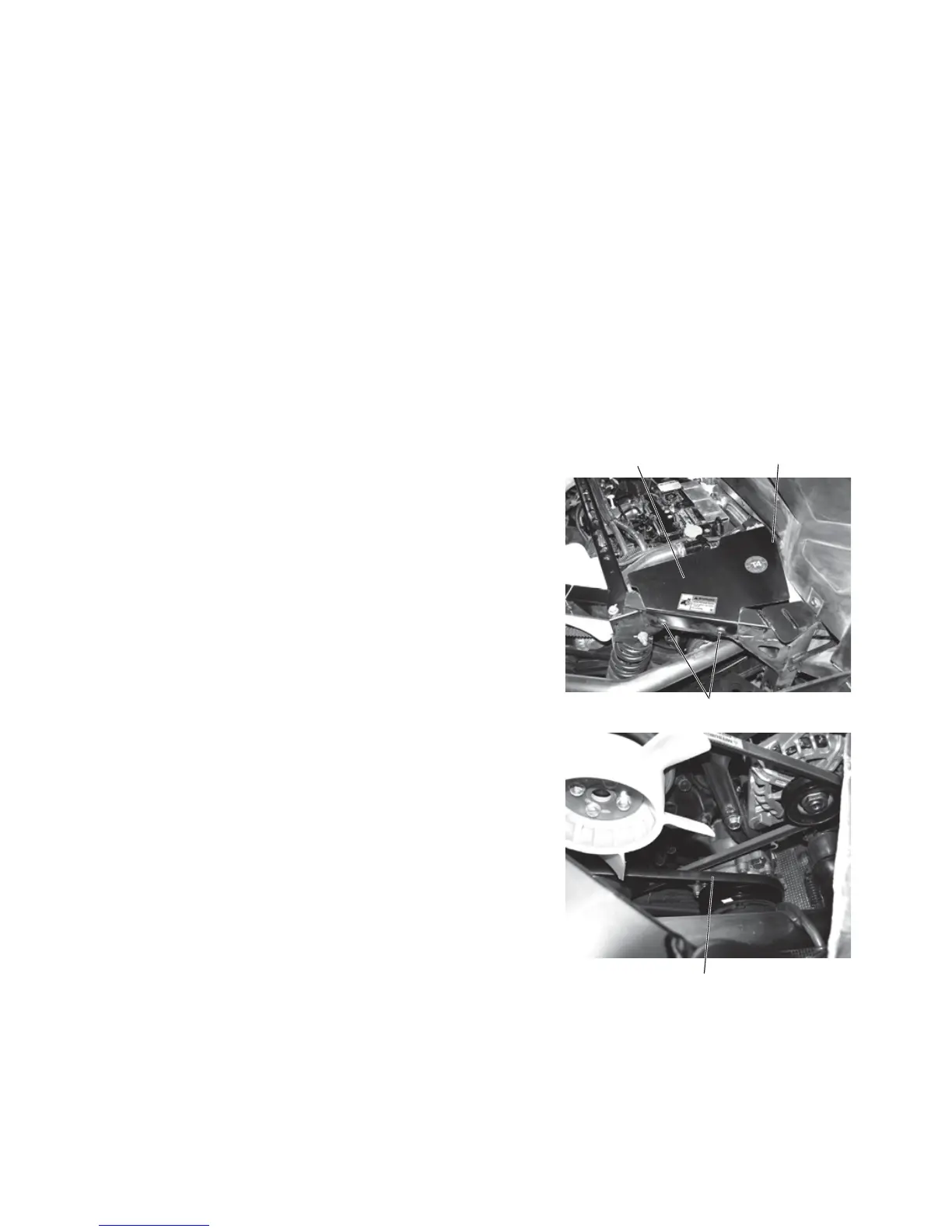

4. The belt tension is correct with 5/16-1/2 in. (7-10
mm) of belt deflection at the mid span of the belt,
when 20 lbf (89 N) is applied to the belt.
