ATTACHMENT ARM
Removing And Installing (Models HD and HDPTO)
6. Start the engine. See page 39. Press the bottom of the joystick lockout switch to enable
the joystick.
WARNING! Avoid Injury. Keep fingers and hands out of pinch points when removing and installing the
attachment arm.
7. Extend the lift cylinder fully.
8. Extend the tilt cylinder fully.
9. Press the top of the joystick lockout switch to
lockout the joystick. Turn the key to the OFF
position and exit the utility vehicle.

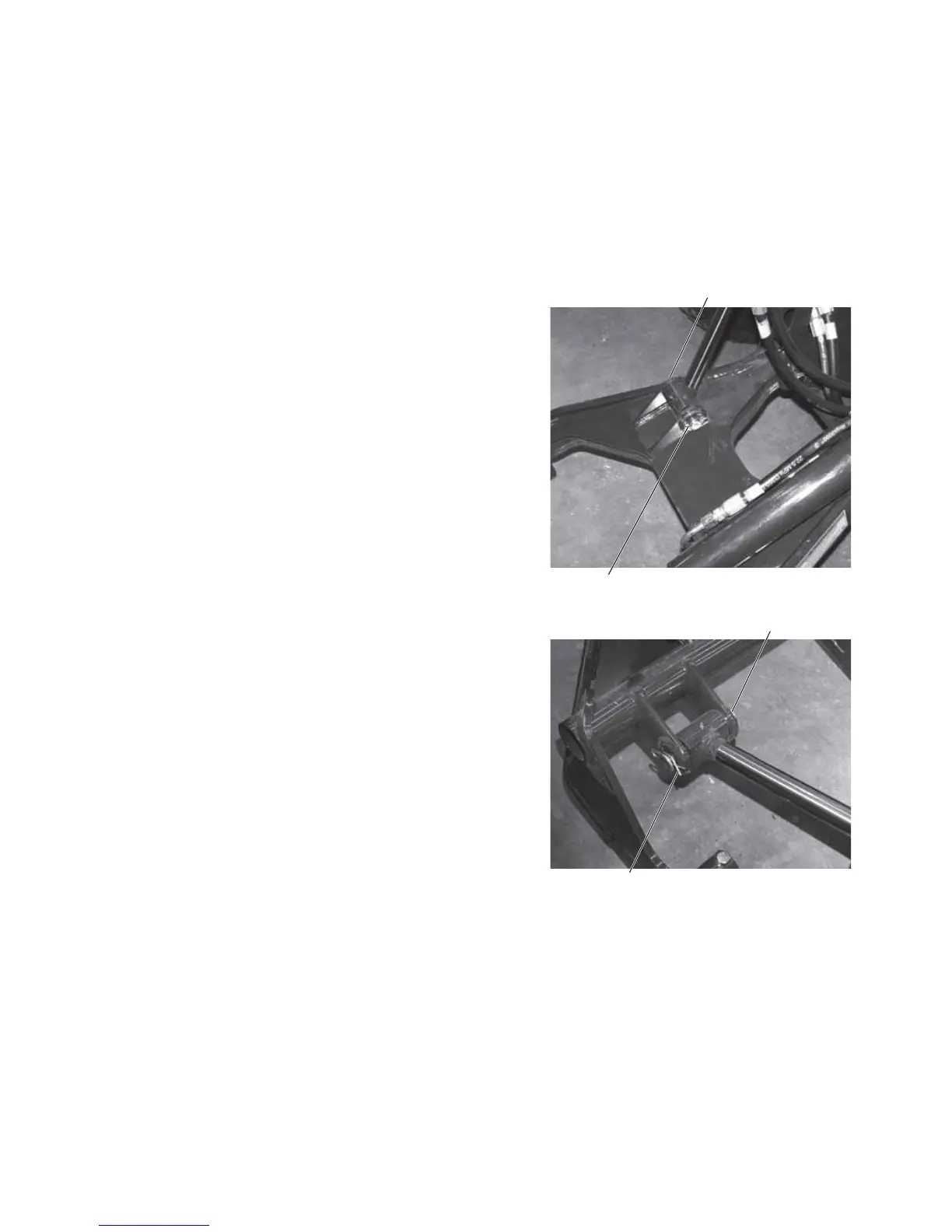

10. Raise the interface until it is aligned with the rod
end of the lift cylinder. Install the pin and retainer
pin.
11. Rotate the interface upward until it is aligned with
the rod end of the tilt cylinder. Install the pin and
retainer pin.
12. Lubricate the attachment arm and the cylinder
grease fittings. See page 114.
