67

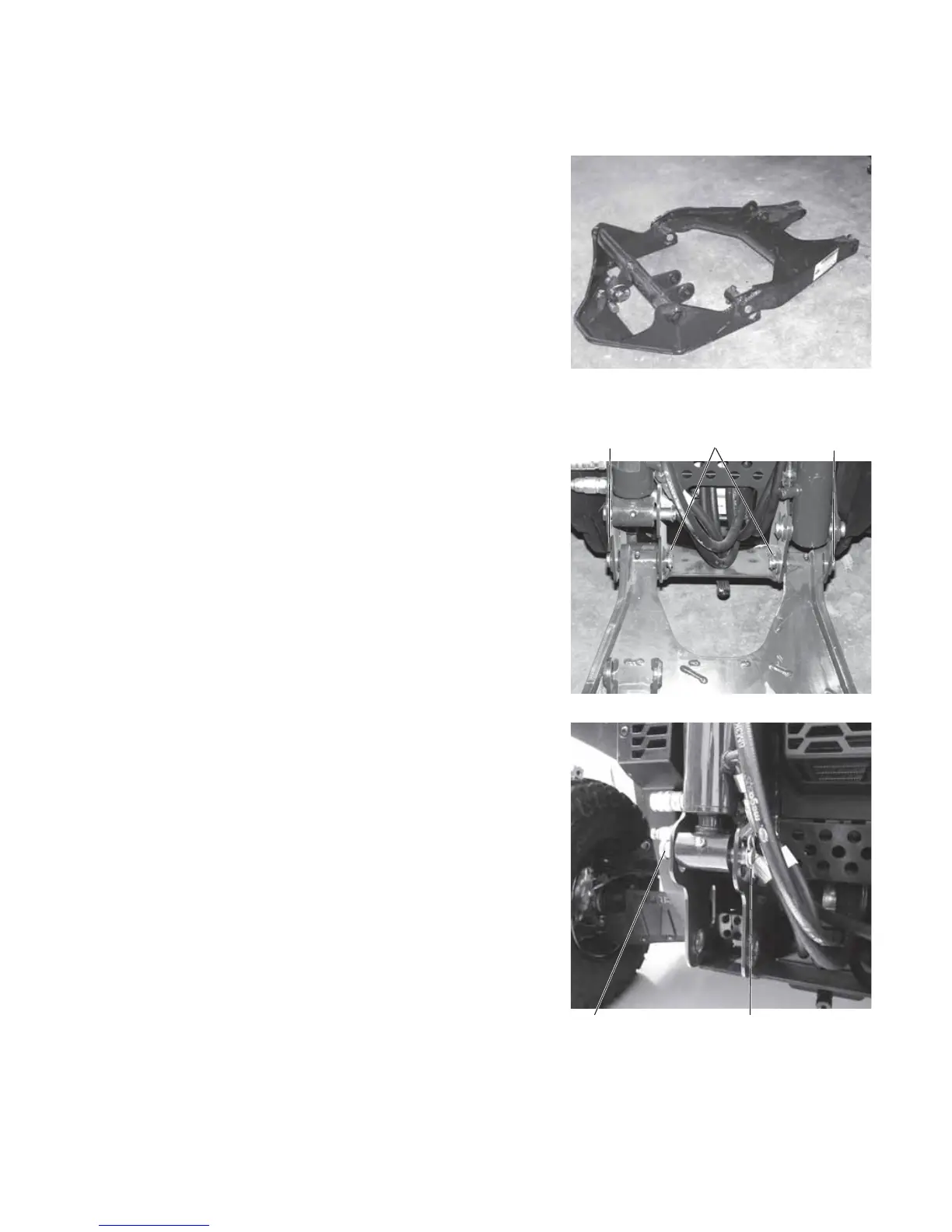

ATTACHMENT ARM
Removing And Installing (Models HD and HDPTO)
Installing
WARNING! Avoid Injury. Keep fingers and hands out of
pinch points when removing and installing the attachment
arm.
1. Position the utility vehicle so it is centered in front
of the attachment arm.
2. Remove the retainer pins and pins from the
attachment arm (both sides).
3. Raise the attachment arm and position it to the
vehicle mounting frame. Install the two pins and
retainer pins.
4. Remove the lift cylinder retainer pin and the pin.
5. Lower the tilt cylinder down and rest the rod end
on the attachment arm.
To Next Page
