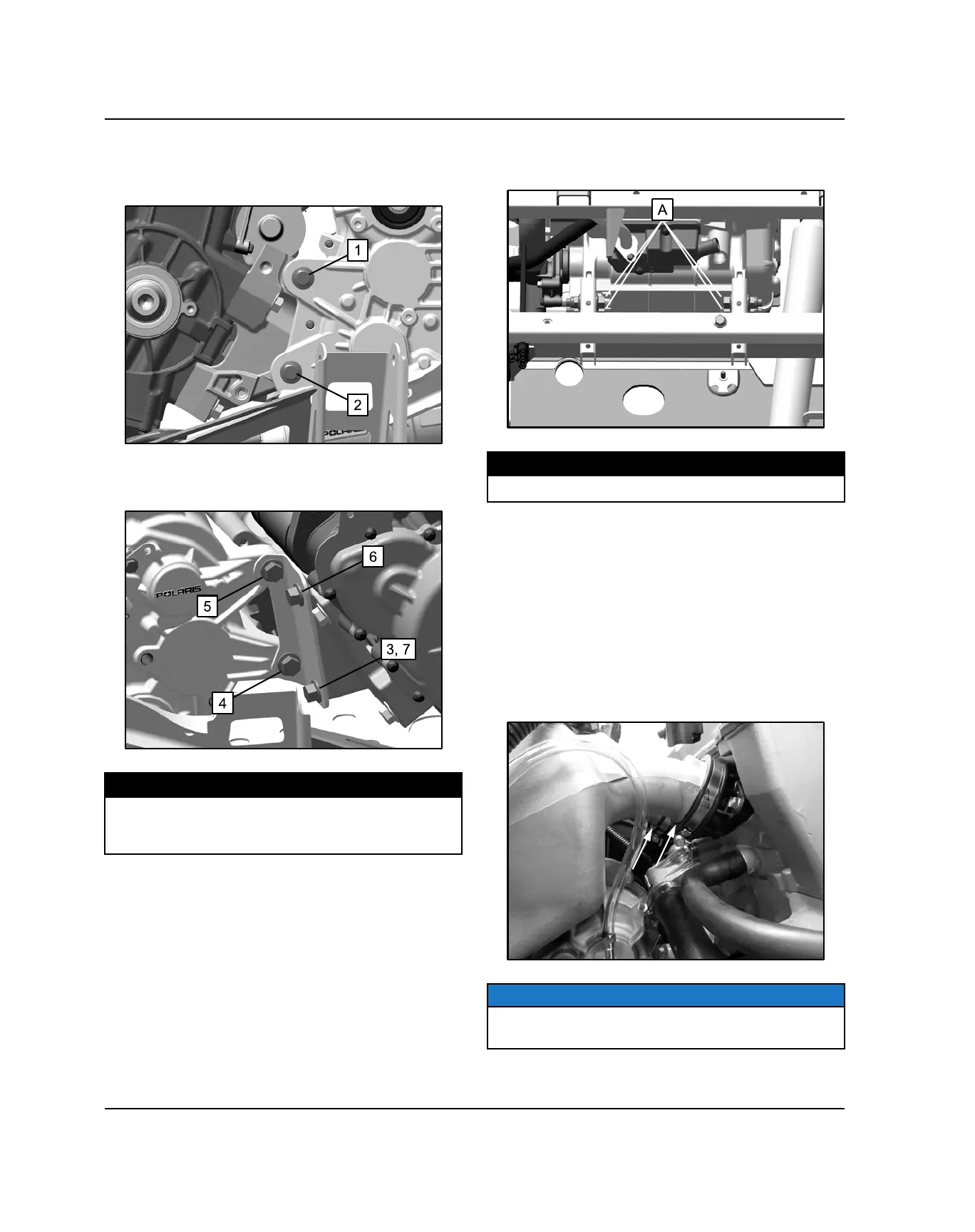

10. Install the (2) longer bolts into left side mounting
holes. Torque left side mounting bolts to specification
using the numbered sequence shown.
11. Torque right side mounting bolts to specification
using the numbered sequence shown.
TORQUE
Engine / Transmission Mounting Bolts:Step 1-2: 64 ft-
lbs (87 Nm)Step 3: 5 ft-lbs (7 Nm)Step 4-7: 44 ft-lbs
(60 Nm)
12. Remove the clutch center distance tool.
13. Torque the (4) front engine mount fasteners (A) to
specification.
TORQUE
Front Engine Mount Fasteners:40 ft-lbs (54 Nm)
14. Remove the lifting straps and overhead or portable
engine hoist.
15. Install the breather hose onto the crankcase at the
front of the engine.
16. Install the (2) coolant hoses onto the engine.
17. Install (+) positive cable to the starter motor and (-)
negative cable to the starter motor mounting bolt.
18. Install the intake plenum and throttle body assembly.
Place the intake plenum runners into the cylinder
head intake adapters.
NOTE
Be sure the intake plenum runners are fully seated in
the intake adapters before tightening the hose clamps.
