19. Tighten the hose clamps to specification.
TORQUE
Intake Plenum Hose Clamps:35 in-lbs (4 Nm)
20. Install the fastener securing the bottom of the intake
plenum to the rear transmission mount. Torque
fastener to specification.
TORQUE
Lower Intake Plenum Fastener:22 ft-lbs (30 Nm)
21. Lightly lubricate both fuel injector O-rings and install
the fuel injector / fuel rail assembly.
NOTE
Take care not to damage the O-rings upon installation.
22. Install the (2) bolts that retain the fuel rail assembly
to the intake plenum and torque bolts to
specification.
TORQUE
Fuel Rail Mounting Bolts:89 in-lbs (10 Nm)

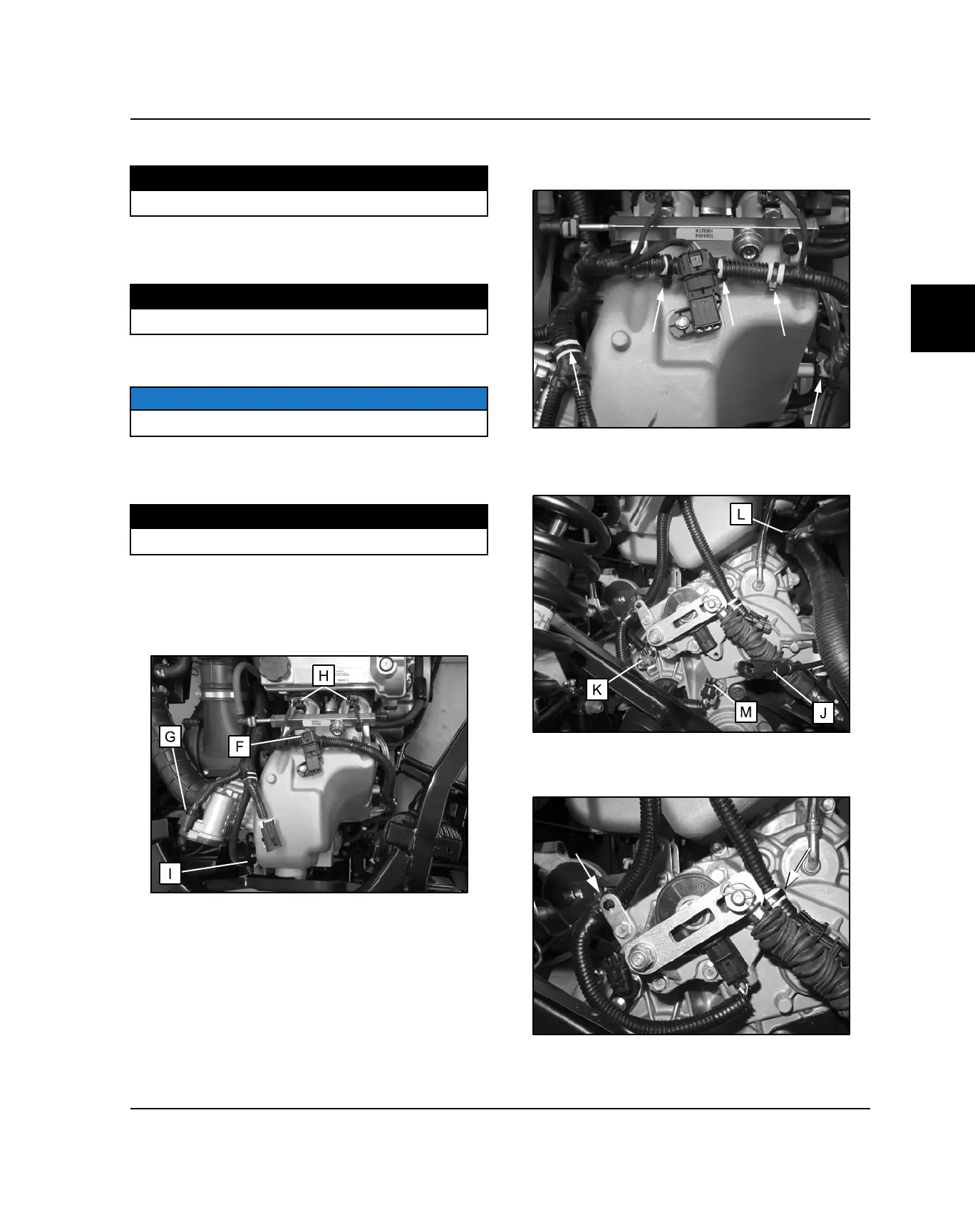

23. Connect the stator harness at the front of the engine.
24. Connect the vehicle harness to the T-MAP sensor
(F), ETC (G), fuel injectors (H), rear differential relay
and rear differential solenoid (I).
25. Install (5) new plastic tie straps to retain the harness
to the intake plenum.
26. Connect the CPS (J), vehicle speed sensor (K), ECT
sensor (L) and transmission switch (M).
27. Install (2) new plastic tie straps to retain the harness
to the transmission.
