Polaris RANGER ETX 2015 - DRIVEN CLUTCH SERVICE

5.26
9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
DRIVEN CLUTCH SERVICE

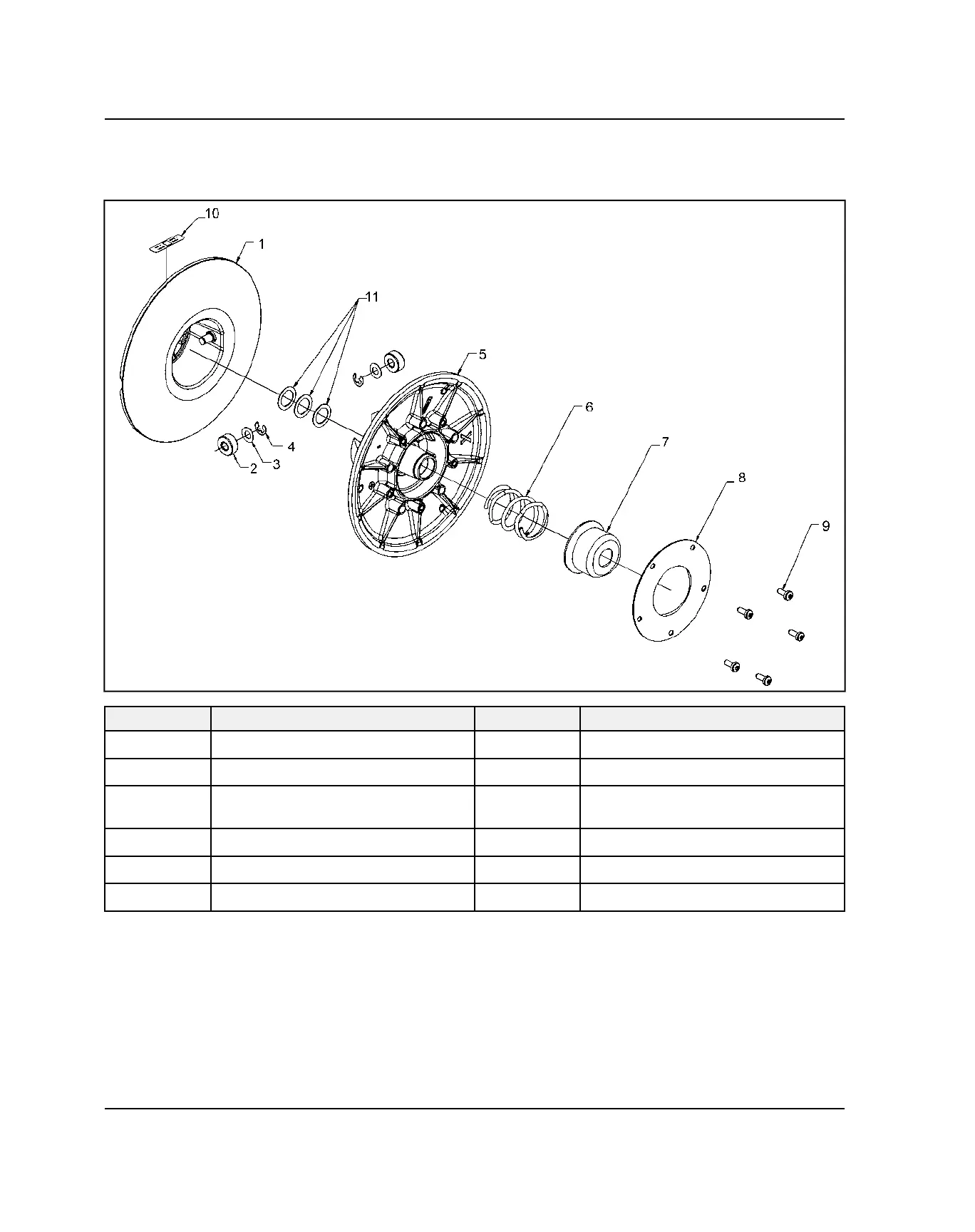

ASSEMBLY VIEW
REF DESCRIPTION REF DESCRIPTION
q
Subassembly, Stationary Boss
u
Cup, Spring Boss
w
Roller, Clutch
i
Plate, Retainer
e
Washer, Thrust
o
Screw
9 ft-lbs (12 Nm)
r
Ring, Retaining E-Ring External
a
Label, Clutch Boss
t
Subassembly, Moveable Boss
s
Washer, Thrust
y
Spring, Compression
PVT SYSTEM
