9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
7.15

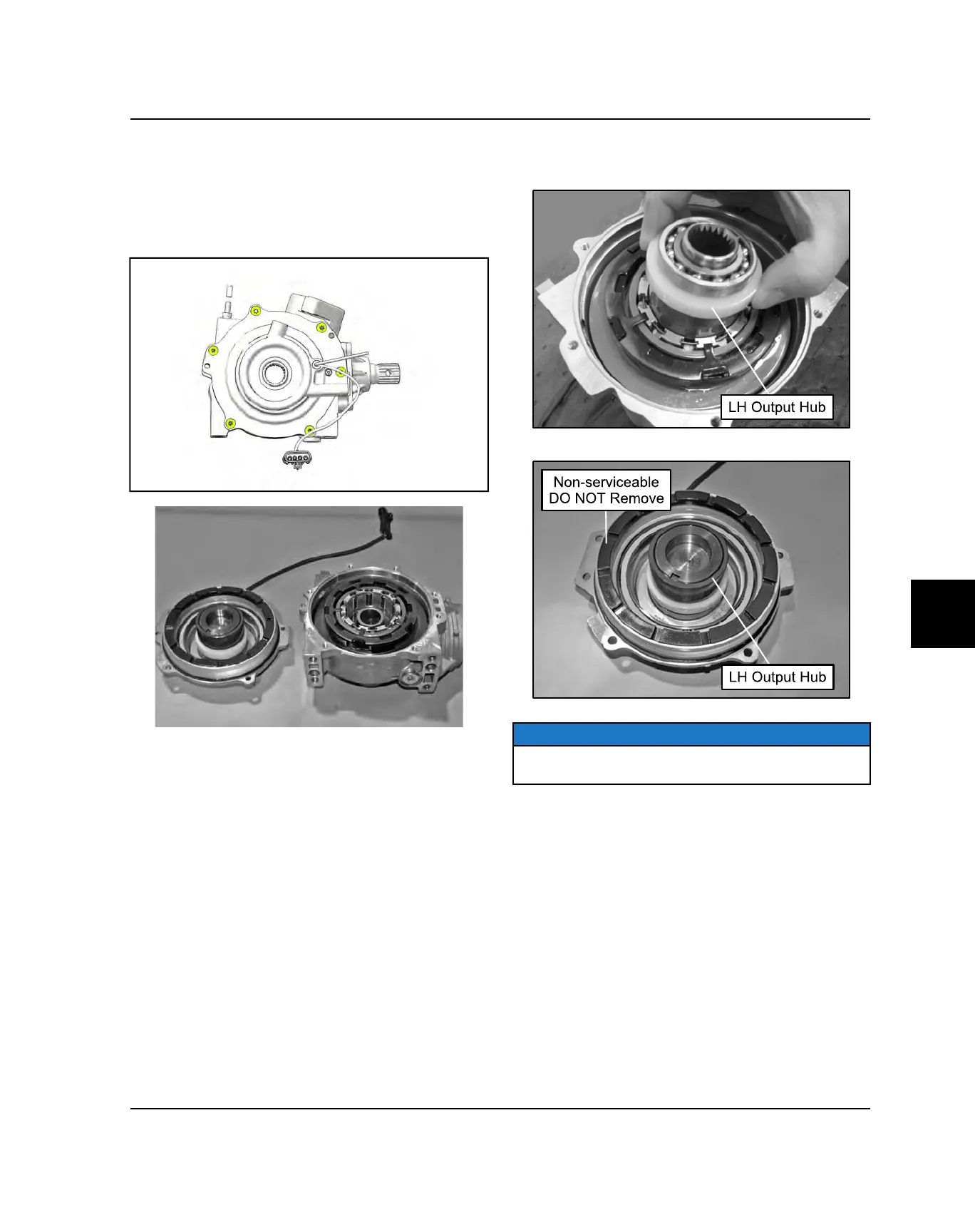

GEARCASE DISASSEMBLY / INSPECTION
1. Drain and properly dispose of gearcase fluid.
Remove any metal particles from the drain plug
magnet.
2. Remove the (7) cover screws and remove the cover
plate assembly.
3. Remove the LH output hub assembly from the clutch
housing or outer cover plate assembly.
NOTE
Nylon spacer is non-serviceable and should not be
removed.
FINAL DRIVE
