Polaris Sportsman 400 - Typical Ignition Timing Curve

ELECTRICAL
10.5

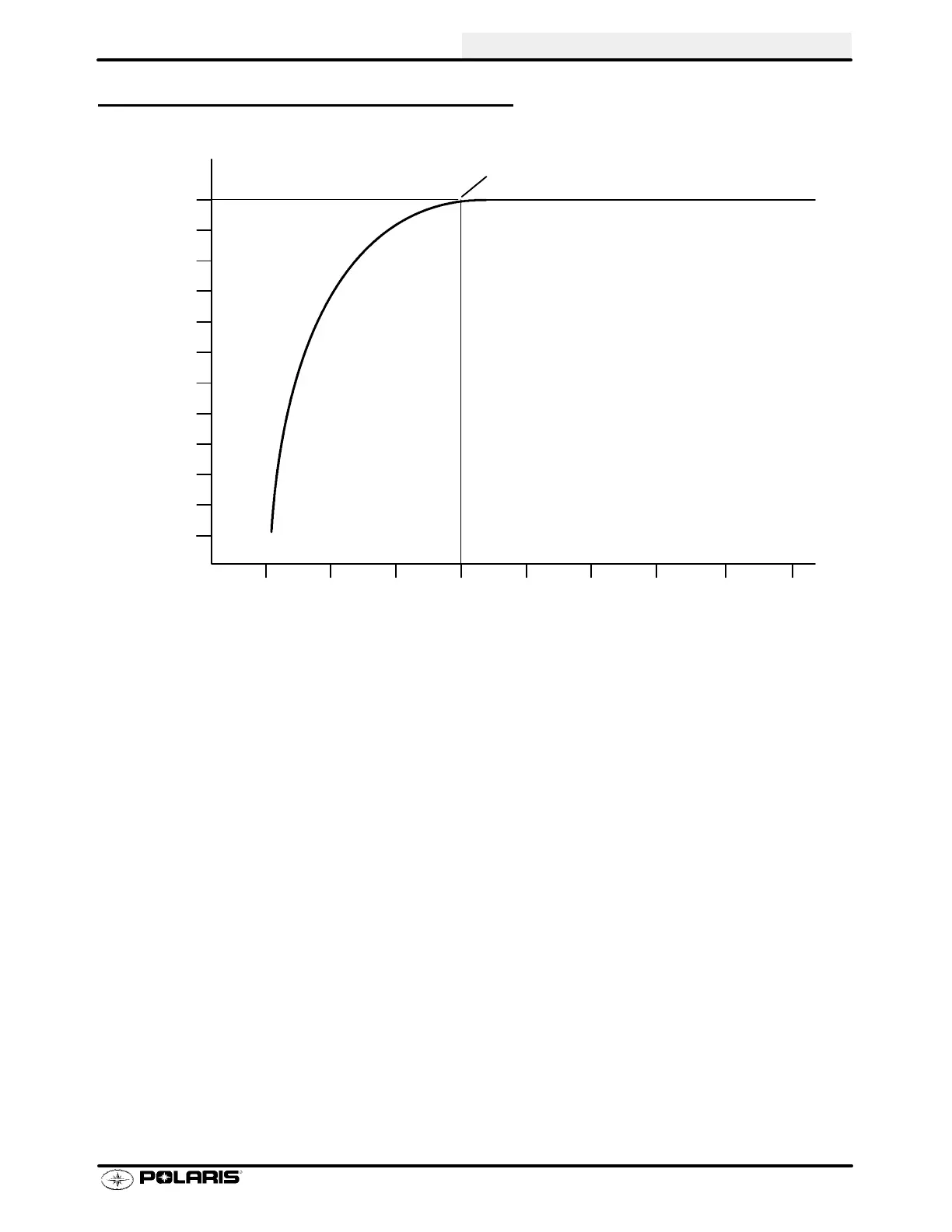

TYPICAL I GNITION TIMING CURVE
*Actual advancepointmayvarybyseveralhundredRPMeitheraboveorbelow3500. Usethepoint of maximum
advance when checking ignition timing.
8
10
12
14
16
18
20
22
24
26
28
30
IGNITION TIMING (DEGREES) B.T.D.C.
MAXIMUMADVANCE POINT (*)
0 1000 2500 3000 3500 4000 4500 5000 5500 6000
