BRAKES
9.9

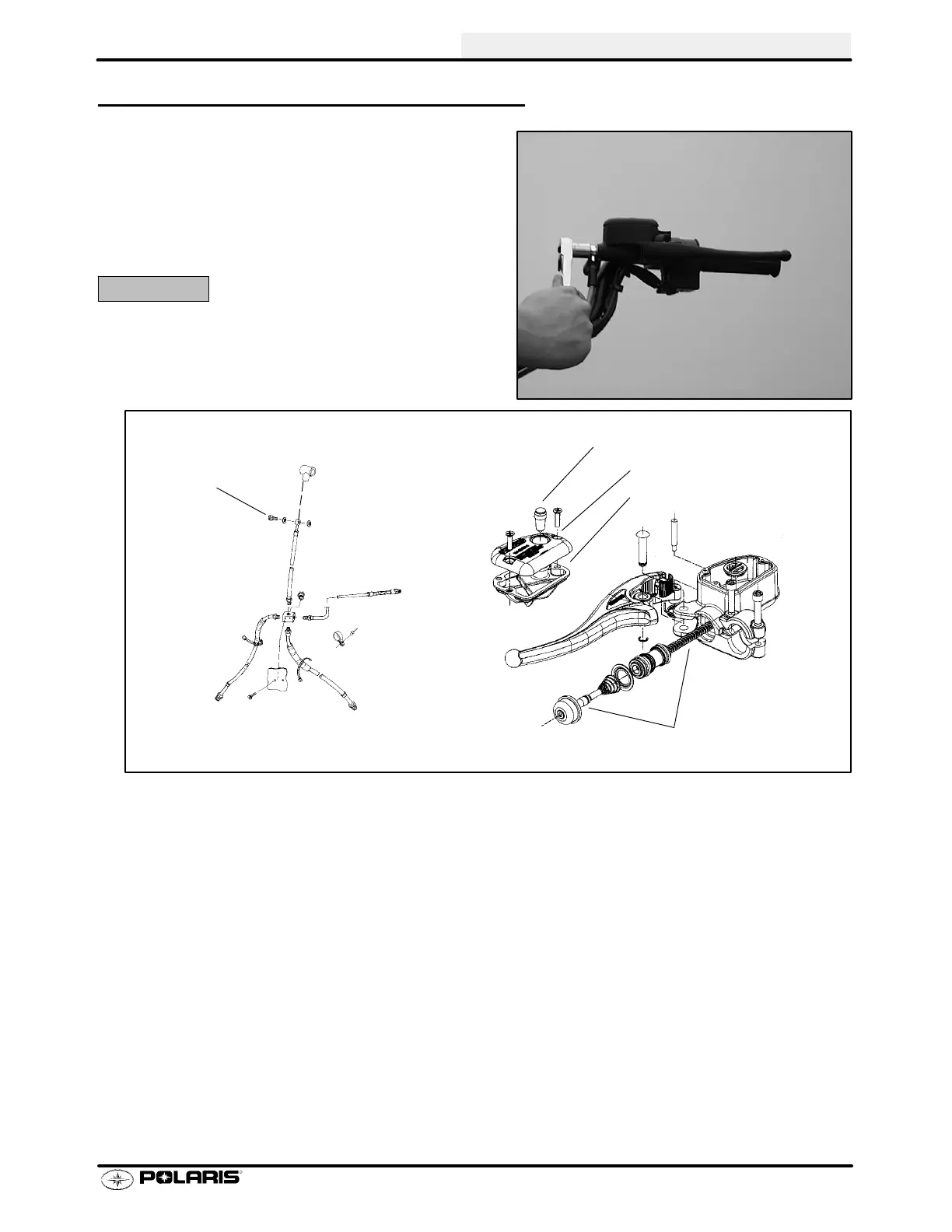

MASTER CYLINDER DISASSEMBLY
1. Clean master cylinder and reservoir assembly. Make
sureyouhaveacleanworkareatodisassemblebrake
components.
2. Place a shop towel under brake line connection at
master cylinder . Loosen banjo bolt; remove bolt and
sealing washers.
CAUTION:
Brake fluid will damage finished surfaces. Do not allow
brake fluid to come in contact with finished surfaces.
3. Remove master cylinder from handlebars.
Banjo Bolt
Master Cylinder
Piston Assy
Cover
Diaphragm
Sight Glass
To Next Page
