CLUTCH
6.10

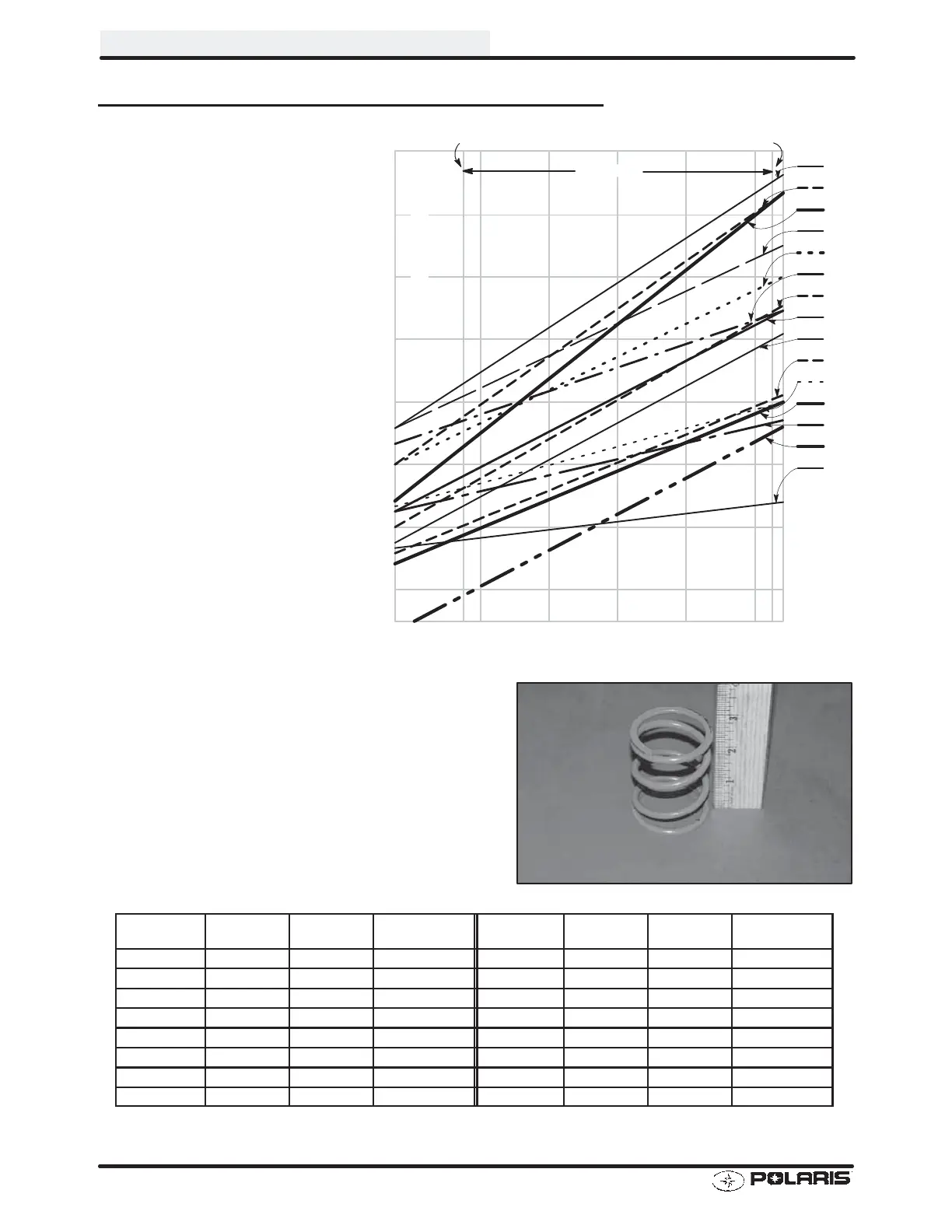

DRIVE CLUTCH SPRING SPECIFICATIONS
The drive clutch spring has two prima-
ry functions:
1. To control clutch engagement
RPM. The springs which have a
higher rate when the clutch is in
neutral will increase clutch
engagement RPM.
2. To control the rate at which the
drive belt moves upward in the
drive clutch sheaves. This is
referred t o as drive clutch upshift.
There are other components which
control upshift, but the spring is one of
the primary components in insuring
optimum performance. It is very im-
portant that the spring is of the correct
design and is in good condition.
CAUTION: Never shim a drive clutch
spring to increase its compression
rate. This may result in complete
stacking of the coils and subsequent
clutch cover failure.
The drive clutch spring is one of the
most critical components of the PVT
system. It is also one of the easiest to
service. Due to the severe stress the
spring is subject to during operation, it
should always be inspected for toler-
ance limits during any clutch operation
diagnosis or repair.
With the spring resting on a flat surface, measure its free
length from the outer coil surfaces as shown. Refer to
the spring specification chart for specific free length
measurements and tolerances. Also check to see that
spring coils are parallel to one another. Distortion of the
spring indicates stress fatigue, requiring replacement.
PART
NUMBER
COLOR
CODE
WIRE
DIAMETER
FREE LENGTH
¦.125I
PART
NUMBER
COLOR
CODE
WIRE
DIAMETER
FREE LENGTH
¦.125I
7041021 Plain .157I 4.38I 7041102 Yellow .192I 2.92I
7041022 Black .140I 4.25I 7041061 Brown .200I 3.06I
7041063 Purple .168I 4.37I 7041132 White .177I 2.92I
7041062 Silver .208I 3.12I 7041168 Green .177I 3.05I
7041065 Pink .177I 4.69I 7041148 Gold .207I 3.25I
7041060 Orange .196I 3.37I 7041150 Red/White .192I 3.59I
7041080 Blue/Gold .207I 3.50I 7041157 Blue/Green .177I 2.53I
7041083 Red .192I 3.77I
2.5 2.25 2.00 1.75 1.50 1.25 1.19
0
20
40
60
80
100
120
140
160
180
200
220
240
260
280
300
ATV TRAVEL
COMPRESSED SPRING LENGTH (INCHES)
Blue/Blue-
Gold
7041080
Gold
7041148
Silver
7041062
Red
7041083
Red/White
7041150
Brown
7041061
Orange
7041060
Pink
7041065
Yellow
7041102
Green
7041168
Purple
7041063
White
7041132
Plain
7041021
Black
7041022
NEUTRAL
FULL UPSHIFT
Blue/Green
7041157
FORCE (POUNDS)
