BRAKES
9.10
MASTER CYLINDER INSPECTION
1. Clean the master cylinder assembly with clean Dot 3
brake fluid, brake parts cleaner, or denatured alcohol.
Dry thoroughly. Inspect the bore for nicks, scratches
or wear . Replace if damage is evident or if worn.
2. Inspect parking brake for wear. If teeth or locking cam
are worn, replace lever .

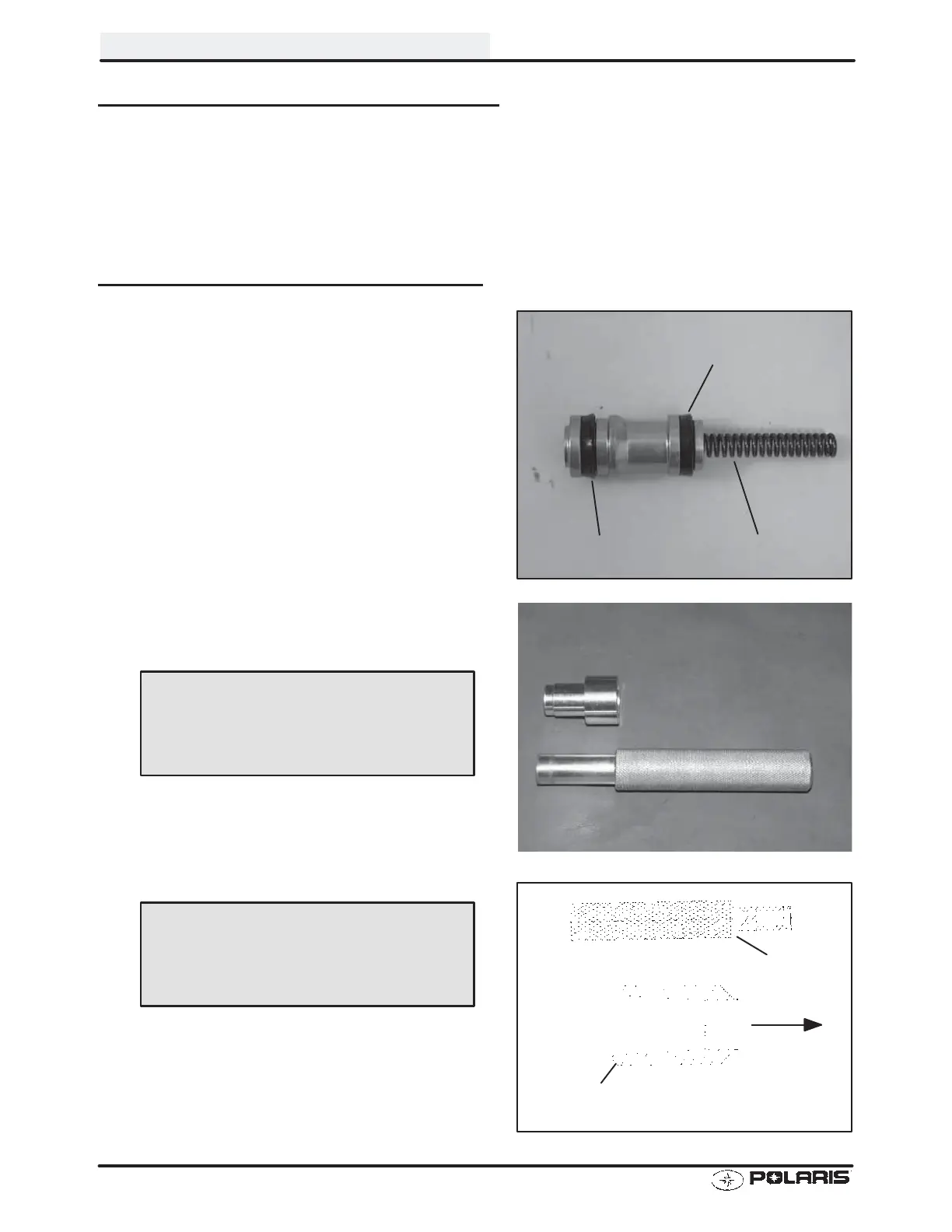

MASTER CYLINDER ASSEMBLY
1. Install new primary and secondary seals on the piston.
2. Select the appropriate master cylinder piston
installation tool and insert into master cylinder bore.
Primary Seal
Secondary Seal
Return Spring
Components of Kit 2200879
2201190
2201191
Components of Kit 2201177
Plunger
Handle
Installation
Tool
Insert in
Master Cyl-
inder Bore
Type IV Master Cylinder (Hand Brake)
.750 (19mm)
Installation Tool #2200879
Master Cylinder (Aux. Brake)
.500 (13 mm)
Installation Tool #2201177
