Polaroid 100 Series User Manual

-
,
Inst.'rt tOQI #169456 over the lens retlliner
Models 104. 125.210.215.220.225.315 &; 320
and (wjst gently until the retainer js free
(Duplet LellSe5l;
-
t Figure 5~ 18).
-
-
-
-

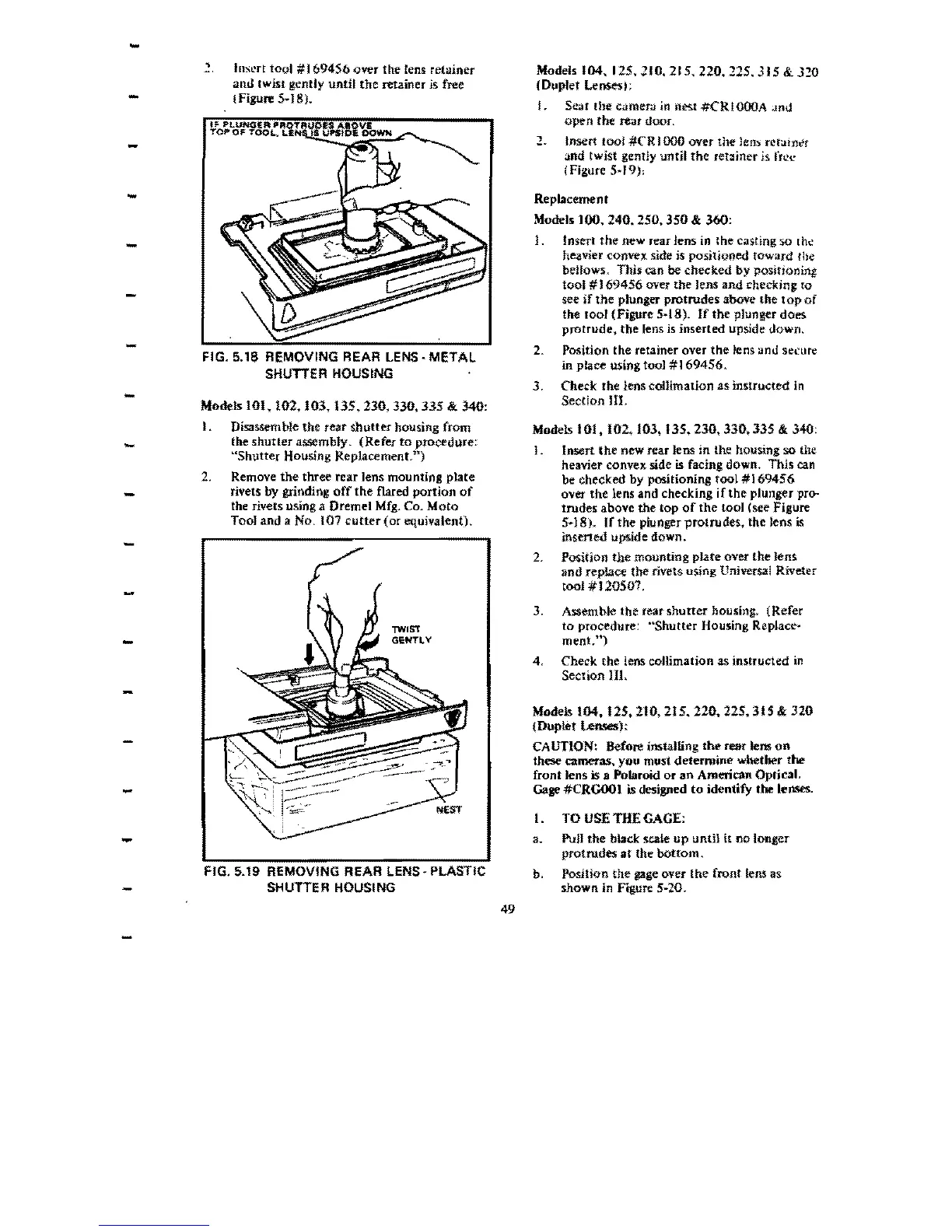

FIG. 5.18 REMOVING REAR LENS·METAL
SHUTTER HOUSING
-
Models 101. 102.103. 135. 230. 330. 335 &; 340:
J. Disassemble the rear shutter housing from
the shutler assembly. (Refer to procedure:
"Shutter Housing Replacement.")
2. Remove the three rear lens mounting plate
-
rivets by grinding off the flared ponion of
the rivets using a Dremel Mfg. Co. Moto
Tool and a No. 107 cutter (or equivalent).
-
-
-
TW''''
GENTlY
FIG. REAR LENS· PLASTIC
SHUTTER HOUSING
L
St!'.It the cnmcm in nest #CRIOOOA .Hld
open the rear door.
2. Insert fool #(,R I 000 over the len::. rNaint'f
and twist gently until the retainer is frc!.."
I Figure 5·19),
Replacement
Model. 100. 240. 250. 350 &; 360:
1. Insert the new rear lens in the casting so lht:
heavier convex. side is positioned toward fhe
beilows"
This can be check.ed by positioning
tool # J 69456 over the lens and checldng to
see if the plunger protrudes above the top of
the tool (Figure 5~lg). ff the plunger does
protrude, the lens is inserted upside down,
2. Position the retainer over the lens and secure
in
place using tool # 169456.
3. Check rhe lens collimation as instructed in
Section HI.
Models 101, 102,103, 135.230.330,335 &; 340:
1. Insert the new rear lens in the housing so the
heavier convex- side is facing down. ThIs can
be checked by positioning tool #169456
over the lens and checking if the plunger pro-
trudes above the top of the tool (see Figure
5~18). If the piunger protrudes. the lens is
inserted upside down.
2. Position the mounting plate over the lens
and replace the rivets using Universal Riveter
tool # 120507.
3. Assemble the rearshurter housing, (Refer
to procedure: "Shutter Housing Replace-
ment,")
4. Check the lens collimation as instructed in
Section 111.
Models 104. 125,210.215.220, 225.315 & 320
(Duple! l.eru;es):
CAUTION: Before instaJling the rear rens on
these cameras, you must determine whether the
fronl lens is a Polaroid or an American Optical,
Gage #CRGOOI is designed to identify the lenses.
I. TO USE THE GAGE:
a. Pun the black scale up until it no longer
protrudes at the bottom.
b. PosHlon the gage over the front lens as
shown in Figure 5-20.
49
