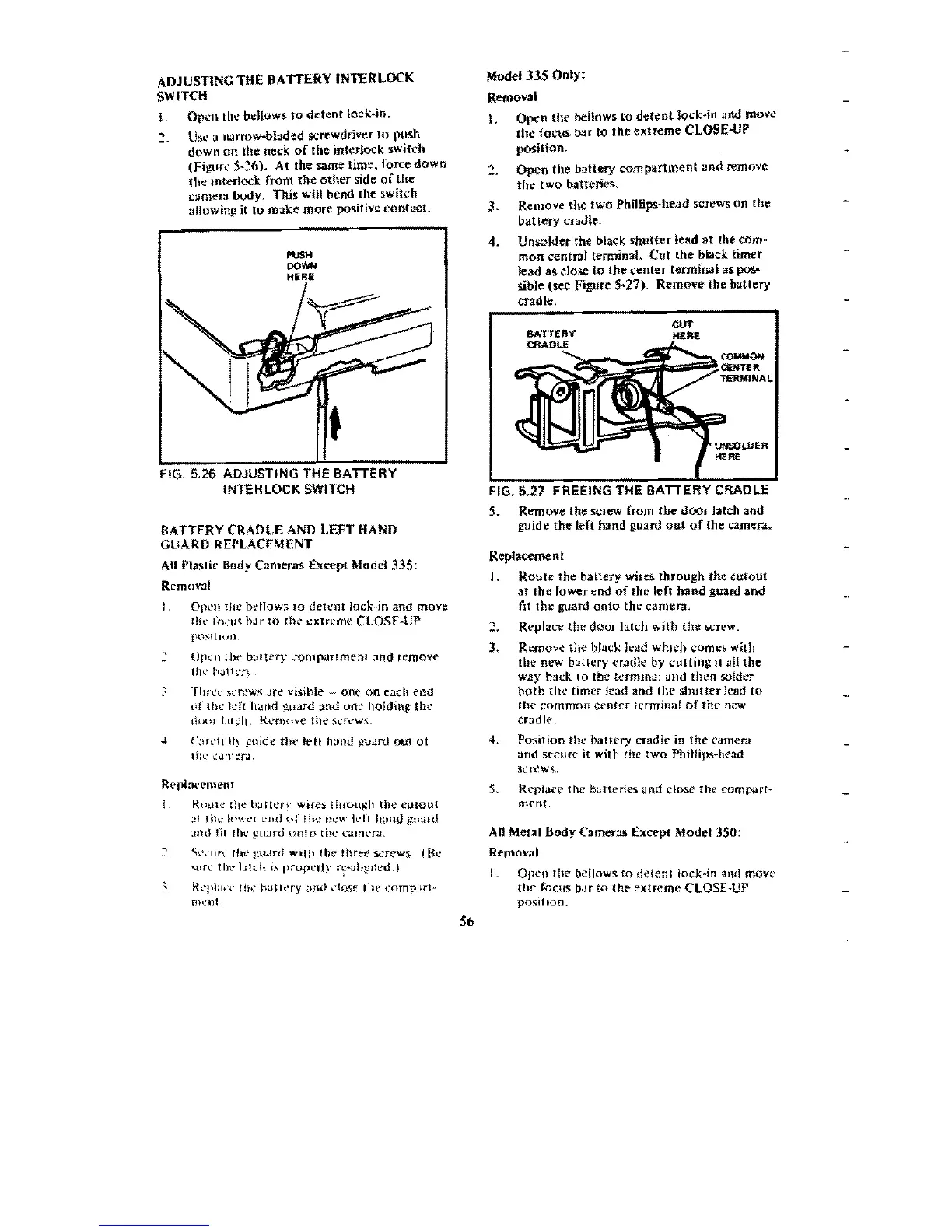

ADJUSTING THE BAtTERY INTERLOCK
SWITCH
I. Op~n Hie beHows to detent lock~in,
., US(., a n;Jrrow-bladed screwdriver to push
down on the neck of the interlock switch
(Fii!urc 5~:!6). At the same Hme. force down
the interlock front the other side of the
ClJOlCr.J body. This wUl bend the switch
allowing it to make more positive contaCt.
PUSH
OOWN
FIG. 5.26 ADJUSTING THE BATTERY
INTERLOCK SWITCH
BATTERY CRADLE AND LEFT HAND
GUARD REPLACEMENT
All Plaslic Body Cameras Except Model 33S:
Remvv:Jf
I. Opel! the bcllows 10 deh.'ut lock-in and move
til\" fol.-'us biJr to the ex.treme CLOSE-UP
pos.ilion.
OJl~'n Ill ... baltery ... ·ompilTlmeni and remove
tJw \1>1\11.'1).
Thr .... l· "a"ws ilrc vis.ible one on each end
HI" lilt' kff hand ~l:Uard and om~ ho!dil\F the
door lard1. RCIlH've th ... so.;r .... w<;.
ClrduHy guide tilt' lelt h:md guard QUI of
tb~' .:amt!ri.l.
Relll:"ll'l:ment
1, RpUlc Ih~ h:.Jftcry wires Ihrough the eiJlOUI
;d Ilk" It~\\~'r l'll(j til' till: n..:w kf, Iwnd guard
,!lid III trW ~Ll~rd 1.11110 the l.:um,:rl1.
SV,-lIr~' lh~' l::lli.lrd with Ihe three screws.. j B~'
"ure thl"luld, i", propl'rly r~.JljgJ1.:d.)
RL'l'l<ll'l" 111 .. - naHery ~nd dose Iht: compart-
111.:n1.
BAli'EAY
FIG. 5.27 FREEING THE BATTERY
Model JJS Only:
Removal
1. Open the bellows to detent Jo;:k-in <IItd move
tht" focus bar to the extreme CLOSE..lJP
position.
2. Open the banery compartment :md remove
the two batteries.
3. Remove the two Phillips-head scn:ws on the
b<tltery cradle.
4. Unsolder the black shutter lead at the com~
mon central terminal. Cut the bbck timer
lead as. close to the center terminal as: pos-
sible (see Figure 5 ... 27). Remove the battery
cradle.
CUT
5. Remove the screw from (he dOOr latch and
guide the left hand guard out of the camera.
Replacement
I. Route the battery wires through the cutout
at the lower end of the left hand guard llnd
flt the guard onto the camera,
Replace the door latch with the screw.
3.
Remov .... the black le:.ld which comes with
the new b;}Hery cf3dle by cutting it ~II the
way b;u.:k 10 the t .... rmmJI Jlld then soldt:r
both the timer lead and the shuHer lead to
the common tenter terminal of the new
cradic.
4. Po!>ition thl." battery cradle in the came,J
tlnd 5t'cure it with the two PhHlips~head
screws.
$, Repl,u:e the batteries ilnd close the CQmP<J.rt~
ment.
All Metal Body Camerns Except Model 350:
Removul
I. Open the bellows to delent iock~in >lnd mow
the focus bar to the extreme CLOSE·t!P
position.
56
