mat;~)g (h~'lwt-'\.·n lhl.' 4-fOlH targ~l and thl.:"
infinil) 'tarf?\,'o. alwnys com prom is..' in favor
of Ihe inlinJty reading.
JJ. S!:CUfC thi..' fronllens to the moun' by <lpply-
jne tim .. '!..' drops of shellac at equktistant
points around the lens. 00 NOT DRIP
SHELLAC ONTO THE LENS.
i4. Perfonn any necessary Rangefinder/Vjew~
finder adjustments.
REPLACEMENT OF CANTILEVER ASSEMBUES
AND HOUSINGS IN POLAROID RF/VF
Remom
1. Remove the RF NF from the camera accord-
ing to previous instructions.
2. Remon the rear window plate assembly.
Broken glass in the rear window assernbty
may be replaced at this point. Thoroughly
clean the area of the window frame, removIng
any remaining glass fragments. Apply heat
to open the plastic heat seals. Spread Dupont
Duco cement sparingly around the window
frame and gently press the new window into
pJace. Wipe any excess cement away illl-'
rnedjately.
3, Remove the cantilever assembly from the
housing. On some models the assembly is
held by a cantilever
screw and nut. On other
models, the assembly is heJd by a rivet and a
locating pin (see
Figure 5-55), On riveted
models. use special tooJ til 1397 to remove
the rivet. (Pry up the metal band on folding
models
before lifting the assembly out of the
housing.)
Broken glass
on tbe housing may be replaced
al this
point. only on foldlng models. Fol-
low tbe instructions given abo\le for replacing
g:lass in the housing.

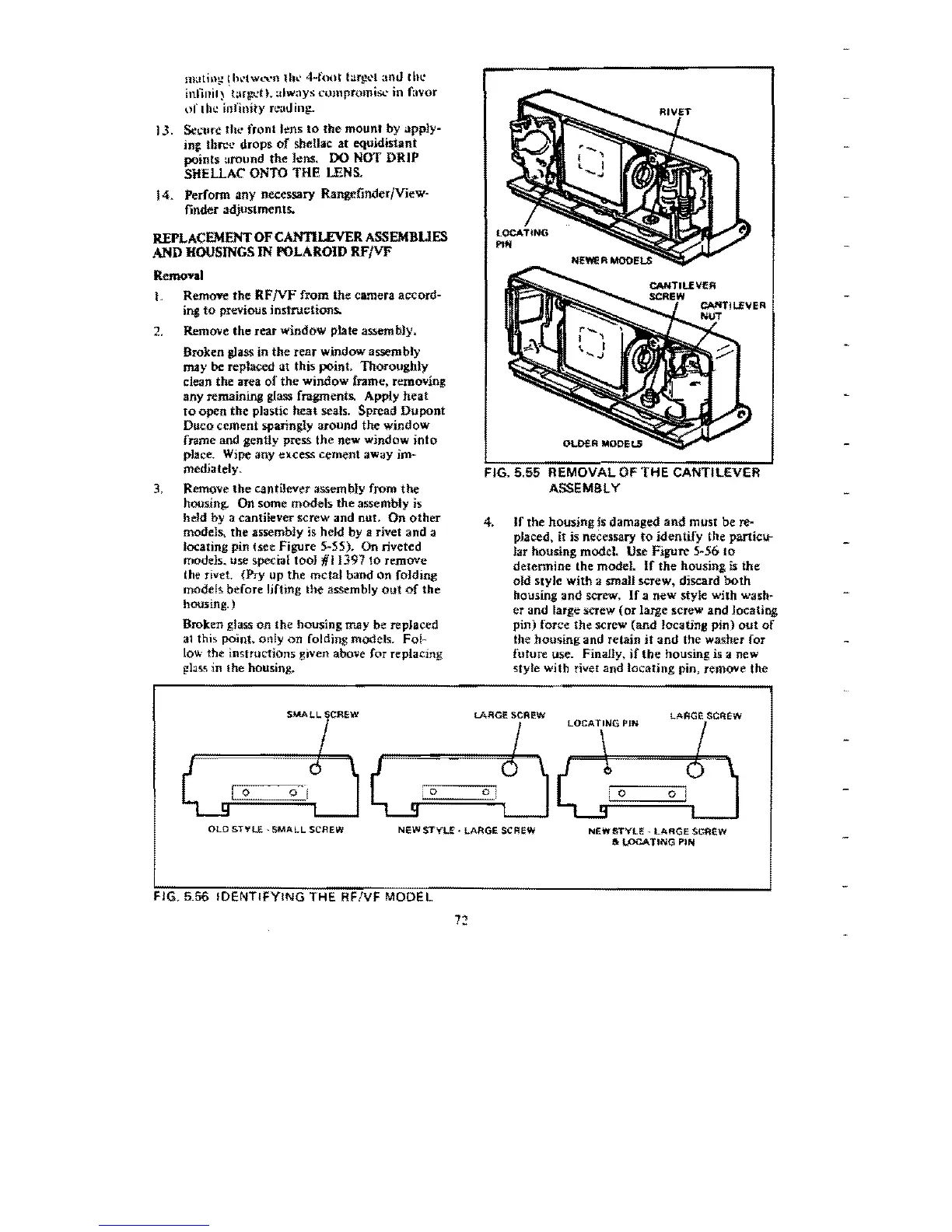

FIG. 5.56 REMOVAL OF THE CANTILEVER
A56EMBLY
4. If the housing is damaged and must be re-
pJaced, it is necessary to identify tbe particu-
lar
housing model. Use Figure 5·56 to
determjne the mode!. If the housing is the
old style with a small screw, discard both
housing and screw, If a new style with wash--
er and large screw (or large screW and locating
pin) force the screw (and locating pin) out of
the housing and retain it and the washer for
future use. Finally, if the housing.is a new
style with rivet and locating pin, remove the
SMA L L SeRE: W
LARGE SCREW
LARGE SCFt£W
o
,0
LOCATING PIN
o
01
OLD STYLE· SMALL SCREW
NEW STyLE· LAFlGE SCREW
NEW
STYLE· LARGE SCREW
&
LOCATING PIN
FIG. 5.56 IDENTIFYING THE RFNF MOOEL
