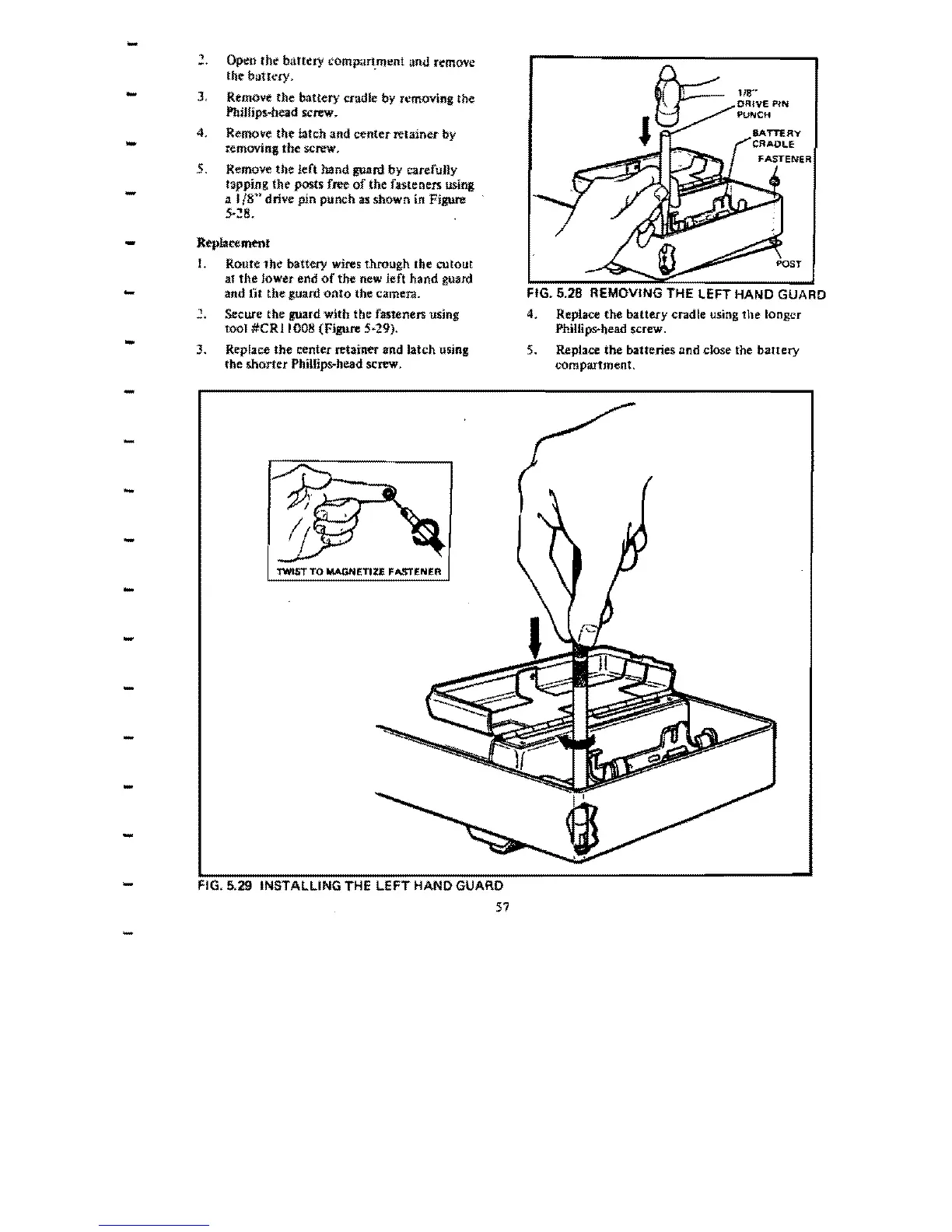

Open the battery compartment and remove
the battery. .
-
3,
Remove the battery cmdle by removing the
l'hillips-bead screw.
-
4.
Remove the latch and center retainer by
removing
the screw,
5,
Remove
the left hand guard by carefuJIy
tapping
the posts free of the fasteners using
-
i1 I/S
H
drive pin punch as shown in Figure
5~:!8.
-
Replacem .... t
J. Route the battery wires through the cutout
at
the lower end of the new left hand guard
-
and
lit the guard onto the camera.
,
Secure the guard with the fasteners using
tool
IICR1I008 (Figure 5·29).
3.
Replace the center retainer and latch using
the shorter PhiUips--head screw.
-
-
-
-
-
-
-
-
-
-
",-
DRiVE pm
PUNCH
eATTEflY
CRADl.E
FASTENER
FIG. 5.28 REMOVING THE lEFT HAND GUARD
4. Replace the battery cradle using the longer
PhiUips--head screw.
S. Replace the batteries and close the battery
compartment.
TWIST TO MAGNETIZE FASTENER
- FIG. 5.29 INSTALLING THE LEFT HAND GUARD
57
-
