o LEVER
o
-
POStTIQN ARROW BETWEEN
-
POINTS A AND B
-
-
-
o
o
-

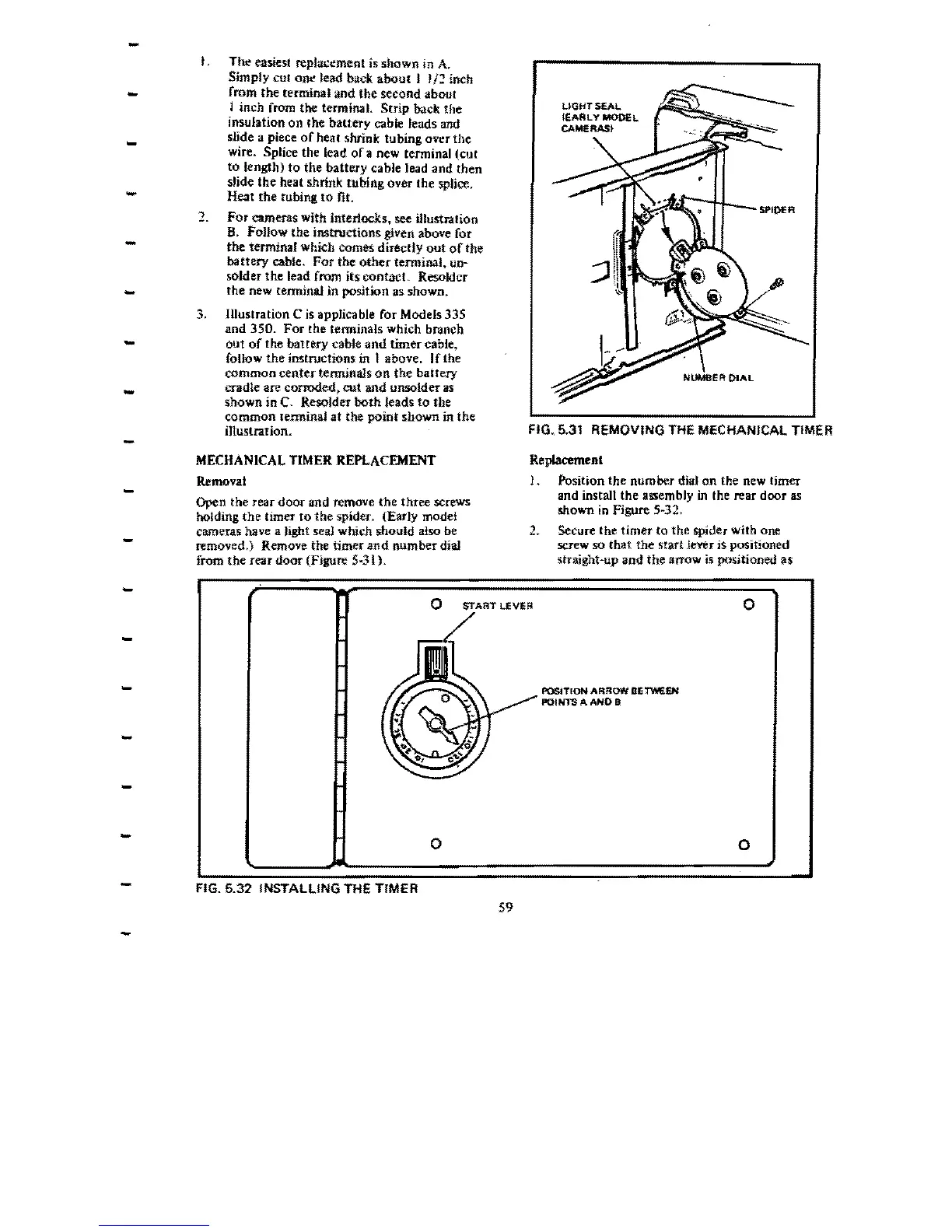

FIG. 5.32 INSTALLING THE TIMER
59
-
L
The easiest repla.:cment is shown in A.
Simply cut one lead back about I JI'! inch
from the rermina. and the second about
-
I inch from the terminal. Strip back the
insulation on $he battery cable leads and
slide a piece
of heat shrink tUbing over the
-
wire. Splice the lead ofa new terminal (cut
to length) to the baUery cable lead and then
slide the heat shrink: tubing over the splice,
Heat the tubing to fit.
-
2.
For cameras with interlocks, see illustration
B.
Fonow the instructions given above for
-
the terminal which comes directly out of the
battery cable, For the other terminal. un-
solder
the lead from its contact. Resoldcr
-
the new terminal in position as shown.
3. Illustration C is applicable for Models 335
and 350. For the terminals which branch
out of the battery cable and timer cable.
-
follow the instructions in 1 above, If the
common center tennina1s on the baUery
cradle are corroded, cut and unsolder as
-
shown in C _ Resolder both leads to tbe
COmmon tenninal at the point shown in the
illustration.
-
MECHANICAL TIMER REPLACEMENT
Removal
-
Open the rear door and remove the three screws
holding
the timer to the spider _ (Early model
cameras have a Ught seal
which should also be
-
removed,) Remove the timer and number diaJ
from
the rear door (Figure 5<~ I),
UGHTSEAL
IEARLY MODEL
CAMERAS.
FIG,5.31 REMOVING THE MECHANICAL TIMER
Replacement
1. Position
the number dial on the new timer
and install the assembly in the rear door as
shown in Figure 5
M
32.
2. Secure the timer to the spider with one
screw
so that the start lever is positioned
straight-up
and the arrow is positioned as
