5.9.6 Multiple Ducted Systems
In multiple AC scenarios, the installation may be one ducted system or multiple
separate ducted systems. If multiple ACs supply conditioned air to the same
ducted system, this is classied as one ducted system and all ACs will have the
same spill and Turbo settings. If each AC has its independent supply and return air
ducts, it’s classied as Multiple Ducted System. In this case each AC will have its
own spill and Turbo settings. It’s up to the installer to choose one ducted system or
multiple ducted system.
5.9.7 Groups connected in each ducted system
In Multiple ducted systems, installers have to dene the group numbers for each
ducted system. The group number for each ducted system will help protect each
system from potential blown-out (by spilling) and set up separate Turbo group.

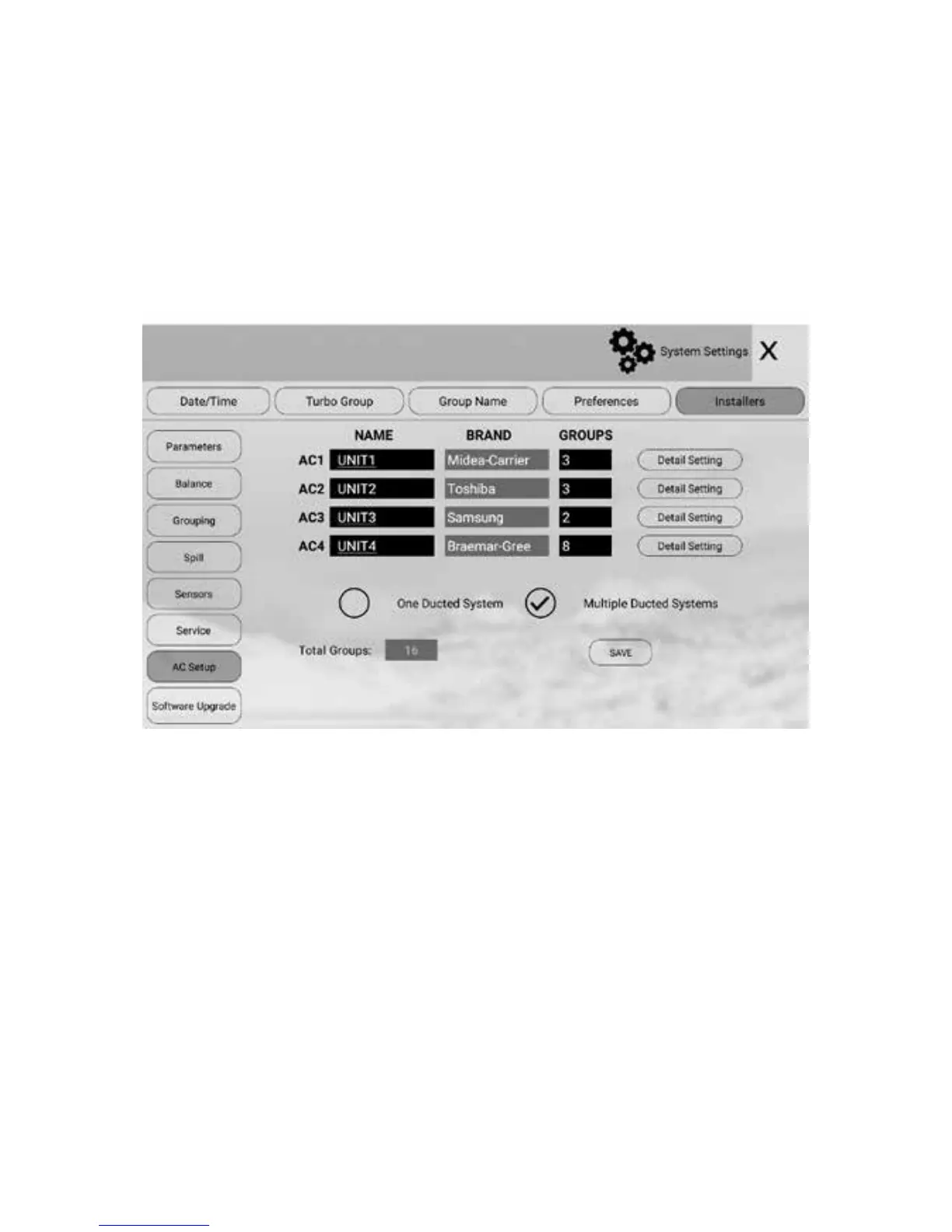

All zones from all ACs will be connected to the main module. If there are more
than 8 zones, the zones after 8 will be connected to the extension module in
sequential order. Touch Save button to save.
