SoundPoint IP 650 Quick Start Guide

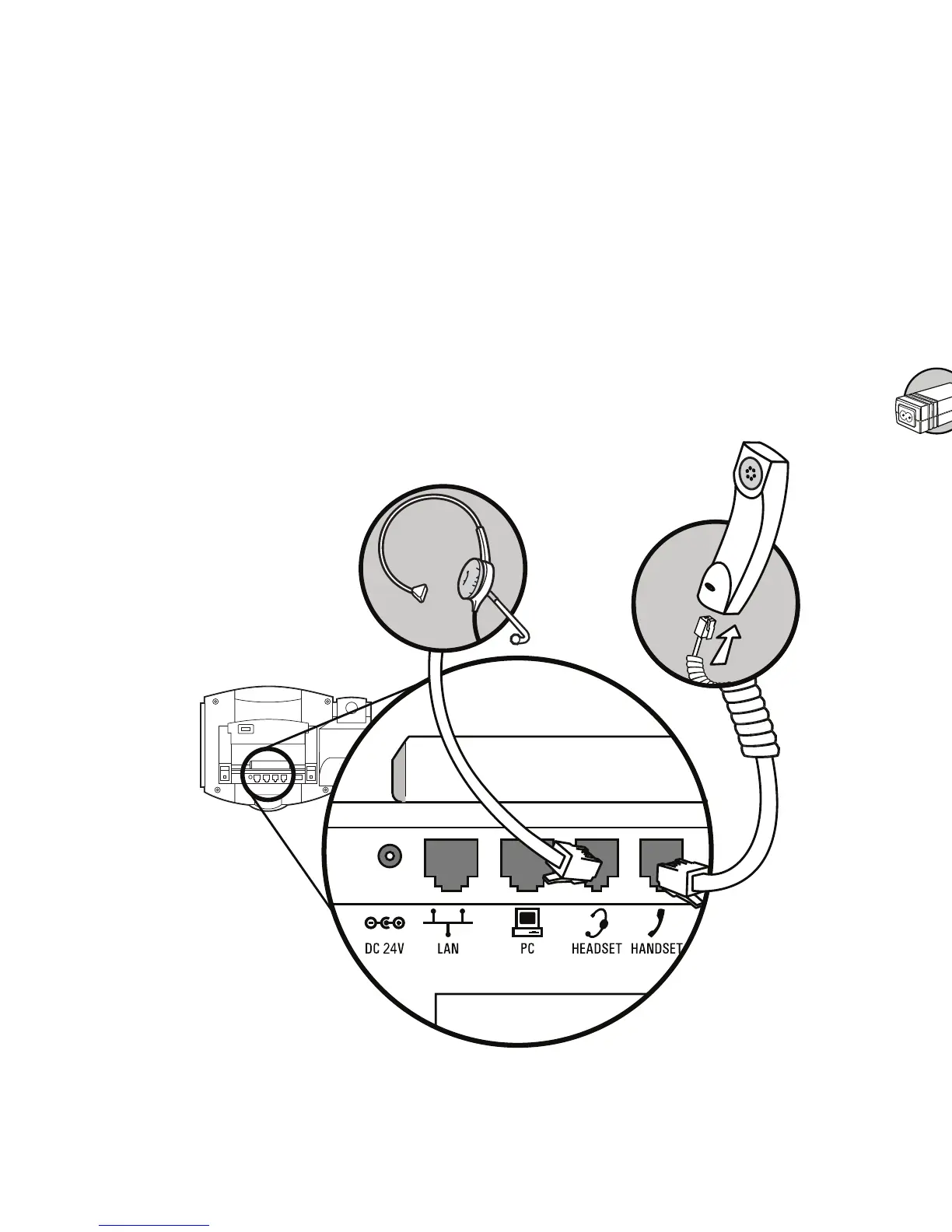

1. Connect handset and headset, as shown below.
(Note: Headset is an optional accessory, and is not included with this package.)
Connect Cables
2. Connect network and power, as shown below.
Note: Choose either AC Power Option, or PoE (Power over Ethernet).
IEEE802.3af compliant
Hub/Switch
AC Power Option
PoE Option
Deskmount Method
Align base stand tabs
with their correspond-
ing insertion points on
the phone (as shown).
Snap base stand into
place (as shown).
Ensure all cables are
secured (as shown).
Attach Base Stand
SoundPoint IP 650 Quick Start Guide
1. Connect handset and headset, as shown below.
(Note: Headset is an optional accessory, and is not included with this package.)
Connect Cables
2. Connect network and power, as shown below.
Note: Choose either AC Power Option, or PoE (Power over Ethernet).
IEEE802.3af compliant
Hub/Switch
AC Power Option
PoE Option
Deskmount Method
Align base stand tabs
with their correspond-
ing insertion points on
the phone (as shown).
Snap base stand into
place (as shown).
Ensure all cables are
secured (as shown).
Attach Base Stand
Guided Setup
Connect Cables
Please follow the diagram to install your phone. Once plugged in, the
phone will automatically download its conguration and start to work.
Once the phone has been plugged in and operational, the voicemail box
is functional with a default greeting.
Note: Headset is an
optional accessory,
and is not included
with this package.
To Next Page
