Polycom SoundPoint IP 550 Quick Start Guide

5
SoundPoint IP 650 Quick Start Guide
1. Connect handset and headset, as shown below.
(Note: Headset is an optional accessory, and is not included with this package.)
Connect Cables

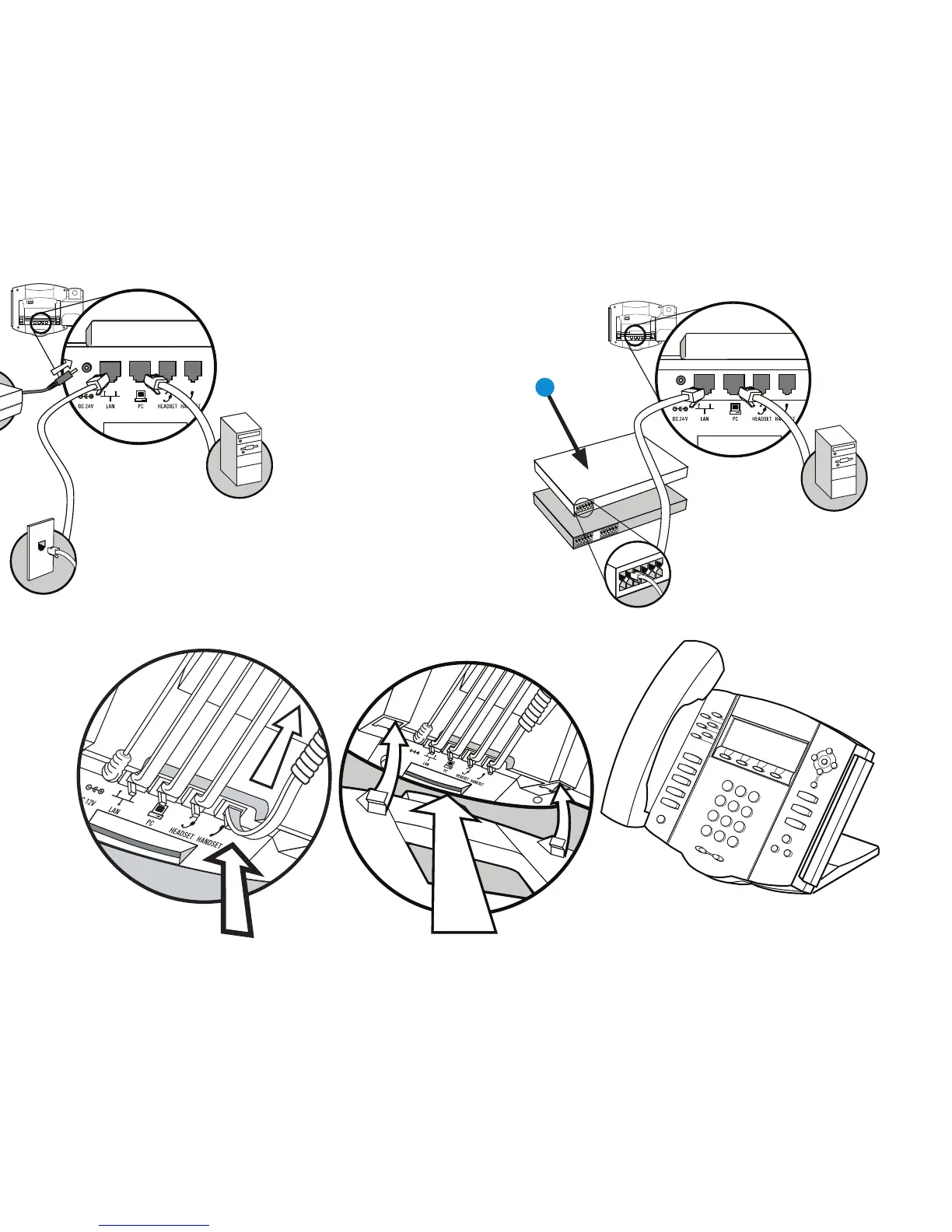

2. Connect network and power, as shown below.
Note: Choose either AC Power Option, or PoE (Power over Ethernet).
IEEE802.3af compliant
Hub/Switch
AC Power Option
PoE Option
Deskmount Method
Align base stand tabs
with their correspond-
ing insertion points on
the phone (as shown).
Snap base stand into
place (as shown).
Ensure all cables are
secured (as shown).
Attach Base Stand
SoundPoint IP 650 Quick Start Guide
1. Connect handset and headset, as shown below.
(Note: Headset is an optional accessory, and is not included with this package.)
Connect Cables
2. Connect network and power, as shown below.
Note: Choose either AC Power Option, or PoE (Power over Ethernet).
IEEE802.3af compliant
Hub/Switch
AC Power Option
PoE Option
Deskmount Method
Align base stand tabs
with their correspond-
ing insertion points on
the phone (as shown).
Snap base stand into
place (as shown).
Ensure all cables are
secured (as shown).
Attach Base Stand
SoundPoint IP 650 Quick Start Guide
1. Connect handset and headset, as shown below.
(Note: Headset is an optional accessory, and is not included with this package.)
Connect Cables
2. Connect network and power, as shown below.
Note: Choose either AC Power Option, or PoE (Power over Ethernet).
IEEE802.3af compliant
Hub/Switch
AC Power Option
PoE Option
Deskmount Method
Align base stand tabs
with their correspond-
ing insertion points on
the phone (as shown).
Snap base stand into
place (as shown).
Ensure all cables are
secured (as shown).
Attach Base Stand
SoundPoint IP 650 Quick Start Guide
1. Connect handset and headset, as shown below.
(Note: Headset is an optional accessory, and is not included with this package.)
Connect Cables
2. Connect network and power, as shown below.
Note: Choose either AC Power Option, or PoE (Power over Ethernet).
IEEE802.3af compliant
Hub/Switch
AC Power Option
PoE Option
Deskmount Method
Align base stand tabs
with their correspond-
ing insertion points on
the phone (as shown).
Snap base stand into
place (as shown).
Ensure all cables are
secured (as shown).
Attach Base Stand
AC Power Option
Attach Base Stand (Deskmount Method)
PoE Power Option
Note: Choose either AC Power Option, or PoE (Power over Ethernet)
IEEE802.3af compliant
PoE Hub/Switch/Midspan Unit
Ensure all cables
are secured.
Snap base stand into
place.
Align base stand tabs with
their corresponding insertion
points on the phone.

Polycom SoundPoint IP 550 Specifications

General

Full duplex	Yes
Camera included	No
Frequency range	150 - 7000 Hz
Base station keys	26 + 4
Channels quantity	2 channels
Dimensions (WxDxH)	265 x 150 x 190 mm
Networking features	DHCP/Static IP
Ethernet LAN (RJ-45) ports	2
Supported network protocols	FTP, TFTP, HTTP, HTTPS
Supported data transfer rates	10/100 Mbit/s
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	20 - 85 %
Power requirements	48V DC
Volume control	Digital
Voice codecs	G.722
Backlight color	-
Display resolution	320 x 160 pixels
Safety	UL/C-UL; CE Mark-1; EN 60950-1; IEC 60950-1; AS/NZS 60950
Certification	- FCC Part 15 (CFR 47) Class B - ICES-003 Class B - EN55022 Class B - CISPR22 Class B - AS/NZS CISPR 22 Class B - VCCI Class B - EN55024 - EN61000-3-2; EN61000-3-3 - ROHS - Anatel - GOST - C-tick - CCC
Compliance industry standards	IEEE 802.3af; IEEE 802.1p;IEEE 1329; RFC 1889

Weight and Dimensions

Weight	2045 g
