Polycom SoundPoint IP 560 Manual

AT&T Voice DNA 550 / 560
13

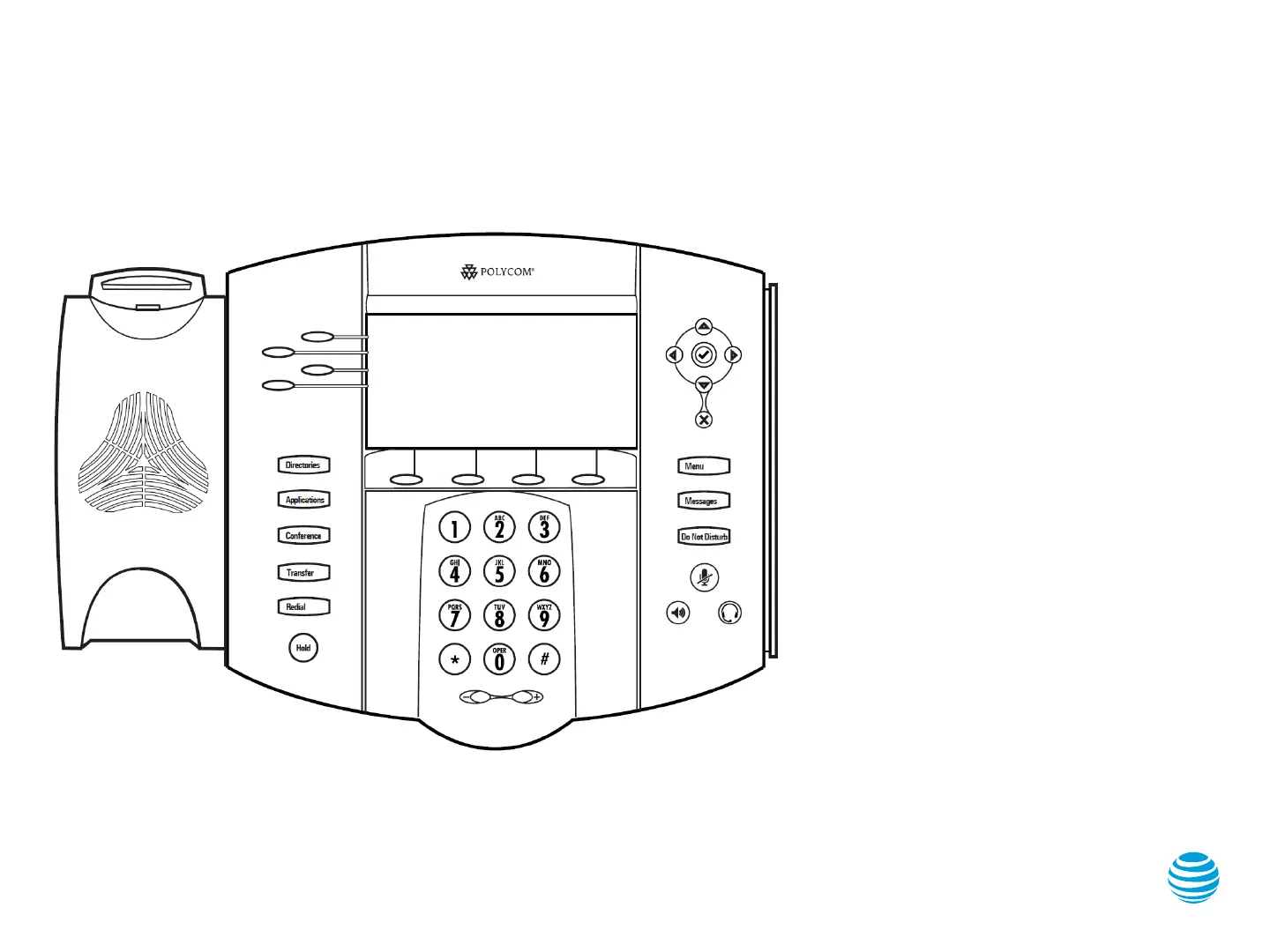

Line indicators
The line indicators will
change color
depending on the
event.
• Fast flashing green:
Incoming (ringing) call.
• Solid green: Active call is
in progress.
• Flashing red: Call is on
hold.
• Solid red: Shared line
busy (if applicable).

Polycom SoundPoint IP 560 Specifications

Display

display resolution	320 x 160 pixels
display type	backlit grayscale graphical LCD
LED backlight	custom intensity control

Power

power over ethernet	IEEE 802.3af
external power source	48V DC @ 380mA

Operating Environment

operating temperature	+10 to 40°C (+50 to 104°F)
operating relative humidity	20% to 85%, non-condensing
storage temperature	-40 to +70°C (-40 to +160°F)

Weight and Dimensions

dimensions	26.5 cm x 15 cm x 19 cm x 6.5 cm
phone weight	1.1 kg
unit box dimensions	12.5 in x 13.25 in x 3.5 in
unit box weight	1.8 kg
