Chapter 1 - Cables
© Polycom, Inc. 1 - 9

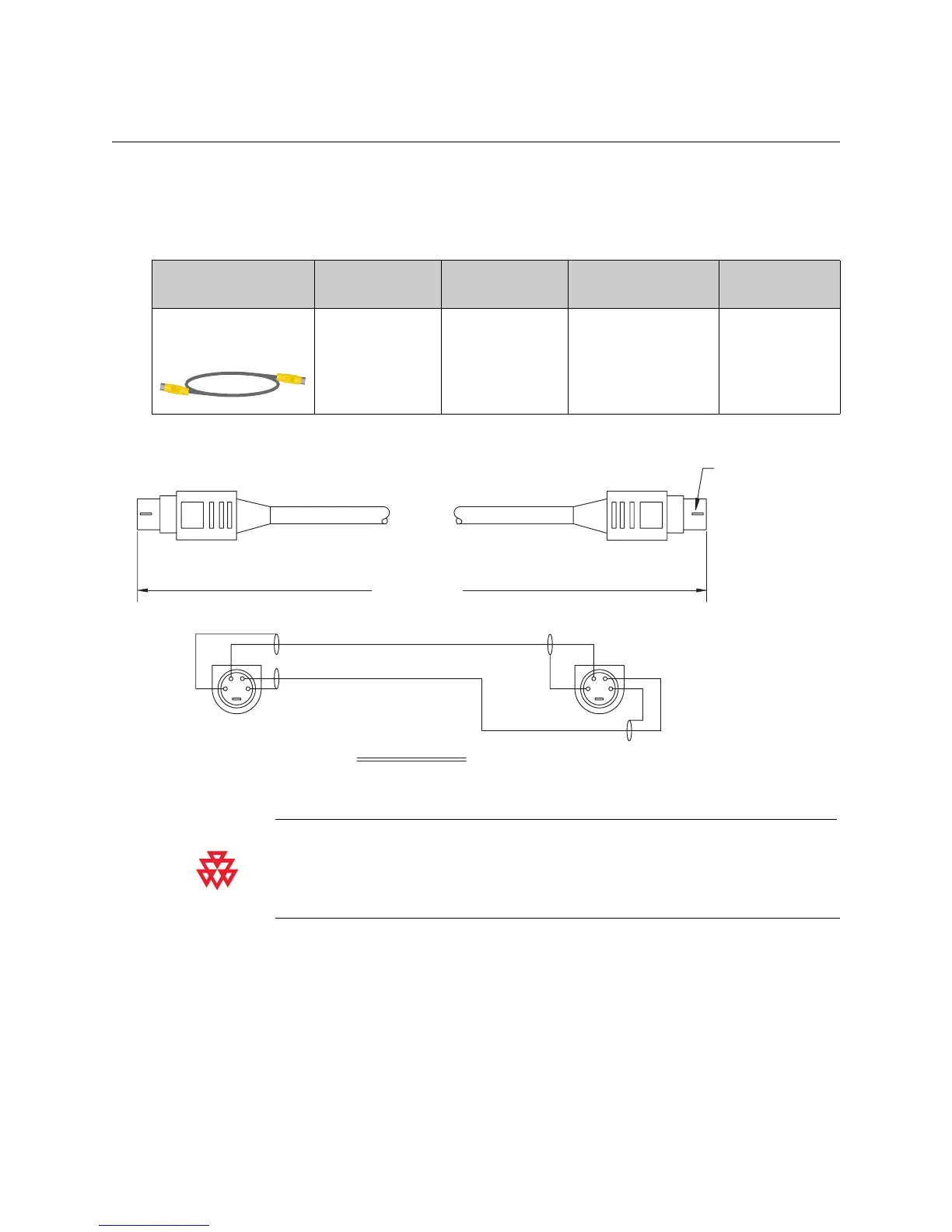

Video and Camera Cables
S-Video Cable
The S-video cable connects a VSX system to a monitor or camera.
This drawing is provided for design reference only. Polycom claims no responsibility or
liability for the quality, performance and/or reliability of cables based on this reference
drawing. Cables are available from Polycom that meet the appropriate manufacturing
tolerances, quality and performance parameters.
Description Used With Part Number Length Other Cables
Available
Yellow 4-pin mini-DIN
connectors on both
ends
VSX 3000
VSX 7000
VSX 8000 (may
require BNC
adapter)
2457-08409-001 Shipped Length: 25 ft
(7.6 m)
Maximum Approved
Length: 50 ft (15 m)
2457-09204-001
50 ft (15 m)
MINI-DIN MALE 4 POS. ( x2 )
WIRING DIAGRAM
P3 P4
P1 P2
25 FEET +/- 2"
P3 P4
P1 P2
To Next Page
