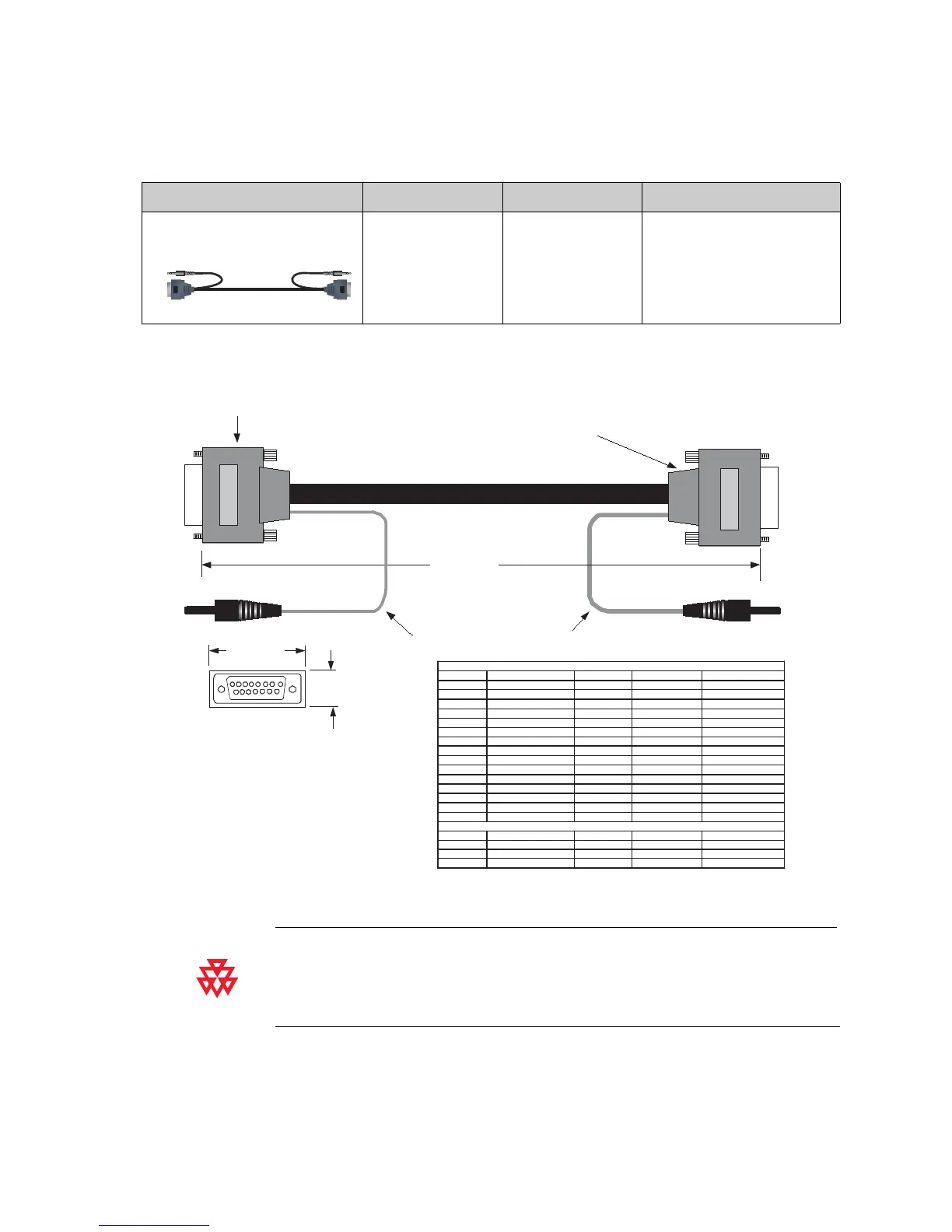

ImageShare II to PC Cable
This cable connects an ImageShare II to a PC.
This drawing is provided for design reference only. Polycom claims no responsibility or
liability for the quality, performance and/or reliability of cables based on this reference
drawing. Cables are available from Polycom that meet the appropriate manufacturing
tolerances, quality and performance parameters.
Description Used With Part Number Length
HD-15 and stereo jack
connectors on both ends
VSX 8000 185-0020-01 Shipped Length: 3 ft (0.9 m)
3.5mm phono plug
15 Pin High Density
D-Sub Connector
Female with
overmold
915 +/- 25 MM
wire length 610 +/- 13 MM
3.5mm phono plug
15 Pin High Density
D-Sub Connector
Male with overmold
wire length 153 +/- 8 MM
Laptop
connection
i-TOT
connection
(2X34.0)
(2X17.3)
END VIEW OF BOTH 15 PIN HD D-SUB CONNECTORS
WIRE TABLE
HD15 - M SIGNAL NAME HD15 -F WIRE TYPE WIRE COLOR
1 RED 1 A RED CENTER
2 GREEN 2 A GREEN CENTER
3 BLUE 3 A BLUE CENTER
4 TOT - DETECT 4 C ORANGE
5 GROUND 5 C GREEN
6 RED -SHIELD 6 A RED -SHIELD
7 GREEN -SHIELD 7 A GREEN -SHIELD
8 BLUE - SHIELD 8 A BLUE -SHIELD
9 N/C 9 N/C N/C
10 SYNC -RETURN 10 B BLACK -WHITE
11 N/C 11 N/C N/C
12 SDA 12 C BROWN
13 H- SYNC 13 B BLUE
14 V- SYNC 14 B RED
15 SCL 15 C YELLOW
3.5mm PLUG
TIP LEFT - AUDIO TIP A BLACK
RING RIGHT - AUDIO RING A WHITE
SLEEVE OUTER SHIELD SLEEVE A BLACK SHIELD
SLEEVE OUTER SHIELD SLEEVE A WHITE SHIELD
