Polycom VSX Series

© Polycom, Inc. 1 - 1
1
Cables
Network Cables

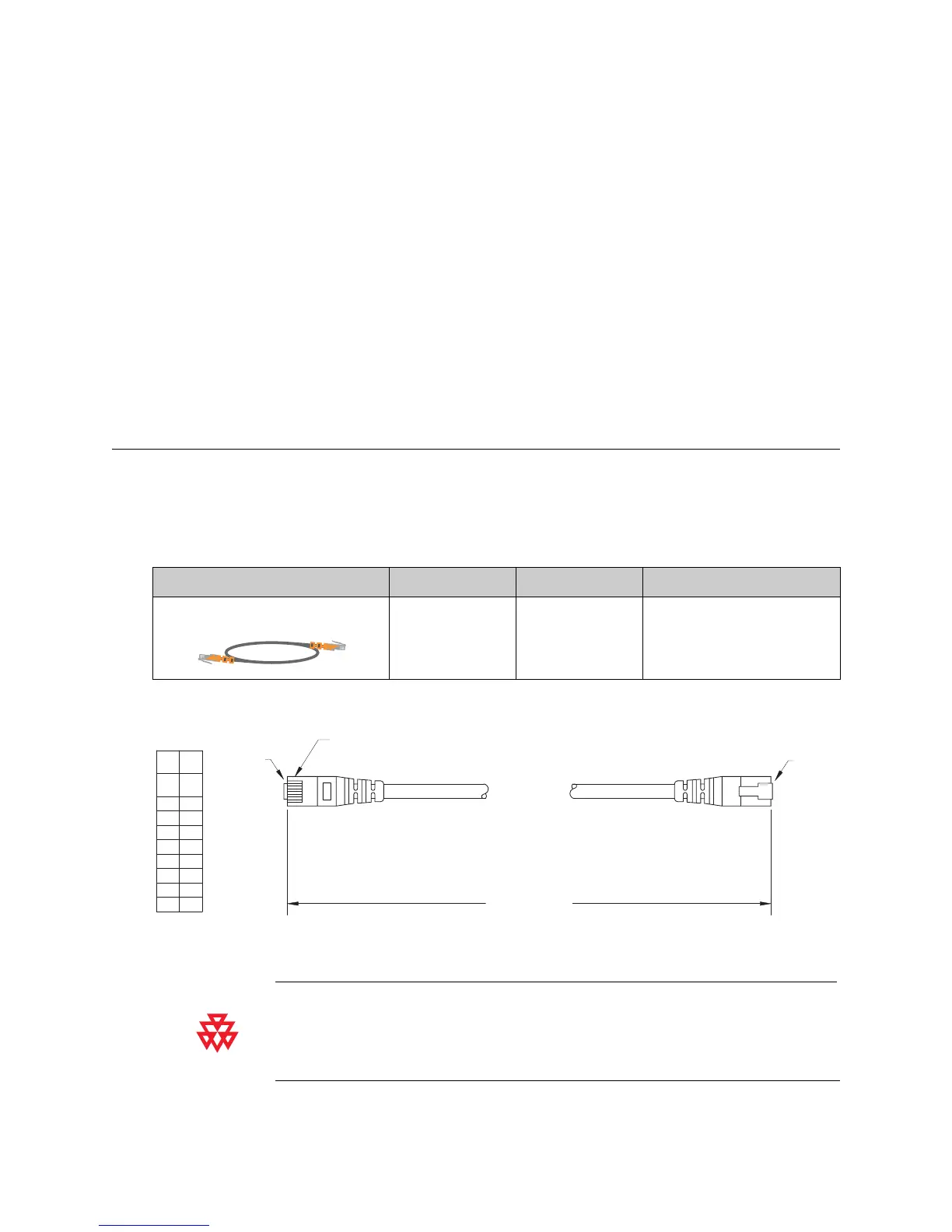

LAN Cable
This cable connects a VSX system to the LAN.
This drawing is provided for design reference only. Polycom claims no responsibility or
liability for the quality, performance and/or reliability of cables based on this reference
drawing. Cables are available from Polycom that meet the appropriate manufacturing
tolerances, quality and performance parameters.
Description Used With Part Number Length
Orange RJ-45 connectors on both
ends
VSX 3000
VSX 7000
VSX 8000
2457-08343-001 Shipped Length: 12 ft (3.6 m)
Maximum Approved Length:
100 ft (30 m)
CONN. RJ-45
( x2 )
12 FEET +/- 3"
P2
P1
PIN 8
PIN 8
11
22
33
44
55
66
77
88
PIN
#
PIN
#
P2P1
